JONARD | Mid Span Slitter (1.2 mm-3.3 mm) | #MS-6
JONARD TOOLS | PART #MS-6
Mid Span Slitter (1.2 mm-3.3 mm)
DESCRIPTION

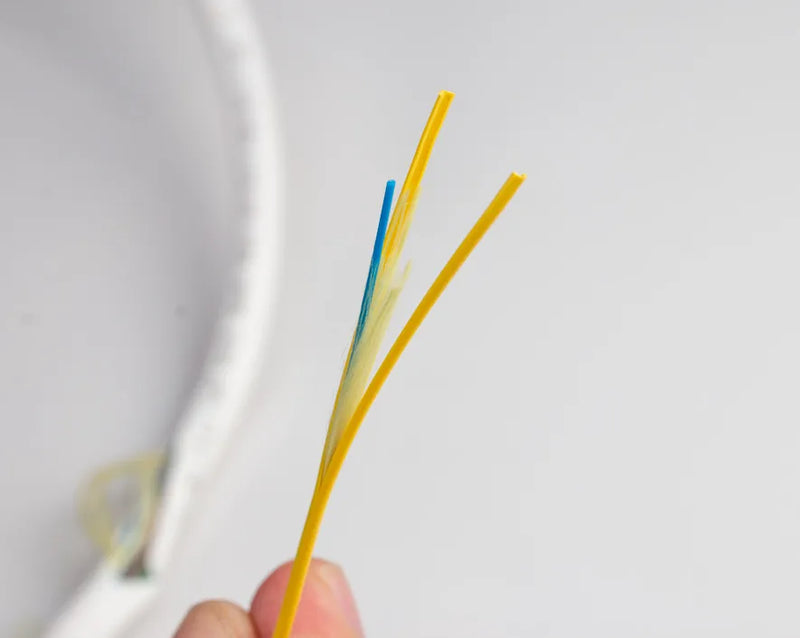

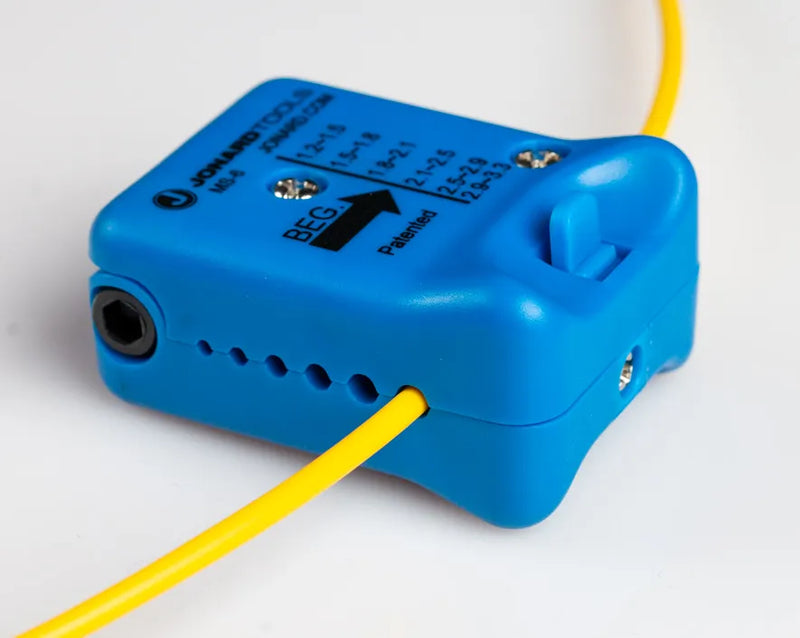

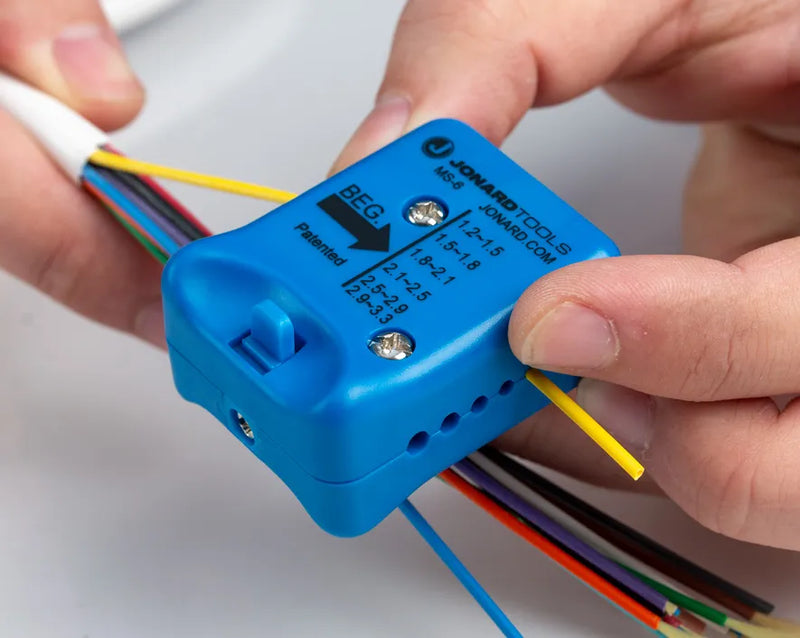

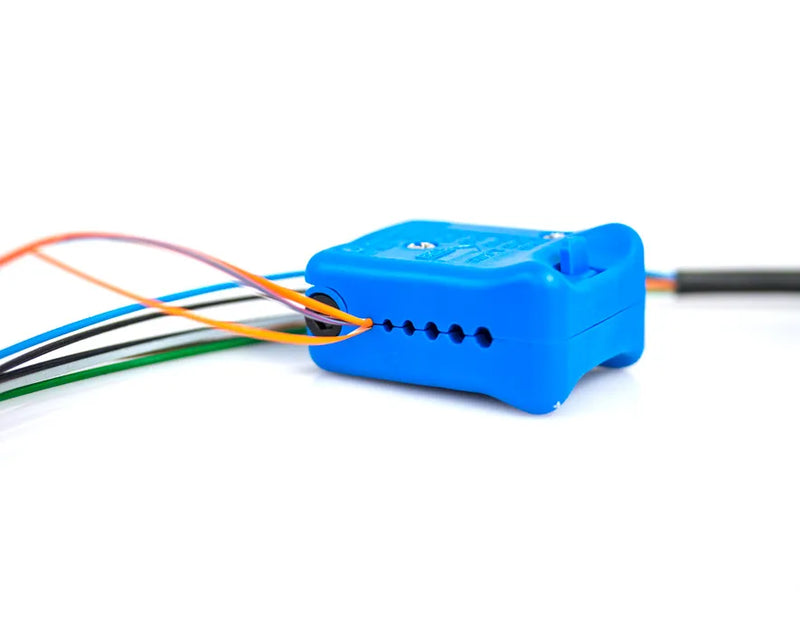

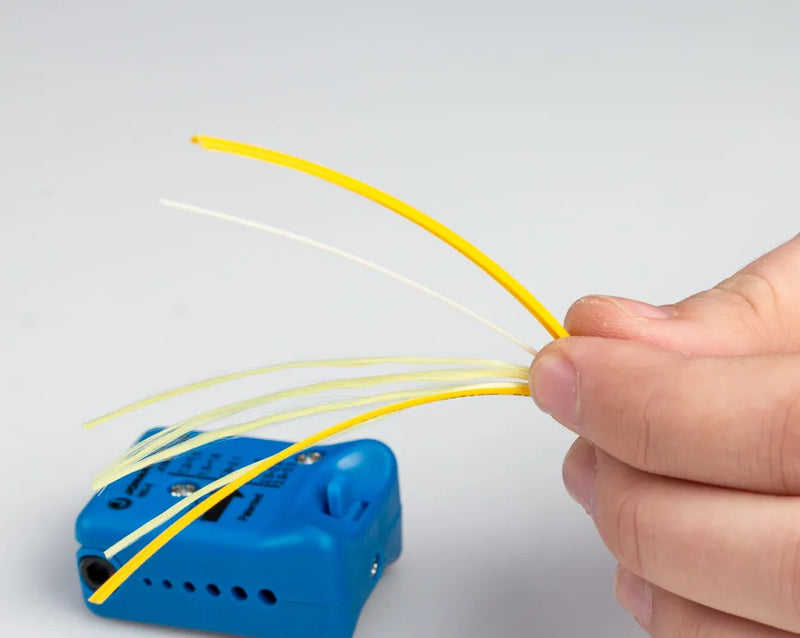

The PATENTED and AWARD-WINNING MS-6 Mid Span Slit Tool is designed to provide easy access to optical fibers in outer jackets and loose buffer tubes. With 6 precision grooves to handle various cable sizes, the sleek ergonomic design allows you to open a fiber jacket or buffer tube without damaging the fiber inside.

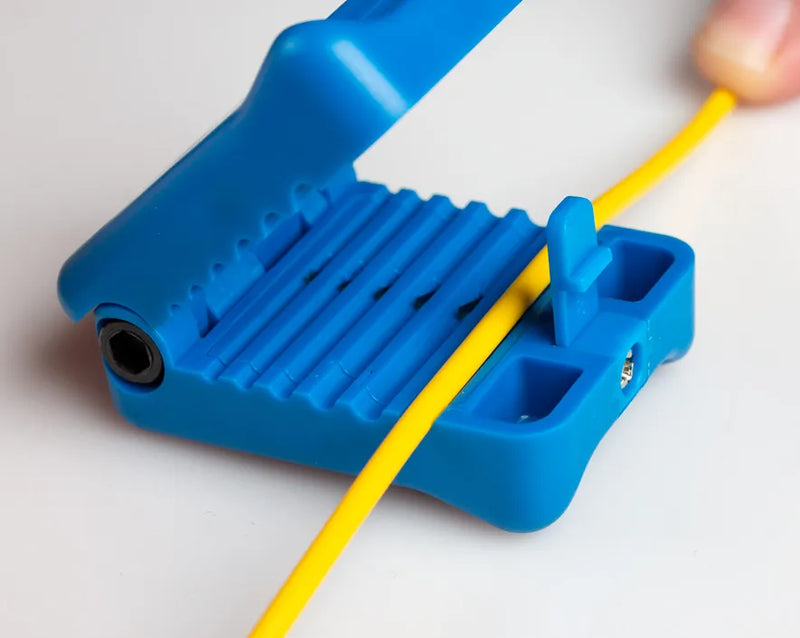

- Consists of 6 precision slitting grooves ranging in size from 1.2 mm to 3.3 mm
- Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go

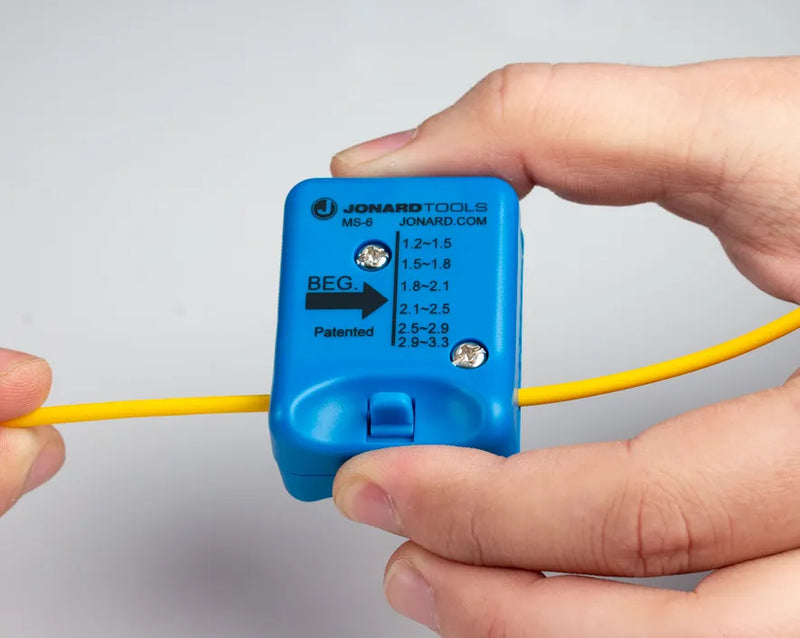

- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for use on:
- OFS EZ-Bend® 3.0 mm cable
Groove Sizes: 1.2-1.5 mm | 1.5-1.8 mm | 1.8-2.1 mm | 2.1-2.5 mm | 2.5-2.9 mm | 2.9-3.3 mm
Data Sheet - Mid Span Slit & Ring Tools
SPECIFICATIONS
| Cut Type |
Slit |
|---|---|
| Number of Slitting Grooves |
6 |
| Number of Ringing Grooves |
0 |
| Cable Type |
Outer Jackets, Loose Buffer Tubes |
| Cable Diameter |
1.2 mm-3.3 mm |
| Dimensions | 2 in x 0 in x 1 in (5.08 cm x 0 cm x 2.54 cm) |
| Weight | 0.09 lb (40.86 g) |
| UPC # | 811490016378 |
Common Questions About the Jonard MS-6 Mid Span Slitter
What is the Jonard MS-6 Mid Span Slitter used for?
The Jonard MS-6 Mid Span Slitter is used to access optical fibers by slitting outer jackets and loose buffer tubes without damaging the fiber inside.
Who is this mid span slitter designed for?
This tool is designed for fiber optic technicians and installers who work with loose tube and small diameter fiber cables in telecom and data network installations.
What makes the MS-6 different from other mid span tools?
The MS-6 features six precision sized slitting grooves, a compact ergonomic design, and patented blade technology that delivers accurate mid span access across multiple cable types.
At a Glance
• Mid span slitter for fiber jackets and loose buffer tubes
• Handles cable diameters from 1.2 mm to 3.3 mm
• Six precision grooves for controlled slitting
• Compact, lightweight design for tight spaces
