JONARD | Singlemode Fiber Optic Launch Cable, 350 m, SC/UPC-LC/UPC | #FLC-3501
JONARD TOOLS | PART #FLC-3501
Singlemode Fiber Optic Launch Cable, 350 m, SC/UPC-LC/UPC
DESCRIPTION
cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following: Compact housing and shoulder strap make this perfect for on-the-go use Terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility Polishing types are color coded for quick and easy identification of the launch cable Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks 1148 ft (350 m) length of fiber is perfect for most OTDR testing applications

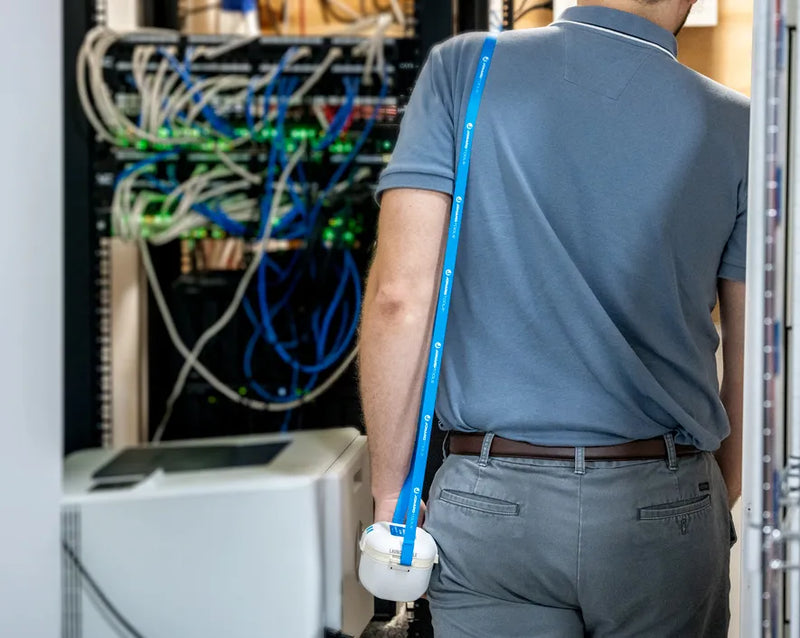

- Compact housing and shoulder strap make this perfect for on-the-go use
- Terminated with an SC/UPC connector on one side and an LC/UPC connector on the other side for versatility
- Polishing types are color coded for quick and easy identification of the launch cable

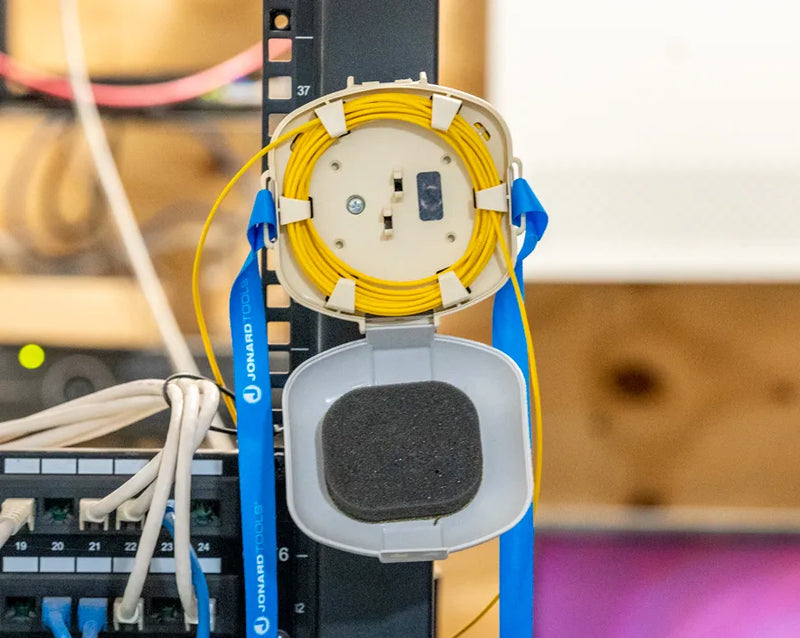

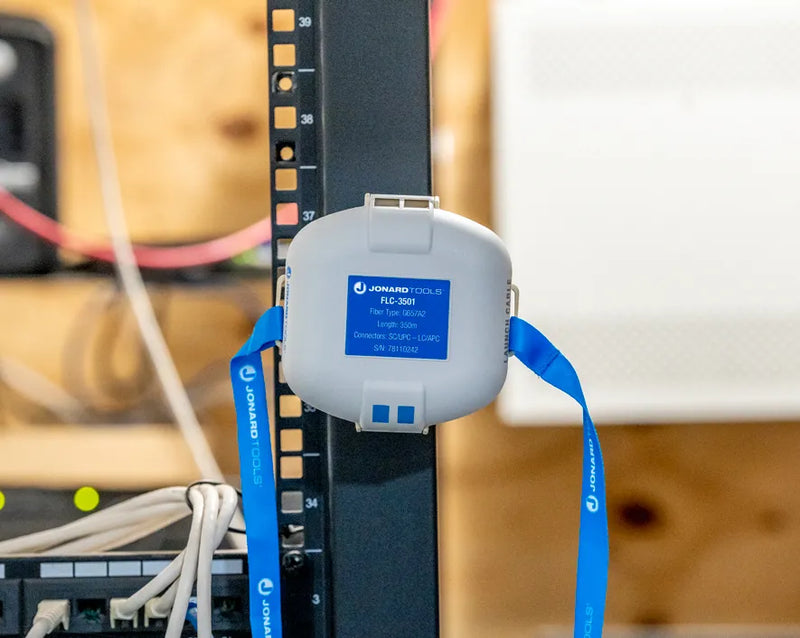

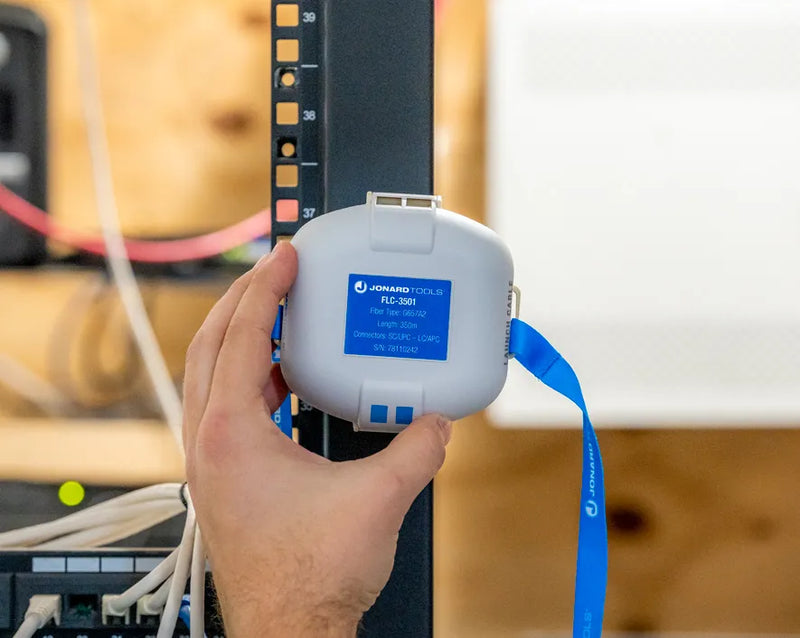

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 1148 ft (350 m) length of fiber is perfect for most OTDR testing applications
DOCUMENTS
FLC-1001 Singlemode Fiber Optic Launch Cable Datasheet
SPECIFICATIONS
| Cable Length |
1148.29 ft (350 m) |
|---|---|
| Connector Types |
SC/UPC, LC/UPC |
| Input/Output Length |
4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm |
≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm |
≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm |
≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm |
≤ 0.70 dB/km |
| SM Connector Insertion Loss |
≤ 0.1 dB |
| MM Connector Insertion Loss |
≤ 0.15 dB |
| Return Loss |
RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC) |
| Fiber Type |
G657A2 |
| Dimensions | 3 in x 3 in x 3 in (7.62 cm x 7.62 cm x 7.62 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 810053352298 |
Common Questions About the Singlemode Fiber Optic Launch Cable
What is the Singlemode Fiber Optic Launch Cable used for?

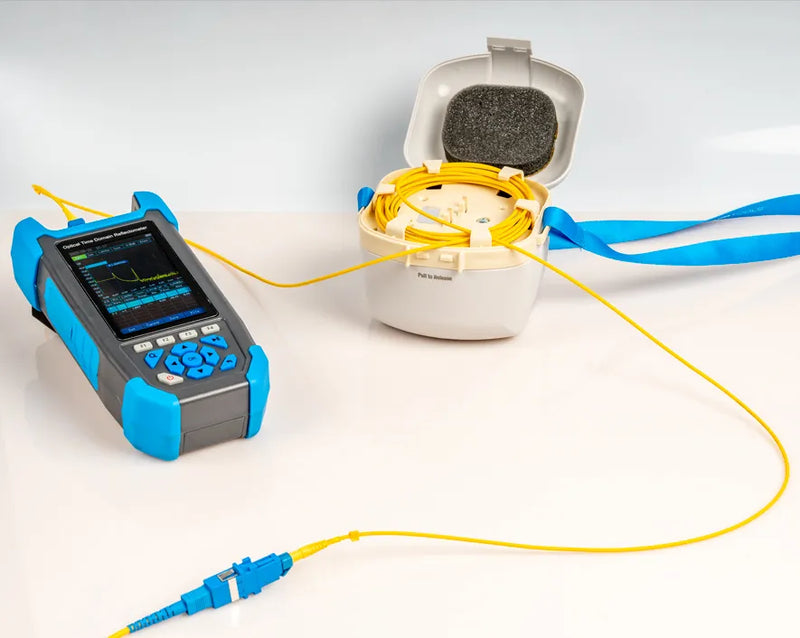

The Singlemode Fiber Optic Launch Cable is used with an OTDR to eliminate dead zones and allow accurate measurement of fiber links during reflectometric testing.
Who is this fiber optic launch cable designed for?
This launch cable is designed for fiber optic technicians, telecom installers, and network testing crews performing OTDR testing and fiber troubleshooting.
What makes this launch cable different from standard fiber jumpers?

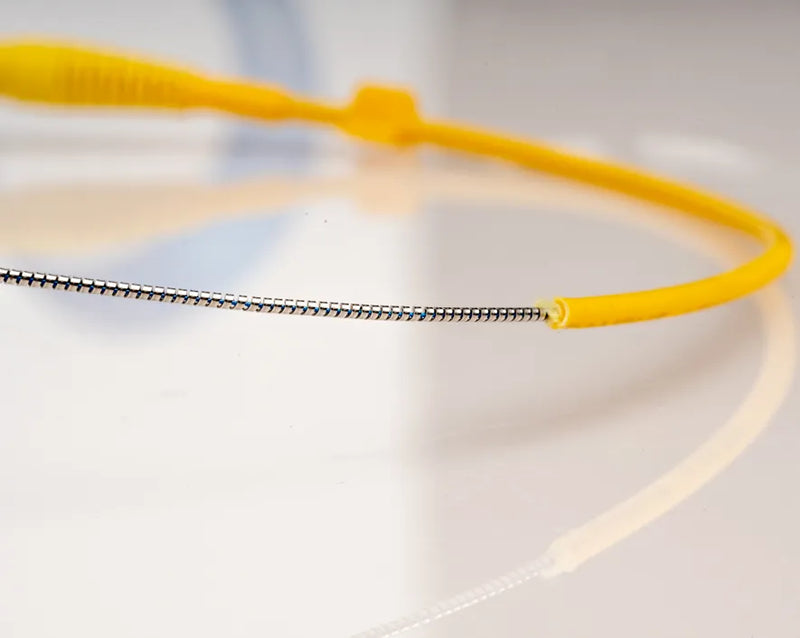

Unlike standard jumpers, this launch cable provides 350 meters of armored fiber with SC/UPC and LC/UPC connectors, allowing proper OTDR setup, dead zone elimination, and accurate test results.
At a Glance
• 350 meter singlemode launch cable for OTDR testing
• SC/UPC to LC/UPC connectors for flexible testing
• Armored fiber with compact, portable housing
• Helps eliminate OTDR dead zones for accurate results
