JONARD | Singlemode Fiber Optic Launch Cable, 20 m, SC/APC-SC/APC | #FLC-202
JONARD TOOLS | PART #FLC-202
Singlemode Fiber Optic Launch Cable, 20 m, SC/APC-SC/APC
DESCRIPTION

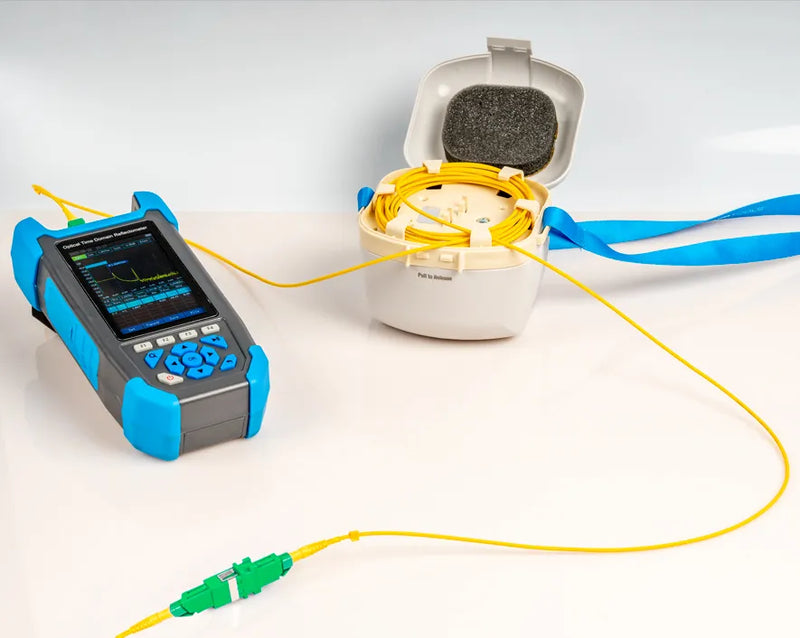

Designed with unique compact housing and 20 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following.

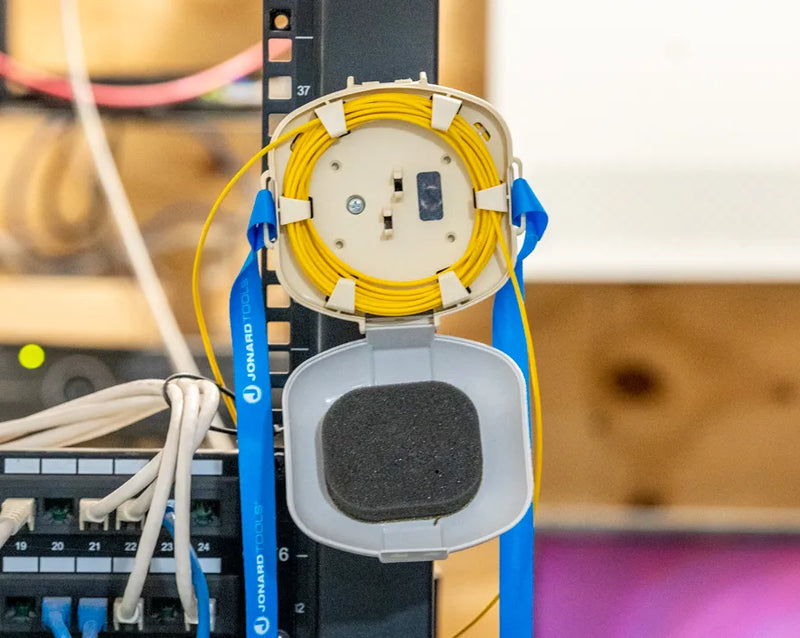

- Compact housing and shoulder strap make this perfect for on-the-go use
- Terminated with an SC/APC connector on one side and an SC/APC connector on the other side for versatility

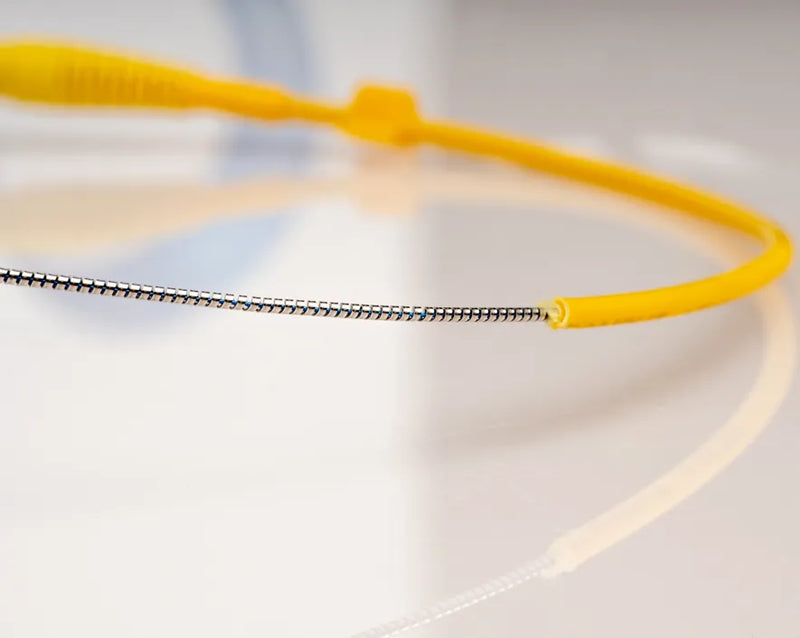

- Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
- Polishing types are color coded for quick and easy identification of the launch cable

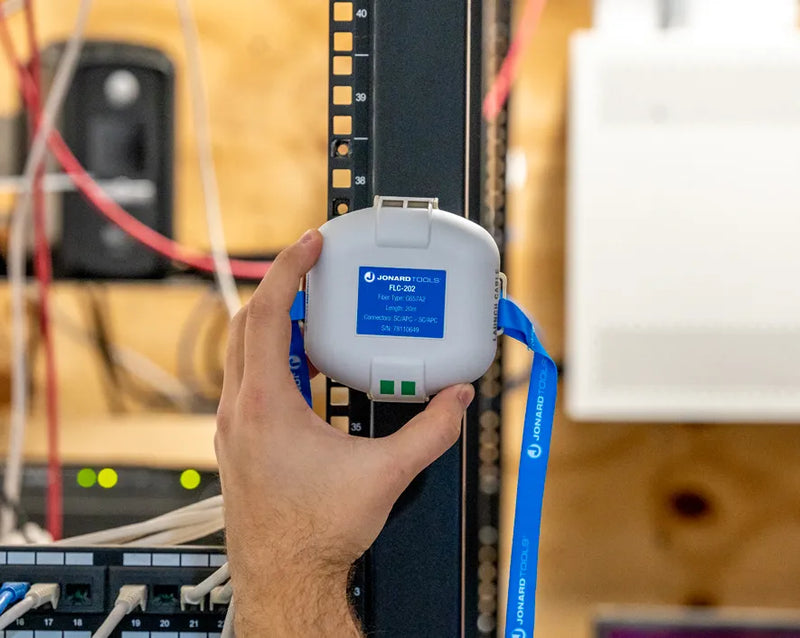

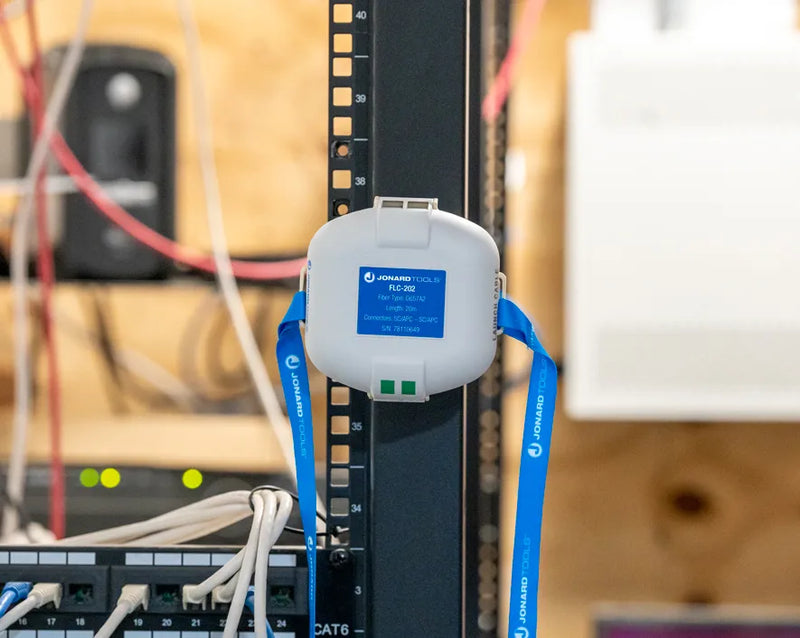

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 65.6 ft (20 m) length of fiber is perfect for most OTDR testing applications
Cable Length: 20 m
Connector Type:
Connector Type: SC/APC-SC/APC
DOCUMENTS
FLC-1001 Singlemode Fiber Optic Launch Cable Datasheet
SPECIFICATIONS
| Cable Length |
65.62 ft (20 m) |
|---|---|
| Connector Types |
SC/APC, SC/APC |
| Input/Output Length |
4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm |
≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm |
≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm |
≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm |
≤ 0.70 dB/km |
| SM Connector Insertion Loss |
≤ 0.1 dB |
| MM Connector Insertion Loss |
≤ 0.15 dB |
| Return Loss |
RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC) |
| Dimensions | 3.75 in x 3.75 in x 3.46 in (9.53 cm x 9.53 cm x 8.79 cm) |
| Weight | 0 lb (0 g) |
| UPC # | 810053352311 |
Common Questions About the Singlemode Fiber Optic Launch Cable
What is the Singlemode Fiber Optic Launch Cable used for?
The Singlemode Fiber Optic Launch Cable is used with an OTDR to eliminate dead zones and allow accurate measurement of short fiber links during reflectometric testing.
Who is this fiber optic launch cable designed for?
This launch cable is designed for fiber optic technicians, telecom installers, and network testing crews performing OTDR testing and fiber verification.
What makes this 20 meter launch cable different from longer launch cables?
This 20 meter launch cable is ideal for short link testing and close range OTDR measurements, offering armored protection and SC/APC connectors for low reflection testing.
At a Glance
• 20 meter singlemode launch cable for OTDR testing
• SC/APC to SC/APC connectors for low reflectance measurements
• Armored fiber in compact, portable housing
• Ideal for short fiber link and close range testing
