JONARD | Singlemode Fiber Optic Launch Cable, 1000 m, SC/UPC-LC/UPC | #FLC-1007

JONARD | Singlemode Fiber Optic Launch Cable, 1000 m, SC/UPC-LC/UPC | #FLC-1007

by Jonard
Sale Sale
$249.95
$249.95 - $249.95
$249.95
$237.45
$237.45 - $237.45
$237.45

JONARD TOOLS | PART #FLC-1007

Singlemode Fiber Optic Launch Cable, 1000 m, SC/UPC-LC/UPC

DESCRIPTION

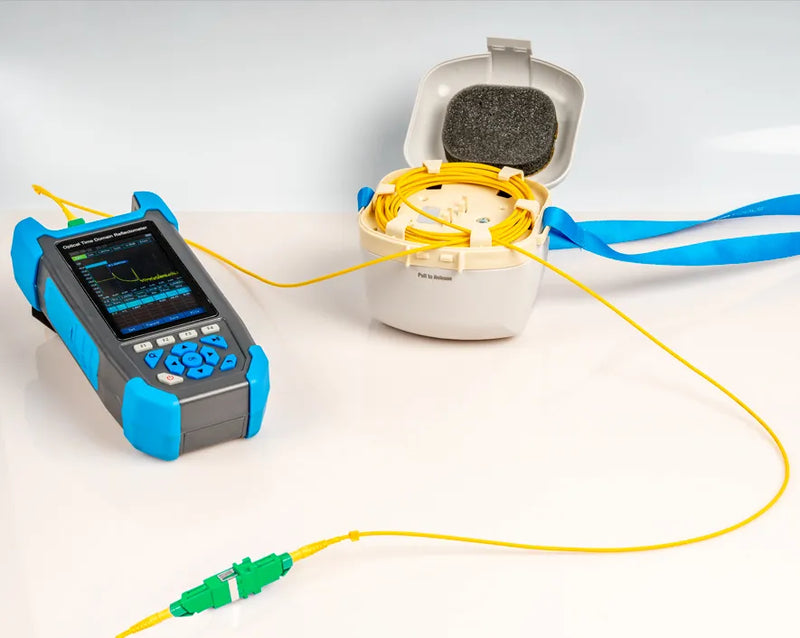

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following

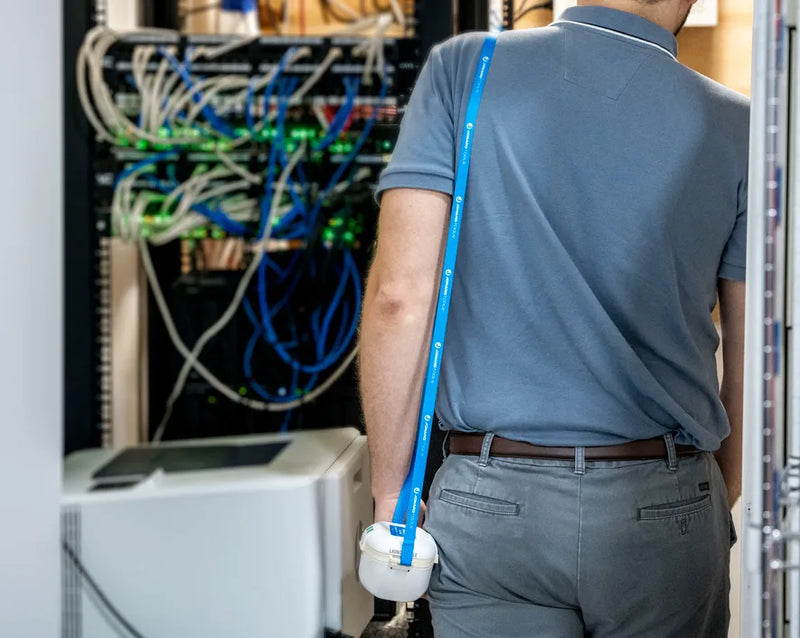

  • Compact housing and shoulder strap make this perfect for on-the-go use
  • 6.56 ft (2 m) long pigtails are terminated with an SC/APC connector on one side and an LC/APC connector on the other side for versatility
  • Polishing types are color coded for quick and easy identification of the launch cable

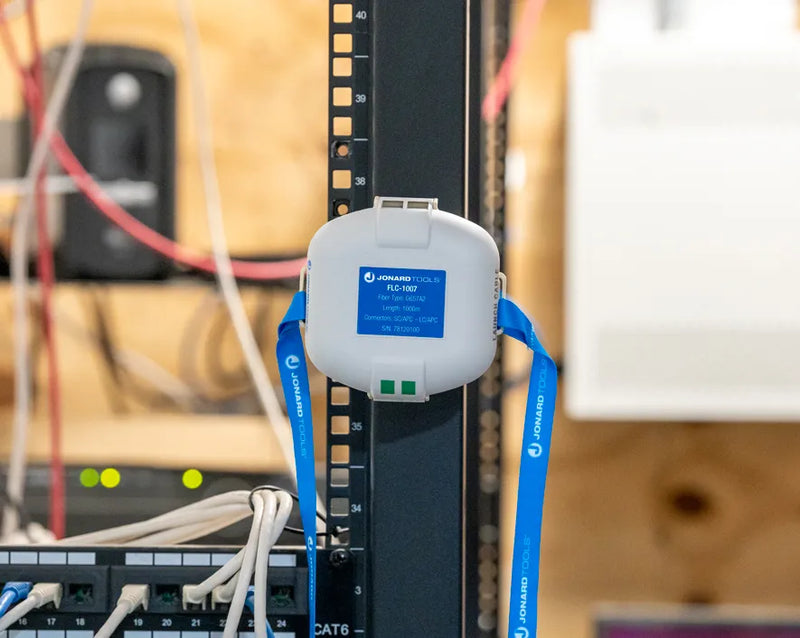

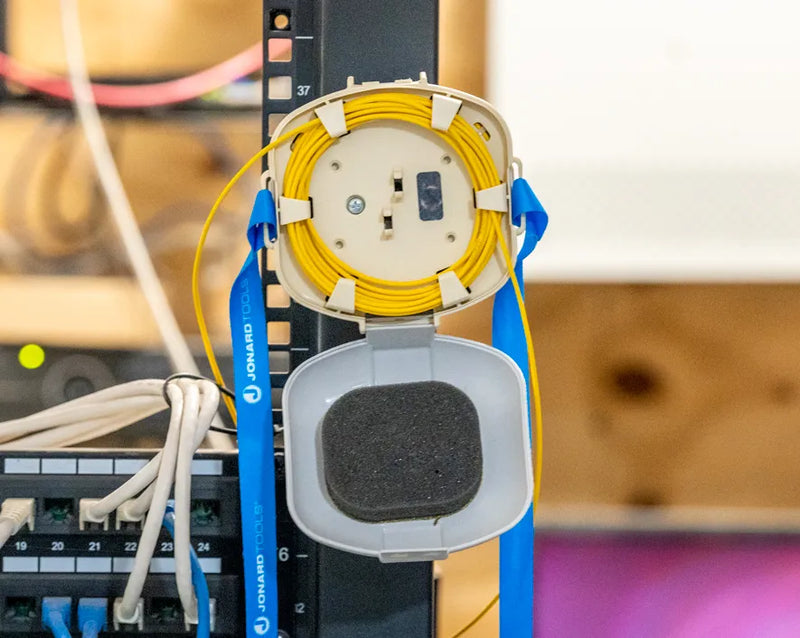

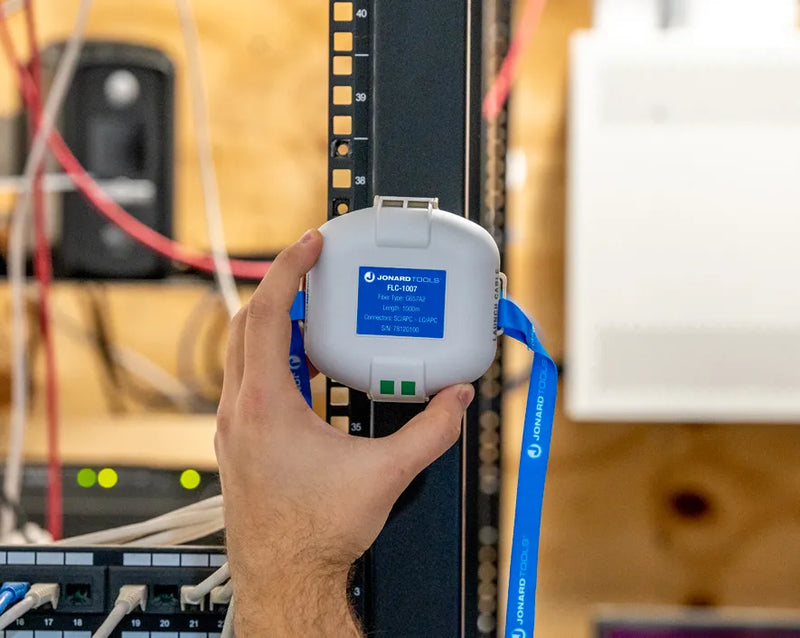

  • Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
  • 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications

Cable Length: 1000 m

Connector Type: SC/APC-LC/APC

    DOCUMENTS

    FLC-1001 Singlemode Fiber Optic Launch Cable Datasheet

    SPECIFICATIONS

    Cable Length

    3280.84 ft (1000 m)
    Connector Types

    SC/UPC, LC/APC
    Input/Output Length

    4.9 ft (1.5 m)
    Max Insertion Loss @ 1310 nm

    ≤ 0.35 dB/km
    Max Insertion Loss @ 1550 nm

    ≤ 0.22 dB/km
    Max Insertion Loss @ 800 nm

    ≤ 2.50 dB/km
    Max Insertion Loss @ 1300 nm

    ≤ 0.70 dB/km
    SM Connector Insertion Loss

    ≤ 0.1 dB
    MM Connector Insertion Loss

    ≤ 0.15 dB
    Return Loss

    ≥ 65 dB
    Weight 0 lb (0 g)
    UPC # 810053352397
