JONARD | Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/APC | #FLC-1006
JONARD TOOLS | PART #FLC-1006
Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-SC/APC
DESCRIPTION

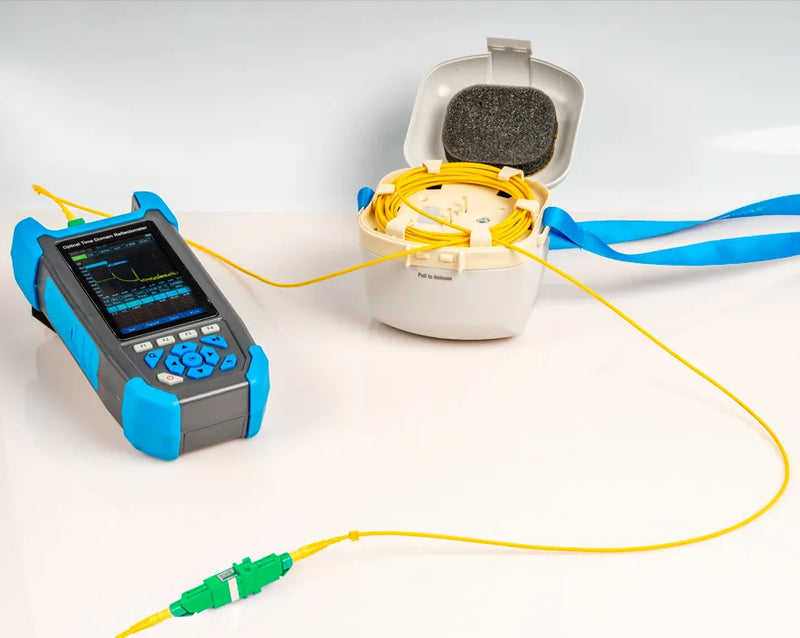

Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. This launch cable also features the following.

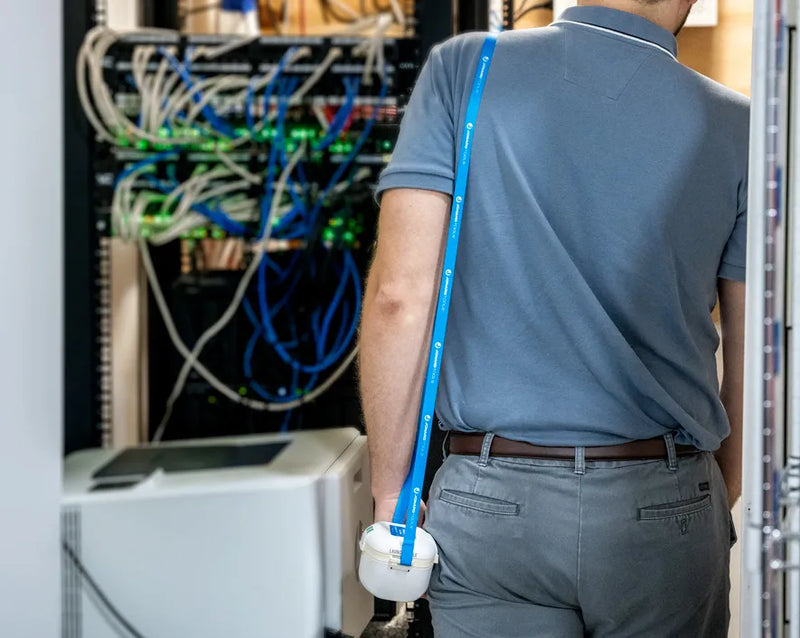

- Compact housing and shoulder strap make this perfect for on-the-go use
- Terminated with an SC/APC connectors for use on SC/APC ports

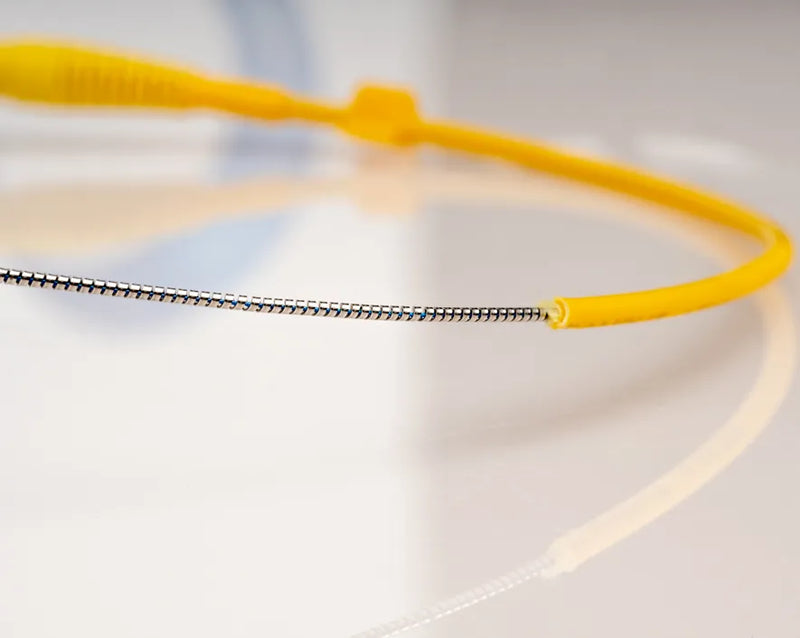

- Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
- Polishing types are color coded for quick and easy identification of the launch cable

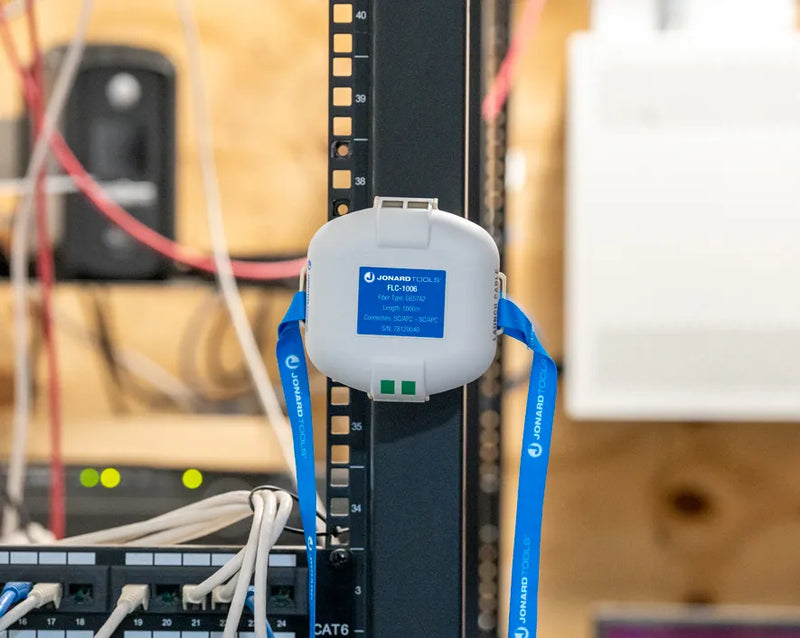

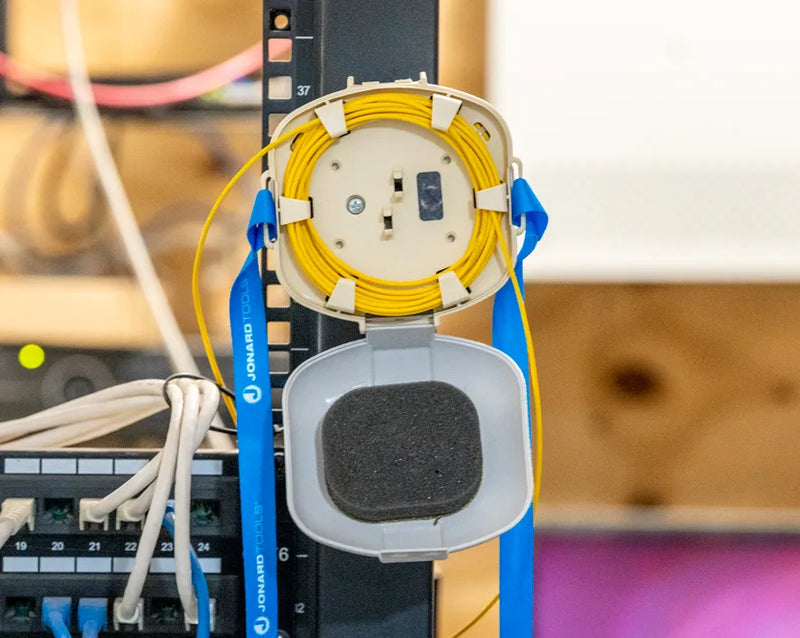

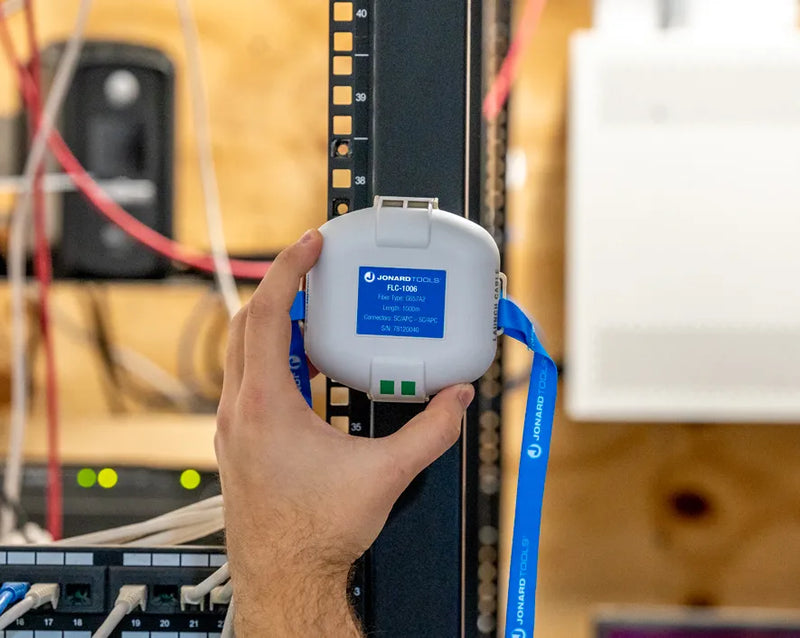

- Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
- 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Cable Length: 1000 m
Connector Type: SC/APC-SC/APC
DOCUMENTS
FLC-1001 Singlemode Fiber Optic Launch Cable Datasheet
SPECIFICATIONS
| Cable Length |
3280.84 ft (1000 m) |
|---|---|
| Connector Types |
SC/UPC, SC/APC |
| Input/Output Length |
4.9 ft (1.5 m) |
| Max Insertion Loss @ 1310 nm |
≤ 0.35 dB/km |
| Max Insertion Loss @ 1550 nm |
≤ 0.22 dB/km |
| Max Insertion Loss @ 800 nm |
≤ 2.50 dB/km |
| Max Insertion Loss @ 1300 nm |
≤ 0.70 dB/km |
| SM Connector Insertion Loss |
≤ 0.1 dB |
| MM Connector Insertion Loss |
≤ 0.15 dB |
| Return Loss |
≥ 65 dB |
| Weight | 0.78 lb (354.12 g) |
| UPC # | 810053352380 |
Common Questions About the Singlemode Fiber Optic Launch Cable
What is the Singlemode Fiber Optic Launch Cable used for?
The Singlemode Fiber Optic Launch Cable is used with an OTDR to eliminate dead zones and allow accurate measurement of long fiber links during reflectometric testing.
Who is this fiber optic launch cable designed for?
This launch cable is designed for fiber optic technicians, telecom installers, and network testing crews performing long distance OTDR testing and fiber analysis.
What makes this SC/APC to SC/APC launch cable ideal for OTDR testing?
This launch cable uses SC/APC connectors on both ends to minimize back reflection, making it ideal for high accuracy OTDR testing on APC equipped fiber networks.
At a Glance
• 1000 meter singlemode launch cable for OTDR testing
• SC/APC to SC/APC connectors for low reflectance measurements
• Armored fiber with compact, portable housing
• Ideal for long haul and extended fiber testing
