JONARD | Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters | #FPM-70
JONARD TOOLS | PART #FPM-70
Fiber Optic Power Meter with FC/SC/LC Adapters
DESCRIPTION
Measures both the absolute optical power and relative power loss in fiber optic cables. Power measurement range (+10 ~ -70 dBm) with FC/SC/LC Adapters.
- Measures a wide variety of wavelengths
- Determines absolute or relative power
- Intelligent backlit control reduces power consumption
- Auto-off function can be turned on or off
- Automatic wavelength detection function
- FC, SC, & FC-LC adapters included

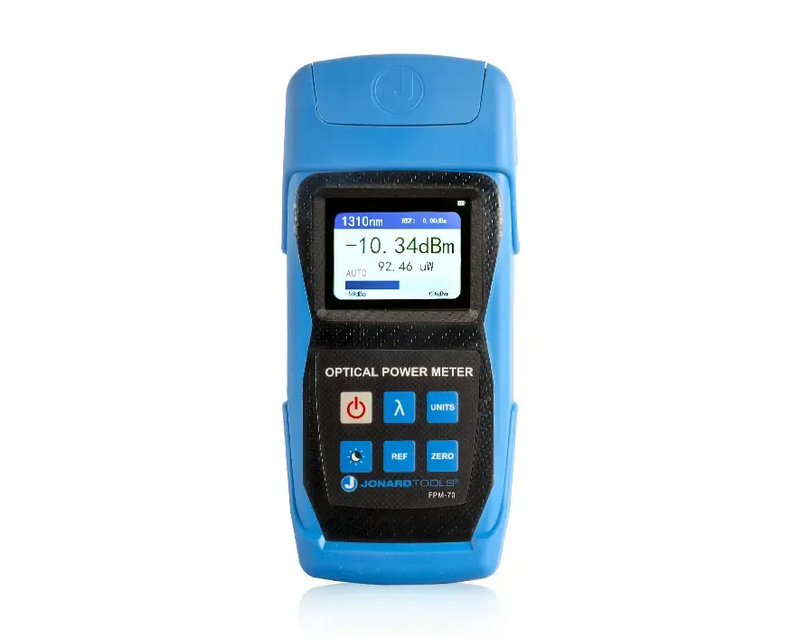

- Color LCD Display

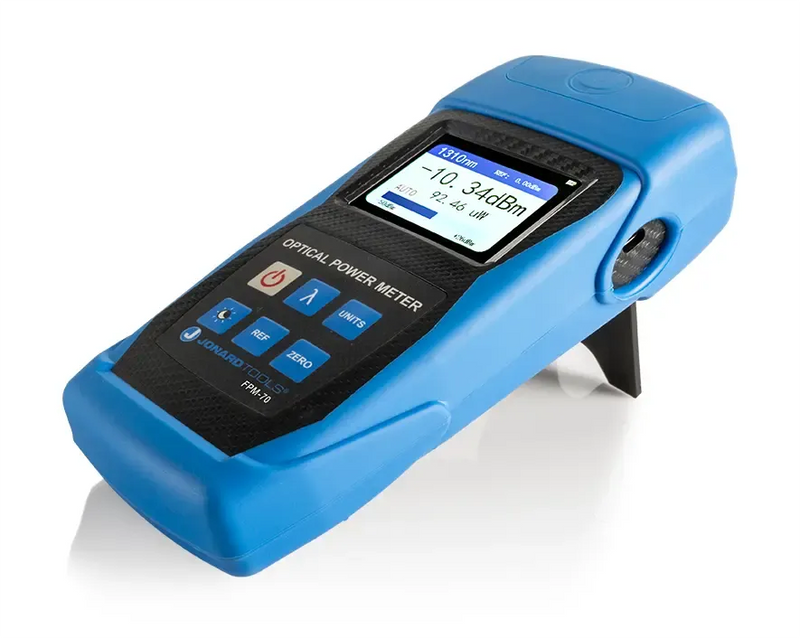

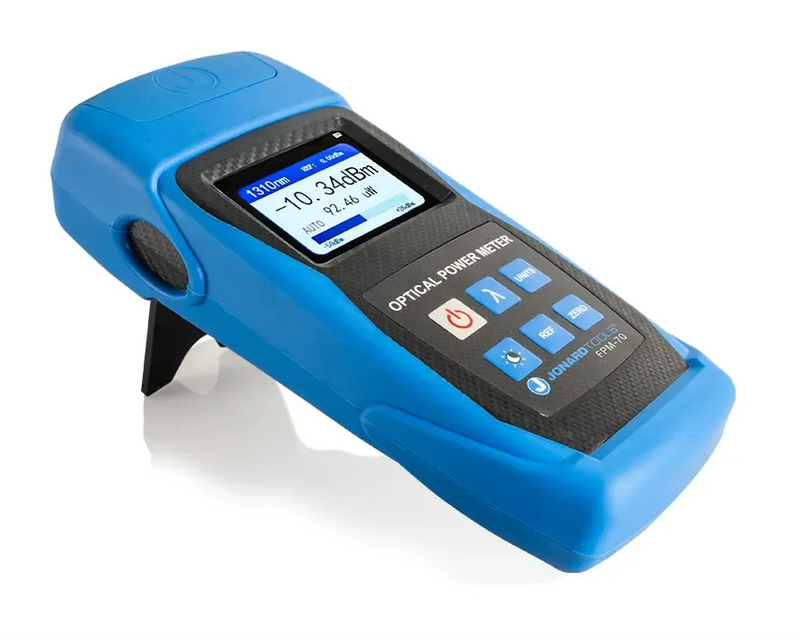

- Backside Kickstand

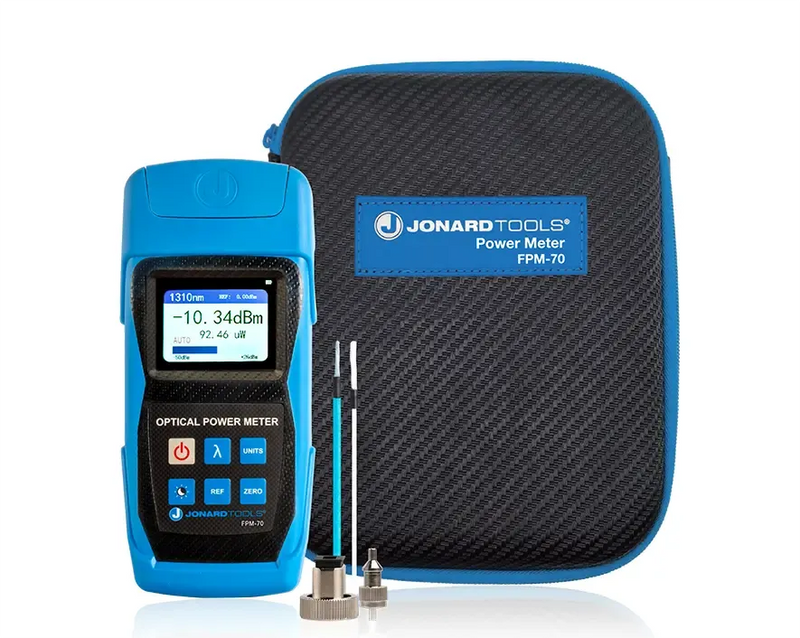

Includes:
- Fiber Optic Power Meter
- Instruction Manual
- (3) AA Batteries (required for operation)
- (2) Cleaning Swabs
- FC Adapter
- SC Adapter
- FC-LC Adapter (Singlemode Only)
- Protective Carrying Case
DOCUMENTS
FPM-70 Fiber Optic Power Meter Datasheet
SPECIFICATIONS
| Connector Types |
FC, SC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Calibrated Wavelengths (nm) |
850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| Detector Type |
InGaAs |
| Measurement Range |
-70 dBm to +6 dBm |
| Single Mode Range |
980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB |
| Multi Mode Range |
850, 1300 nm, ≤ ± 0.8 dB |
| Resolution |
0.01 dB |
| Operating Time |
≥ 130 hours |
| Battery Type |
(3) AA batteries |
| Dimensions |
7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm) |
| Weight | 1.5 lb (681 g) |
| UPC # | 810053350478 |
Common Questions About the Fiber Optic Power Meter
What is the Fiber Optic Power Meter used for?
The Fiber Optic Power Meter is used to measure absolute optical power and relative power loss in fiber optic cables, especially in long haul and long distance applications.
Who is this fiber optic power meter designed for?
This power meter is designed for fiber optic technicians, telecom installers, and network maintenance crews performing fiber testing, installation, and troubleshooting.
What makes this power meter suitable for long haul fiber testing?
This power meter offers a wide measurement range down to -70 dBm, supports multiple calibrated wavelengths, and includes FC, SC, and LC adapters for flexible testing across fiber networks.
At a Glance
• Measures optical power from -70 dBm to +6 dBm
• Supports multiple wavelengths from 800 nm to 1650 nm
• Includes FC, SC, and LC adapters for common connectors
• Backlit display with durable protective design
