JONARD | Hardline Coring & Stripping Tool .875" |#HSC-875

JONARD TOOLS | PART #HSC-875

DESCRIPTION

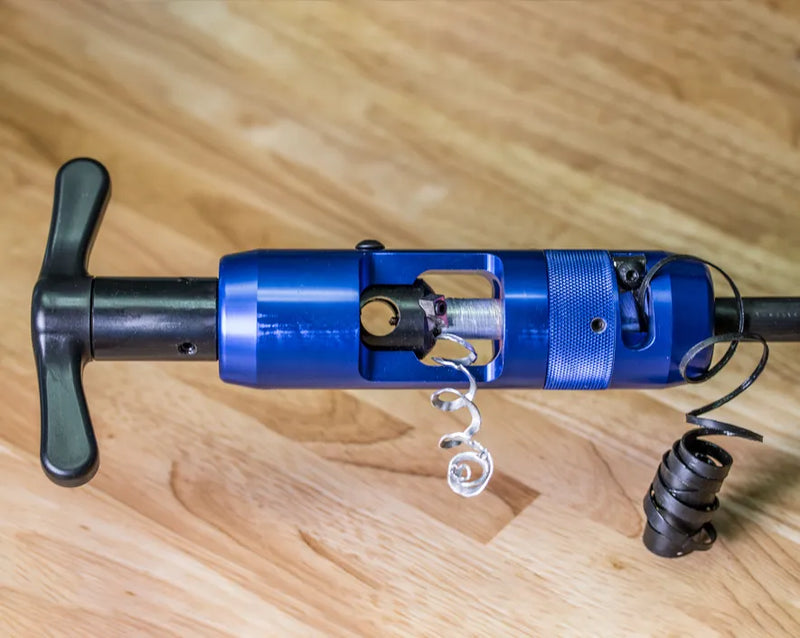

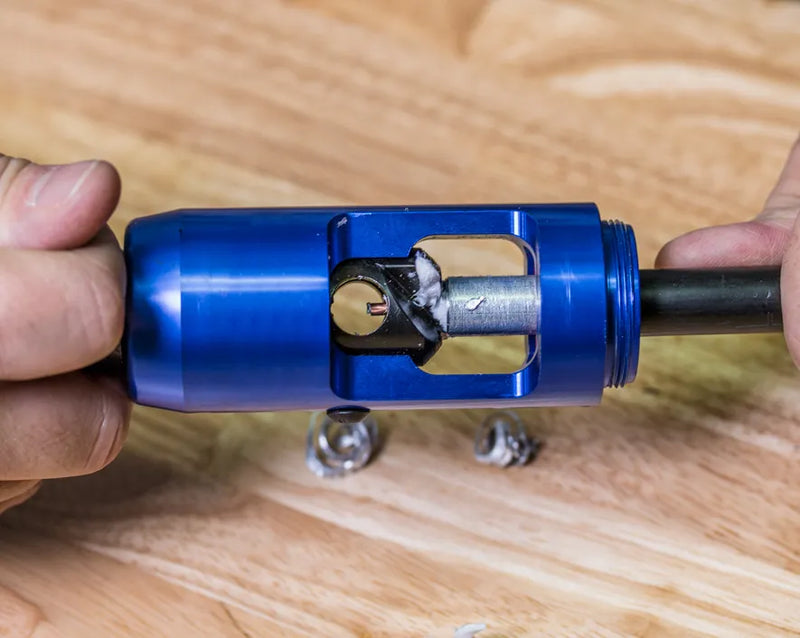

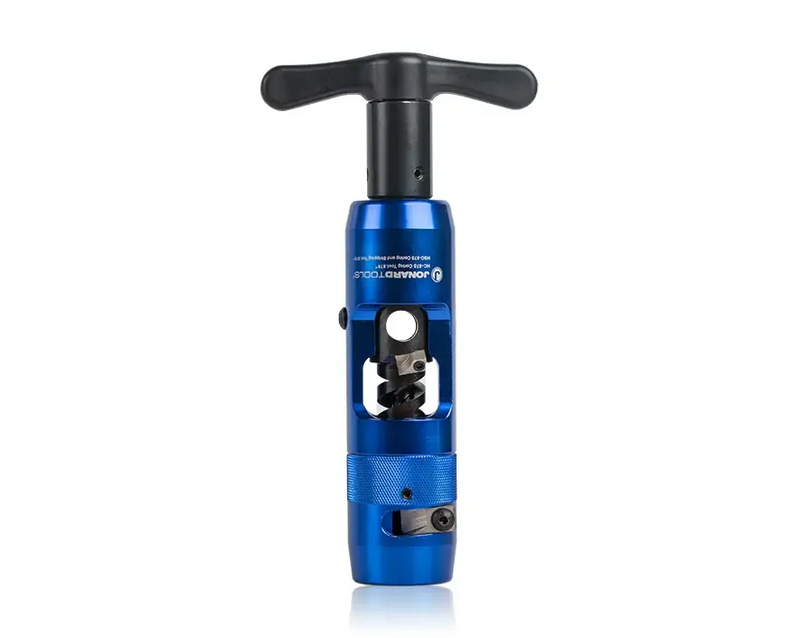

The HSC-875 hardline coring and stripping tool is designed to core and strip 875 Series COAX Cables (7/8”), such as the Times Fiber T10 and Commscope P3 cables. This coring and stripping tool features the following:

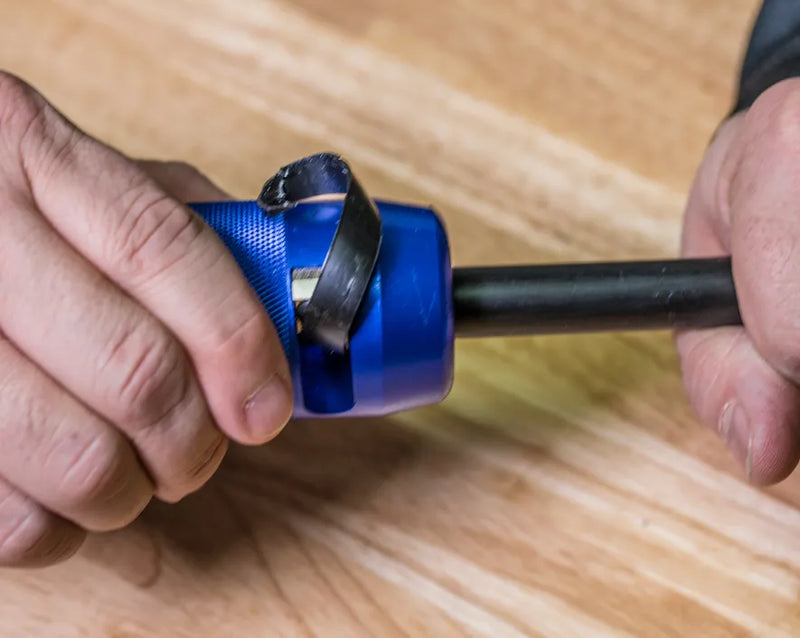

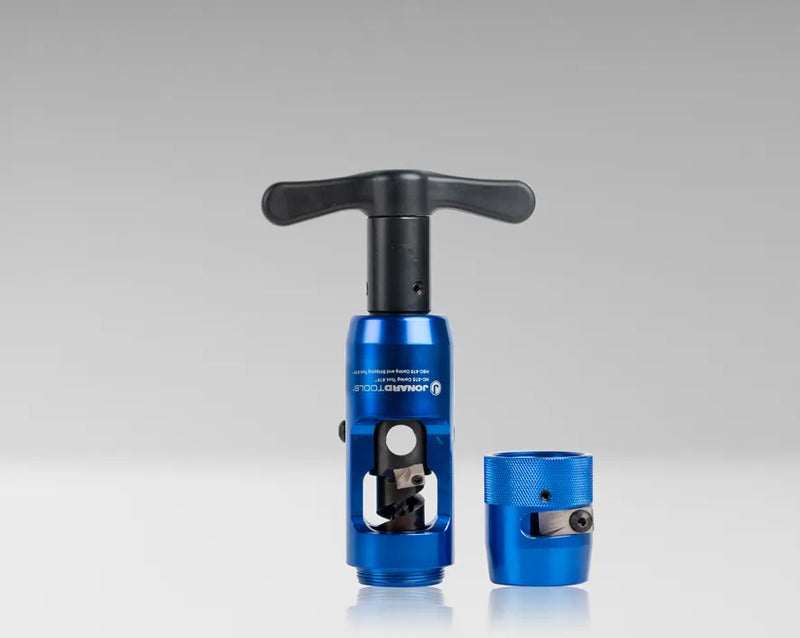

• Performs both coring and stripping all in one tool, stripper can be easily removed to help deal with flooded cables
• Heavy duty aluminum body with stripping and coring blades made of high carbon steel and heat treated for long life
• T handle is a ratcheting handle for increased comfort and faster coring and the tool can perform both coring and stripping simultaneously, T handle can also be removed allowing the user to attach a drill to make coring even easier
• Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
• Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings

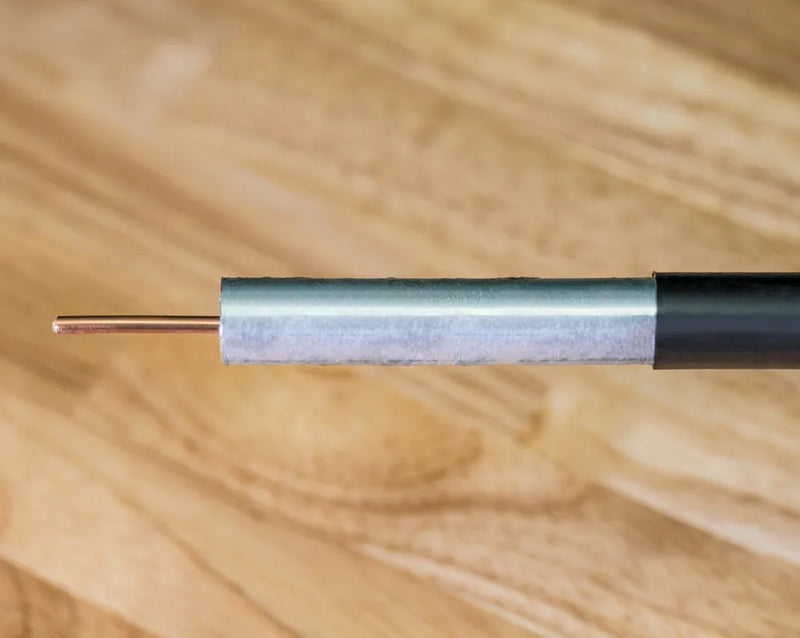

• The tool bevels the outer conductor, chamfers the center conductor, and opens to a center conductor length of 1”
• Center conductor length is adjustable from 1/2" to 1 1/4"
• Total core and strip length is 3.50”

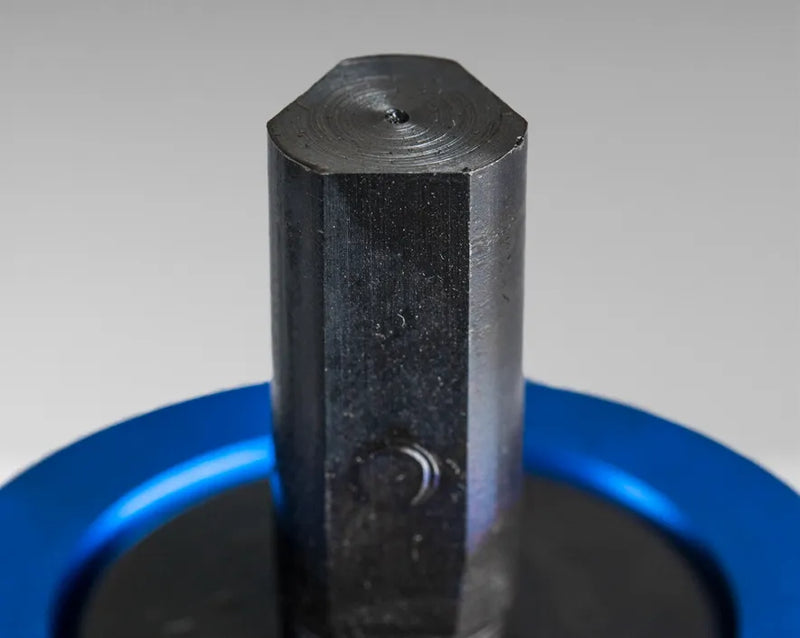

• The coring bit, coring blade, and jacket stripping blade are made from hardened steel for long life
• Includes hex keys for replacing stripping blades and removing the T handle and an instruction manual

Cable Size: .875" (22.23 mm)

DOCUMENTS

Hardline Coring & Stripping Tool Datasheet

SPECIFICATIONS
