JONARD | Fiber Connector Cleaner, MPO | #FCC-120
JONARD TOOLS | PART #FCC-120
Fiber Connector Cleaner, MPO
DESCRIPTION

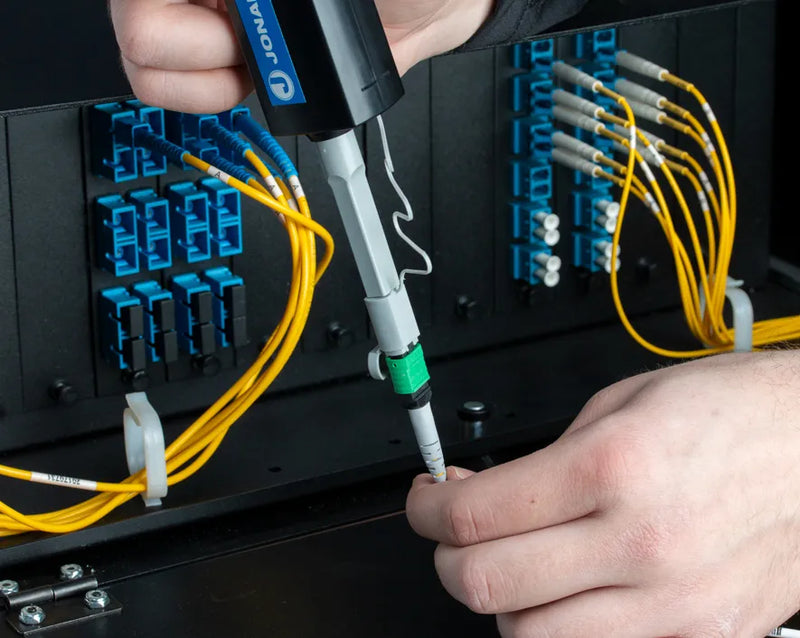

The FCC-120 Fiber Connector Cleaner removes dust, oil, and debris from MPO-12 connectors and ferrules in both accessible ports and recessed adapters. Its extendable nose adapts to varied port depths, making it the right tool for routine, high-frequency cleaning across data centers, enterprise IT environments, and structured cabling networks.
- Compatible with MPO 12 connectors, both UPC & APC polish types, and male (pinned) & female (unpinned) pin configurations.
- One-push operation provides consistent cleaning for more than 500 cleaning cycles.

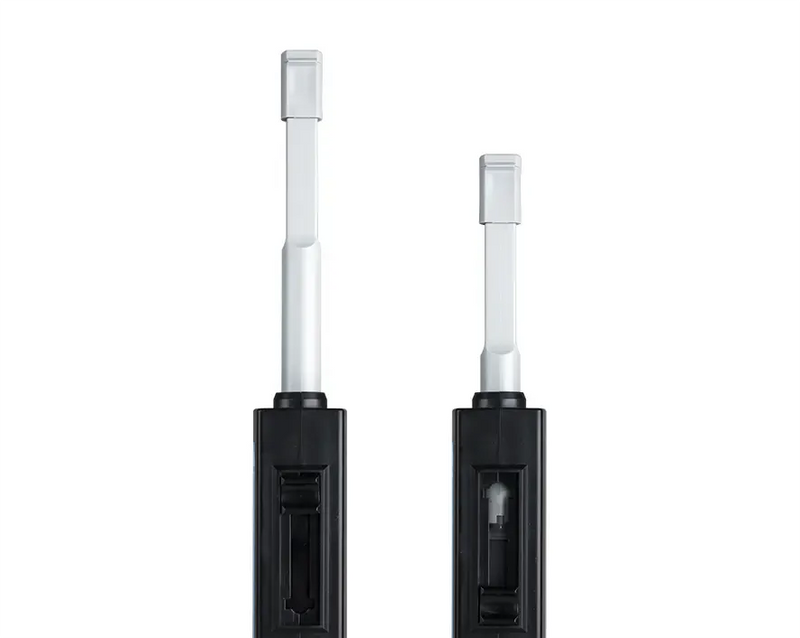

- Nose extends up to 4" to allow for access to recessed adapters and tight spaces in high-density fiber panels.

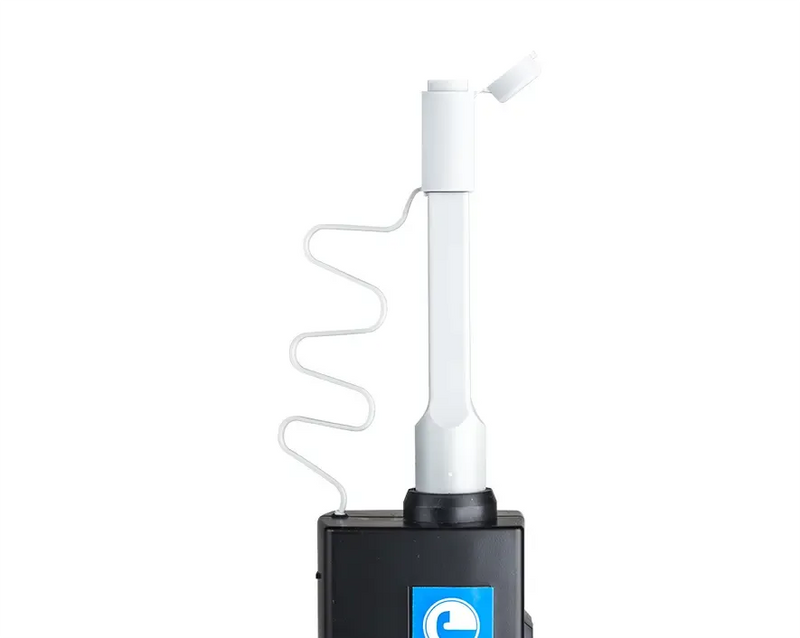

- Flip-open adapter cap with tether for secure switching between plug and port cleaning.

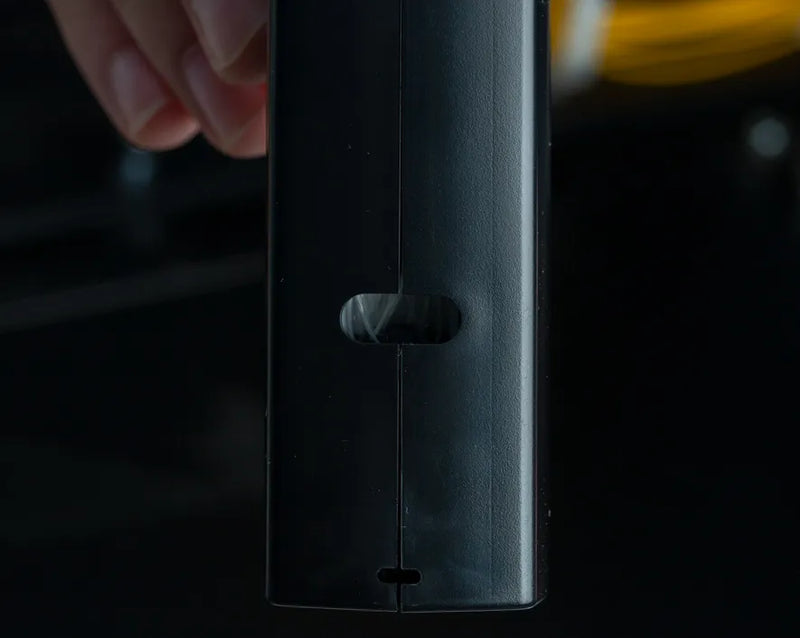

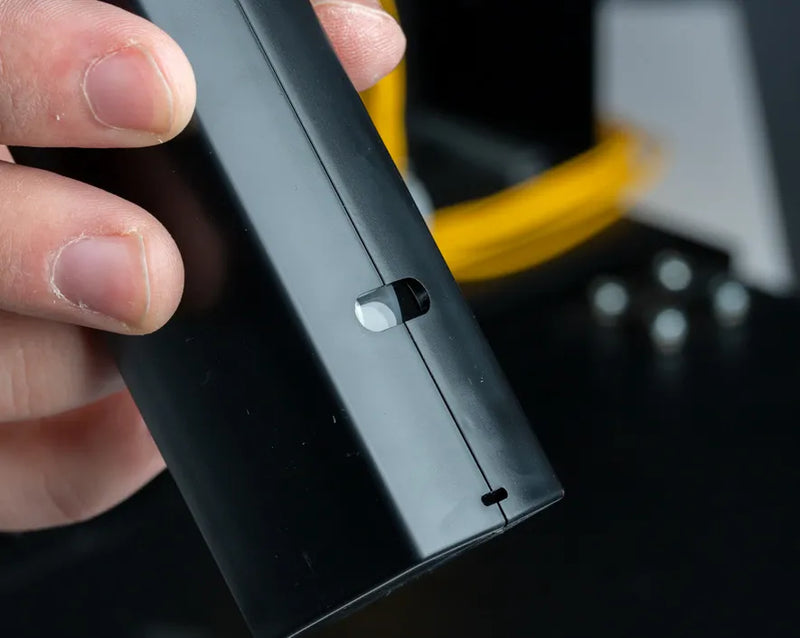

- Slide-Guide™ tape system with viewing window ensures smooth tape advance and easy capacity monitoring.
- Rugged housing rated crush-resistant up to 250N and impact-resistant up to 1.5m drop; ESD-safe microfiber cloth and housing meets IEC 61300-3-35, Telcordia, and iNEMI standards
- Limited Warranty
SPECIFICATIONS
| Fiber Type/Application |
Multi-Fiber, Simplex |
|---|---|
| Connector Type |
MPO: 12, 24 (12x2) |
| Polish Type |
PC, UPC, APC |
| Pin Configuration |
Male (with pins) or Female (no pins) |
| Number of Cleans |
500+ |
| Cleaning Motion |
180°, Push Forward |
| Guide Type |
Extendable |
| Cleaning Depth |
Retracted: 2.625" (66.67 mm) Extended: 4" (101.6 mm) |
| Standards |
Cleaning: IEC 61300-3-35, Telcordia GR-2923-CORE, iNEMI,Cisco EDCS 7027180 Crush Resistant: over 250N Impact Resistant: 1.5M |
| Cleaning Fabric |
Static-Free Micro Fiber |
| Dimensions | 9 in x 1 in x 1 in (22.86 cm x 2.54 cm x 2.54 cm) |
| Weight | 0.18 lb (81.65 g) |
| UPC # | 811490017252 |
Common Questions About the FCC 120 MPO Fiber Connector Cleaner
What is the FCC 120 Fiber Connector Cleaner used for?
The FCC 120 is used to clean individual MPO connectors or ferrules in recessed fiber optic adapters efficiently and safely.
Who is this MPO fiber connector cleaner designed for?
This tool is ideal for fiber optic technicians, splicers, and installers who need reliable, ESD-safe cleaning for MPO connectors in FTTH, data centers, broadcasting, and other high-performance fiber applications.
What makes the FCC 120 different from standard connector cleaners?
The FCC 120 features a patented 360° rotational tip, Slide-Guide™ non-slip micro tape feeder, flip-open cap, dual rotation with one-push operation, over 500 cleanings per device, visual usage indicator, and meets industry standards (Telcordia GR-2923-CORE, iNEMI, IEC 61300-3-35, Cisco EDCS 7027180).
At a Glance
• MPO fiber connector cleaner for individual ferrules
• Patented 360° rotational tip with Slide-Guide™ tape feeder
• Flip-open cap, dual rotation, one-push operation
• ESD-safe, 500+ cleanings, visual usage indicator
