JONARD | Fiber Cleaver | #FC-220
JONARD TOOLS | PART #FC-220
Fiber Cleaver
DESCRIPTION

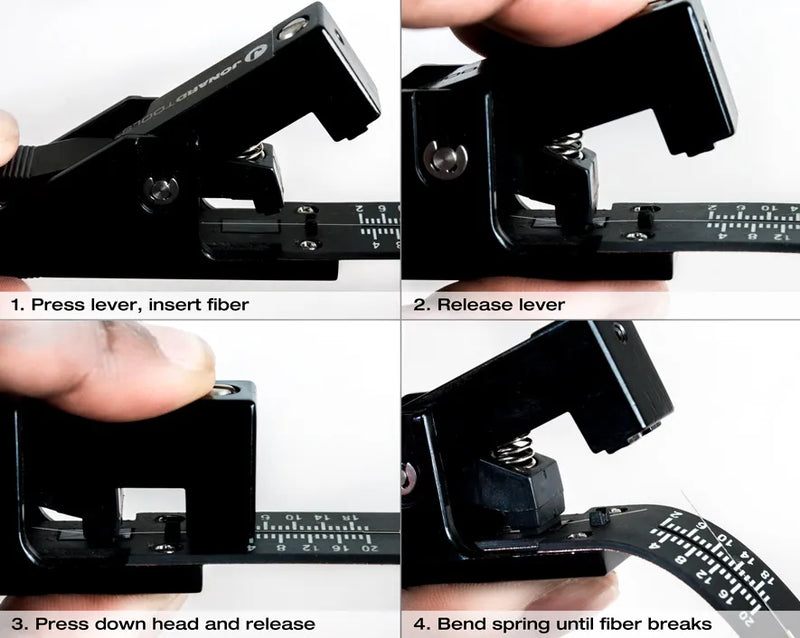

Designed to cleave either 900 µm buffered or 250 µm coated fiber, this fiber cleaver’s quick and easy three step operation is perfectly suited for mechanical splicing and quick field termination of fiber connectors. This fiber cleaver features the following.
- Leaf spring scale is ruled to allow accurate and precise cleave lengths from 2 to 20 mm (0.079” to 0.79”)
- Ultra-strong carbide blade will last up to 6,000 cleaves before needing to be replaced
- Handles both single and multi-mode fibers with 125 µm cladding
- Replacement Parts: FC-4 Replacement Blade and FC-65 Replacement Leaf Spring
Common Questions About the FC 220 Fiber Cleaver
What is the FC 220 Fiber Cleaver used for?
The FC 220 is used to cleave 900 µm buffered or 250 µm coated fiber for mechanical splicing or quick field termination of fiber connectors.
Who is this fiber cleaver designed for?
This cleaver is ideal for fiber technicians, splicers, and installers who need a fast, accurate tool for preparing single or multi-mode fibers in the field.
What makes the FC 220 different from standard fiber cleavers?
The FC 220 features a leaf spring scale for cleave lengths from 2 to 20 mm, an ultra-strong carbide blade lasting up to 6,000 cleaves, and supports 125 µm cladding fibers. Replacement parts are available (FC-4 blade and FC-65 leaf spring).
At a Glance
• Fiber cleaver for 900 µm buffered and 250 µm coated fibers
• Cleave lengths 2–20 mm with leaf spring scale
• Ultra-strong carbide blade, up to 6,000 cleaves
• Supports single and multi-mode fibers with 125 µm cladding
