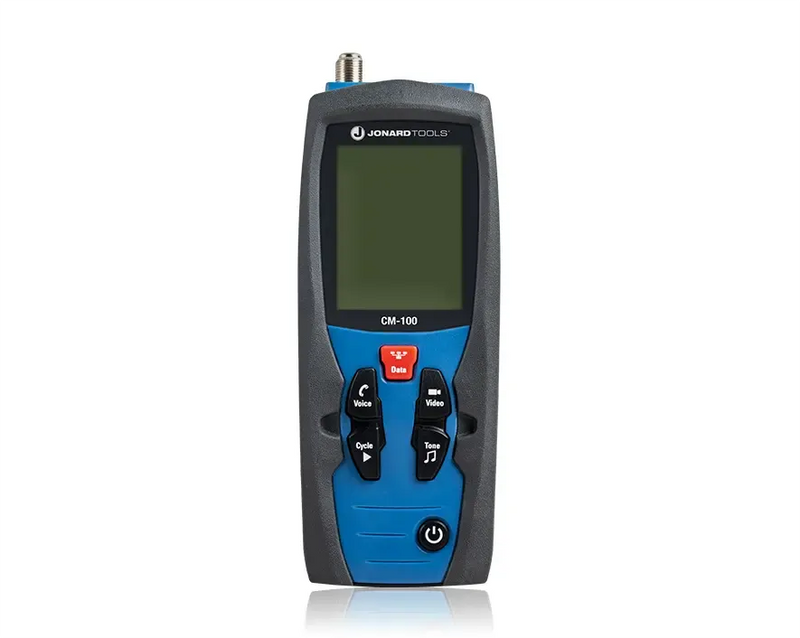

JONARD | Cable Mapper Pro | #CM-100

JONARD | Cable Mapper Pro | #CM-100

by Jonard
Sale Sale
$94.95
$94.95 - $94.95
$94.95
$90.20
$90.20 - $90.20
$90.20
JONARD TOOLS | PART #CM-100

DESCRIPTION

Designed for finding and identifying up to 8 COAX and network cables in main cable boxes, this cable mapper and toner is the perfect tool for use on cables for CATV, network installations, satellite installations, telephone systems, audio-video equipment, CCTV, and security & alarm installations. This 8-way cable mapper and toner kit features the following:

  • Maps up to 8 COAX or Network Cables simultaneously, up to 1,000 ft

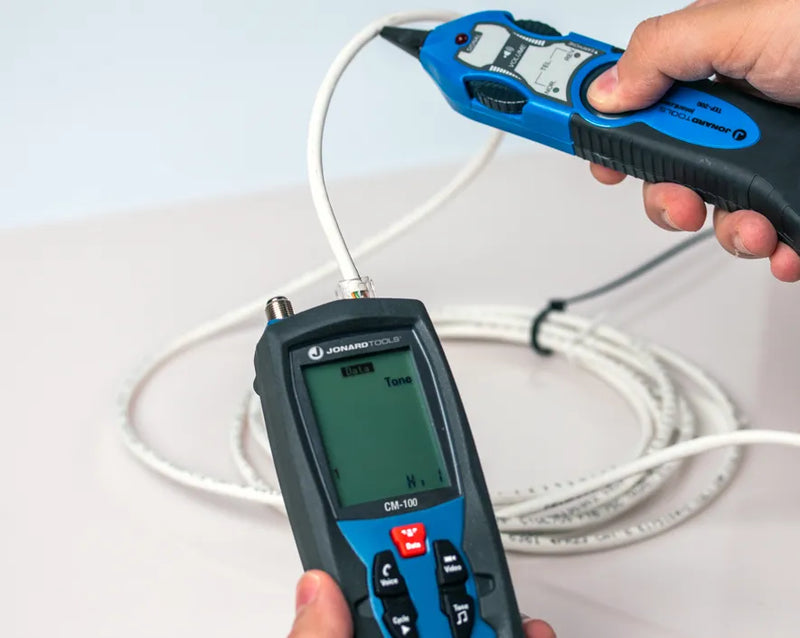

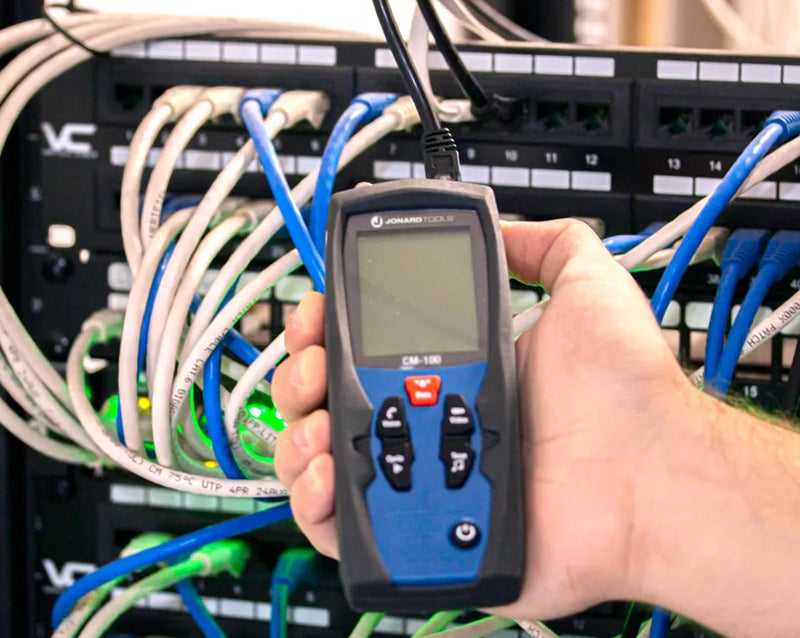

  • Tone Generator makes it quick and easy to locate cables in wiring closets or patch panels

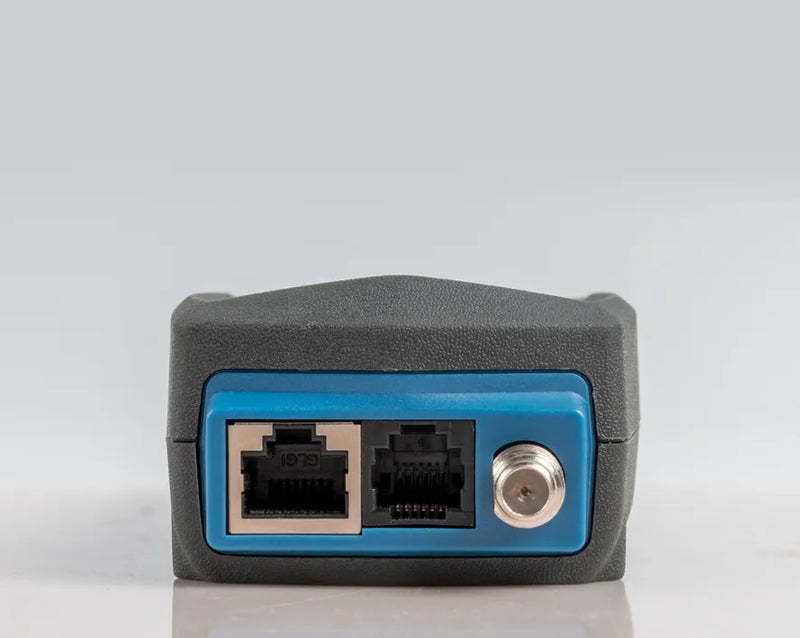

  • Tests Network and Telephone Cables using RJ11 or RJ45 connectors for shorts and wire mispairs

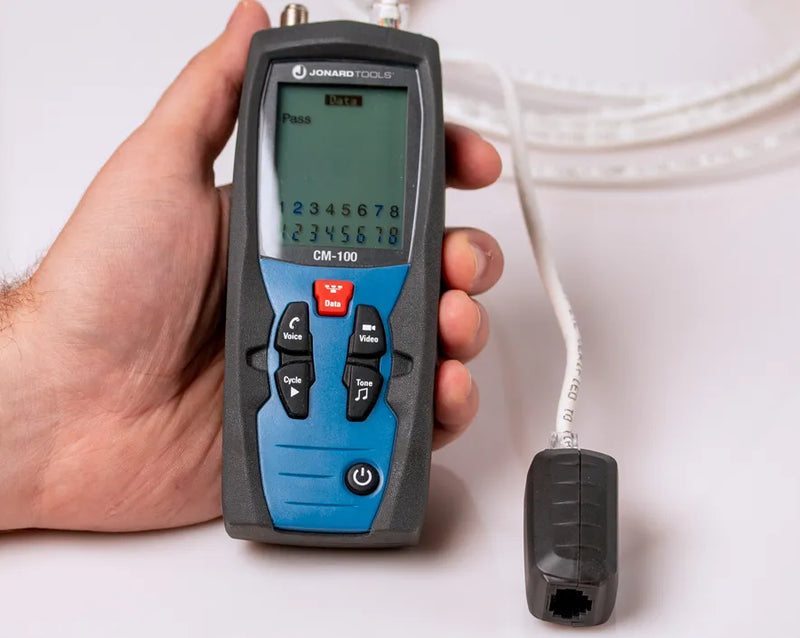

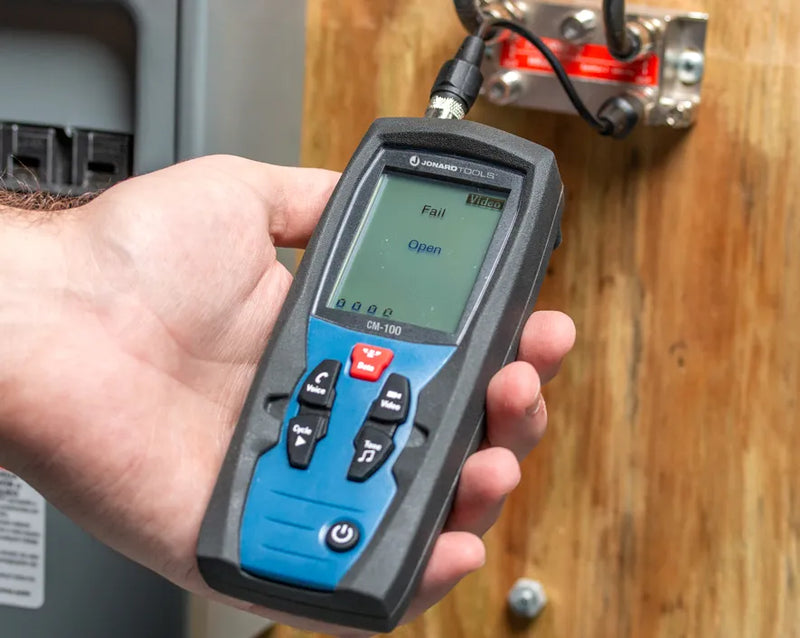

  • Backlit LCD clearly maps out connections and describes wiring faults when testing
  • Rugged rubber housing protects it from accidental drops and damage
  • Live voltage detection warns you if the cable is live
  • Powered by (2) AA Batteries (included) and automatically powers off after 30 minutes to conserve battery life

            DOCUMENTS

            Cable Mapper Pro Datasheet

            SPECIFICATIONS

            Includes

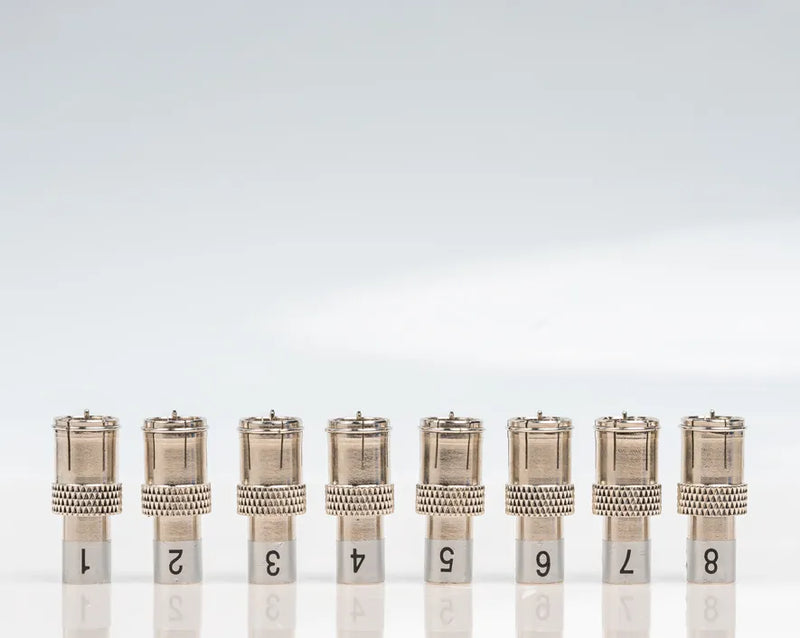

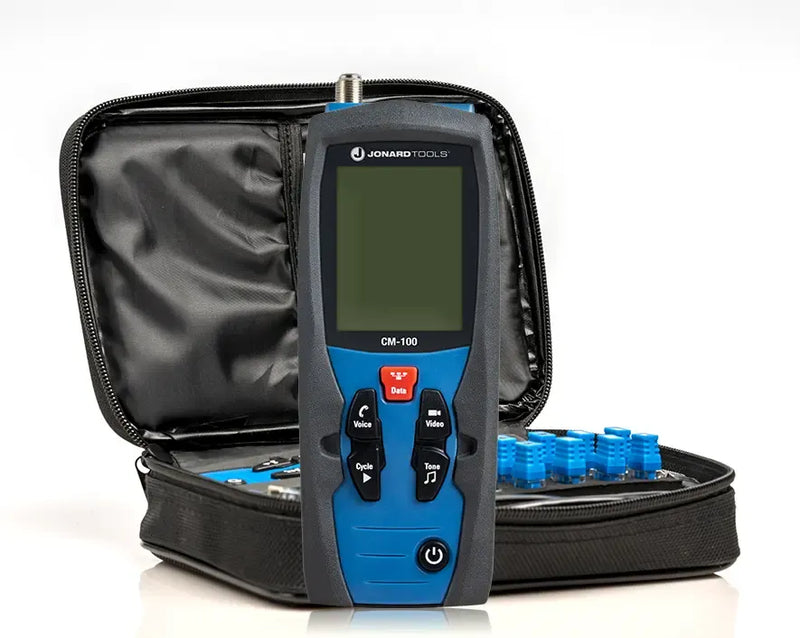

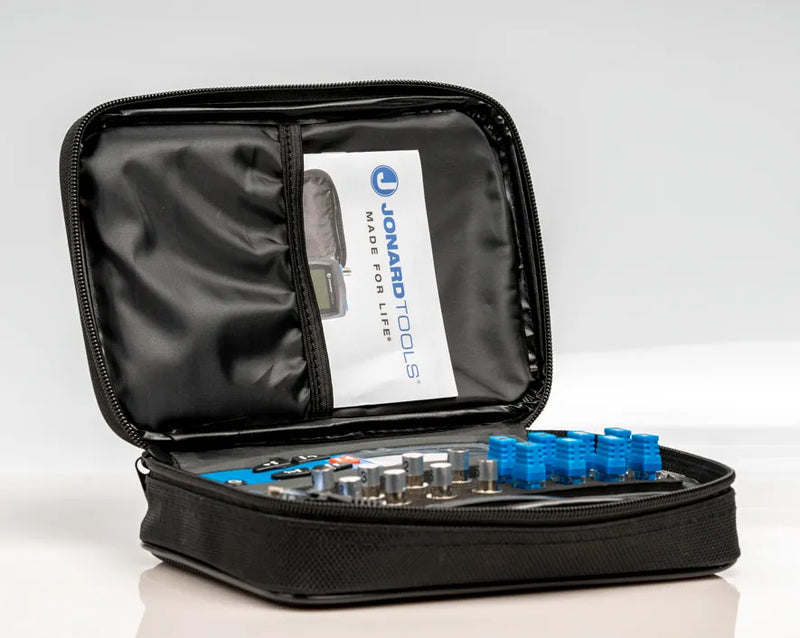

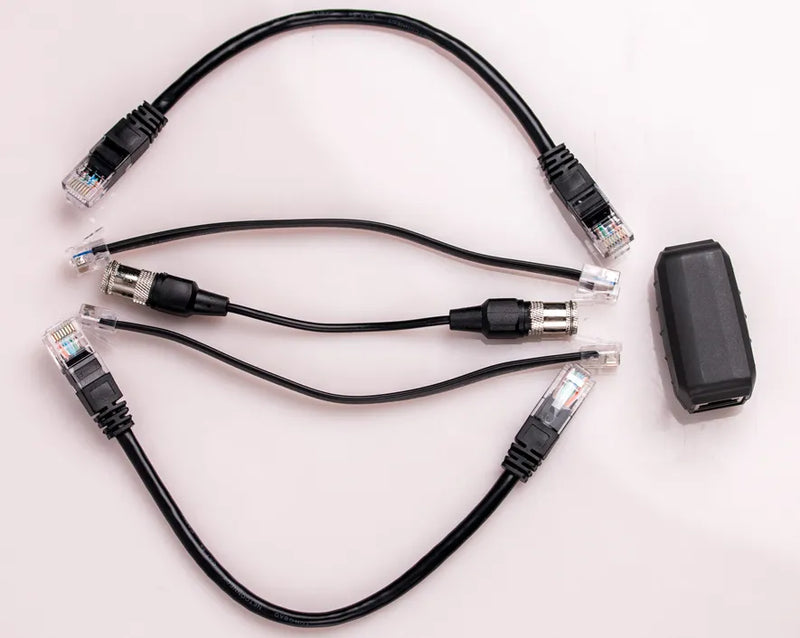

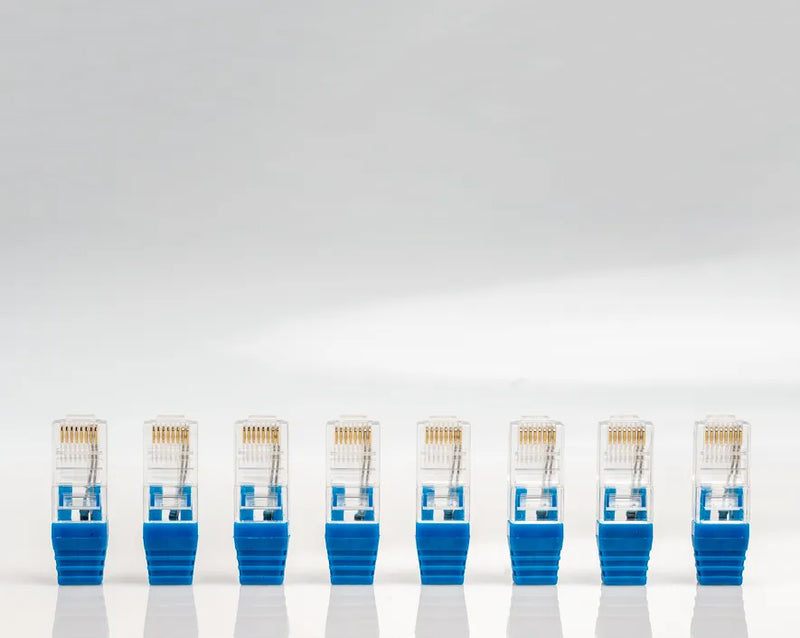

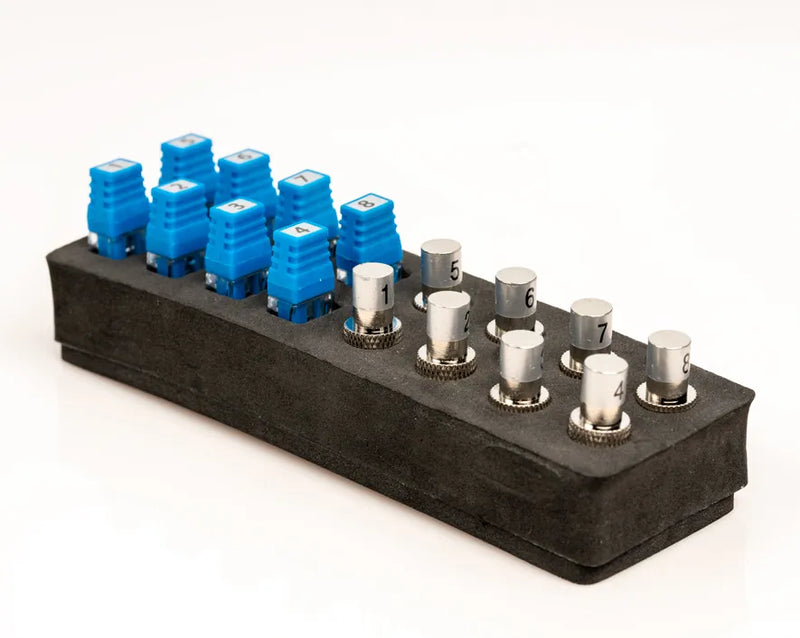

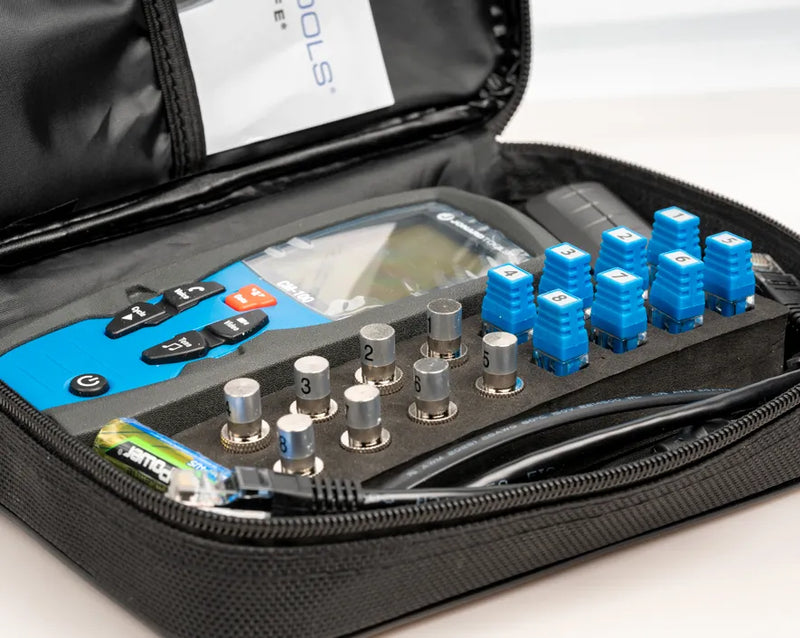

            Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet
            Display

            Backlit LCD
            Max Cable Length

            1000 ft (304.8 m)
            Max DC Cable Resistance

            100 Ohms
            Batteries

            x2 AA
            Dimensions

            4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm)
            Weight 0.93 lb (422.22 g)
            UPC # 810053350874
