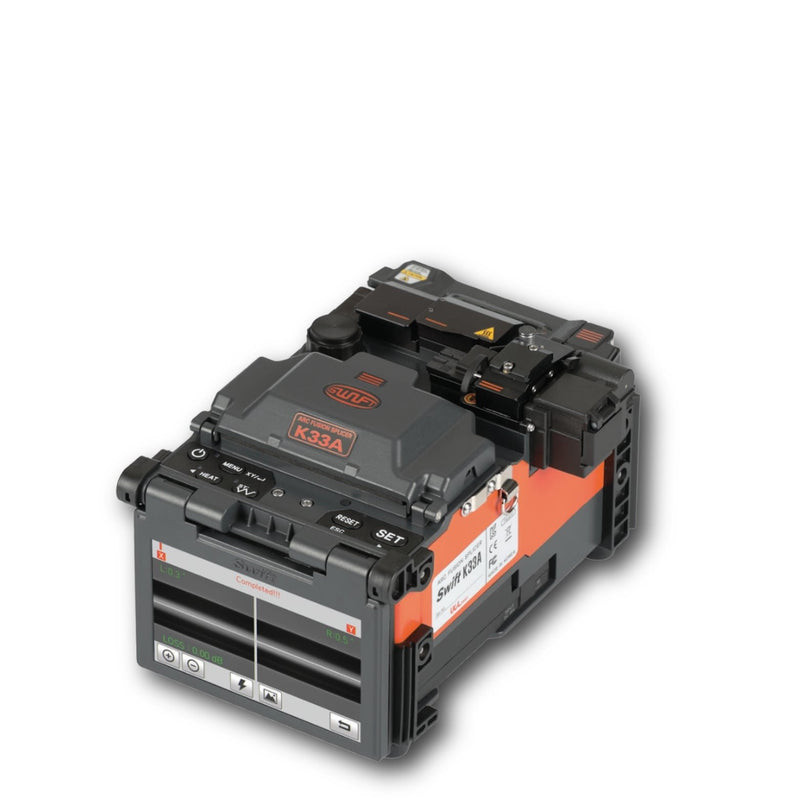

UCL SWIFT | All-In-One Core Alignment Fusion Splicer Kit | #SWIFT-K33A-KIT
UCL SWIFT | PART #SWIFT-K33A-KIT
All-In-One Core Alignment Fusion Splicer Kit
DESCRIPTION
The Swift K33A, a premium IPAAS core alignment splicer offers our exclusive All-In-One system that provides the best workability, and the integration of 5 functions into one unit (stripping, cleaning, cleaving, splicing, and protecting). This compact and rugged fiber splicer is ideal for medium and long-range optical circuits, LAN, CATV, FTTx. With a rotating blade that can allow up to 110,000 cleaves, the K33A combines long-lasting durability with high precision performance.
FEATURES
- ROTATING BLADE LIFE UP TO 77,000 + 33,000 (when increasing blade height by 0.12mm)
- ELECTRODE LIFE UP TO 18,000
- Remote maintenance via the internet
- The fusion splicer with an All-in-One system provides the best workability with integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, and protecting)
- No scratches on fiber by thermal stripping (extended tensile of fiber strength by 3kg more)
- Wide 127mm (5.0 in) color LCD monitor with electrostatic touch screen & bidirectional operation system
- Powerful lithium polymer battery with large capacity (6000mAh)
- Resistance to shock, dust, and water
- Compatible with Fusion Splice-on Connector (FSOC) in accordance with the industry standard
- The rotating blade allows up to 110,000 cleaves
Common Questions About the UCL Swift K33A All In One Core Alignment Fusion Splicer
What is the UCL Swift K33A Fusion Splicer used for?
The UCL Swift K33A All In One Core Alignment Fusion Splicer is used for precision fiber optic splicing across LAN, CATV, and FTTx networks, supporting medium and long range optical circuits.
Who should use the Swift K33A fusion splicer?
This splicer is ideal for fiber technicians, telecom contractors, and installation crews who need a rugged, high precision splicer that integrates multiple functions into one compact field ready unit.
What makes the Swift K33A different from other fusion splicers?
The K33A combines true core alignment technology with an All In One system that performs stripping, cleaning, cleaving, splicing, and protecting in a single device, reducing setup time and increasing jobsite efficiency.
How the Swift K33A Improves Fiber Splicing Performance
The UCL Swift K33A All In One Core Alignment Fusion Splicer Kit improves productivity by eliminating the need for multiple tools in the field. Its long electrode life, high cleave count rotating blade, and durable shock, dust, and water resistant design allow technicians to complete more splices per day with consistent low loss results.
At a Glance
• All in one core alignment fusion splicer
• Designed for LAN, CATV, and FTTx applications
• Integrated stripping, cleaning, cleaving, splicing, and protection
• Rotating blade rated up to 110,000 cleaves
• Long electrode life up to 18,000 splices
• Rugged design for demanding field environments
