JONARD | 6-in-1 Crimping Tool, RJ45 Pass-through & RJ11/12 Modular | #UC-4569
JONARD TOOLS | PART #UC-4569

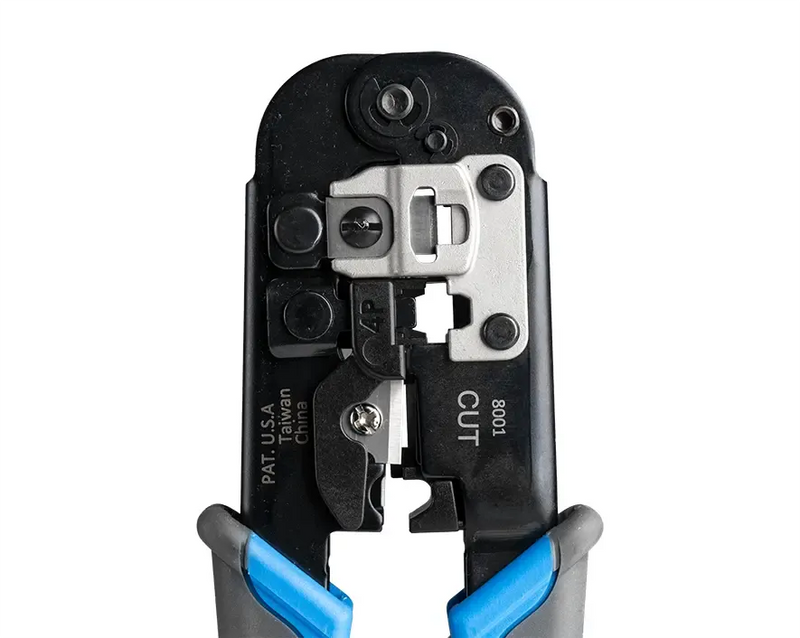

6-in-1 Crimping Tool, RJ45 Pass-through & RJ11/12 Modular
DESCRIPTION
Designed to crimp RJ11/12 and RJ45 connectors onto CAT3, CAT5/5e, and CAT6 cables, this pass-through connector crimper is perfect for any network installer. This crimper features the following.
- Easily crimps pass-through RJ45 connectors without any measuring needed

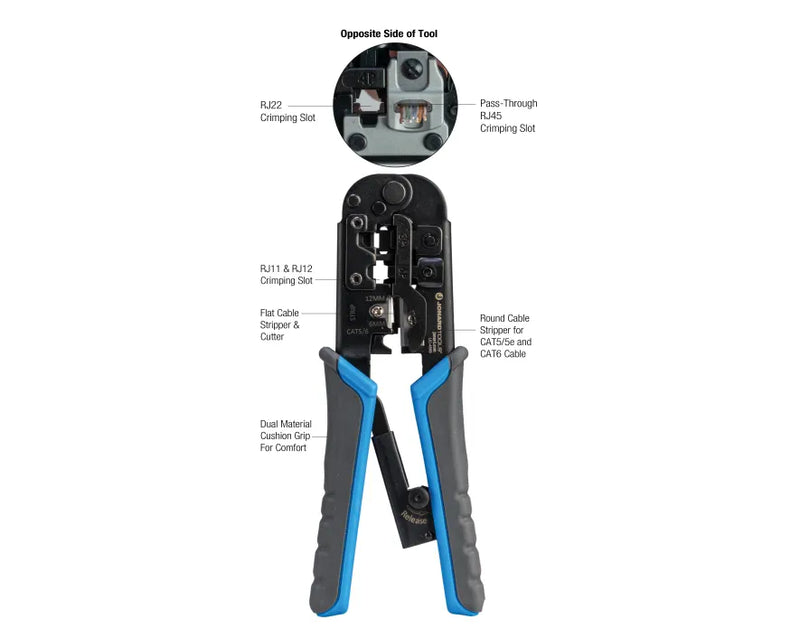

- Crimps 4, 6, and 8 position modular connectors (RJ11/12 and RJ45)

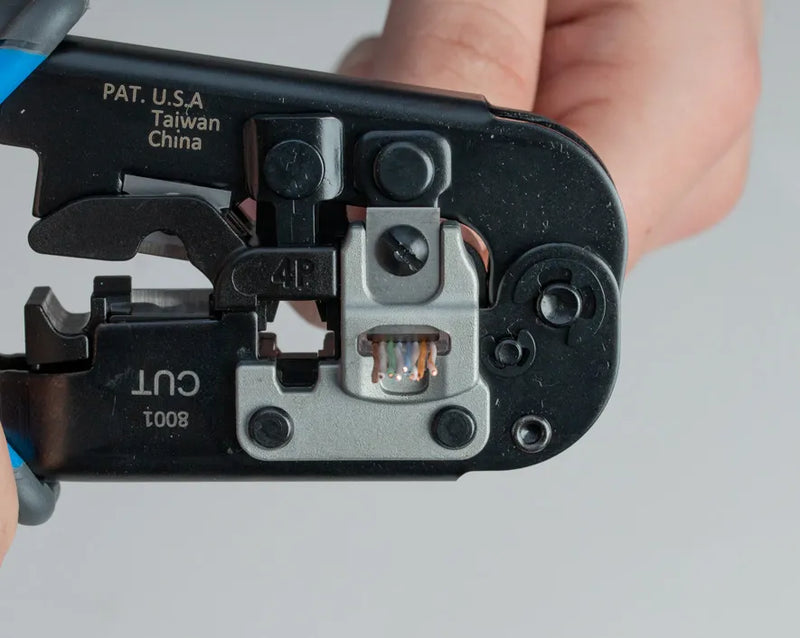

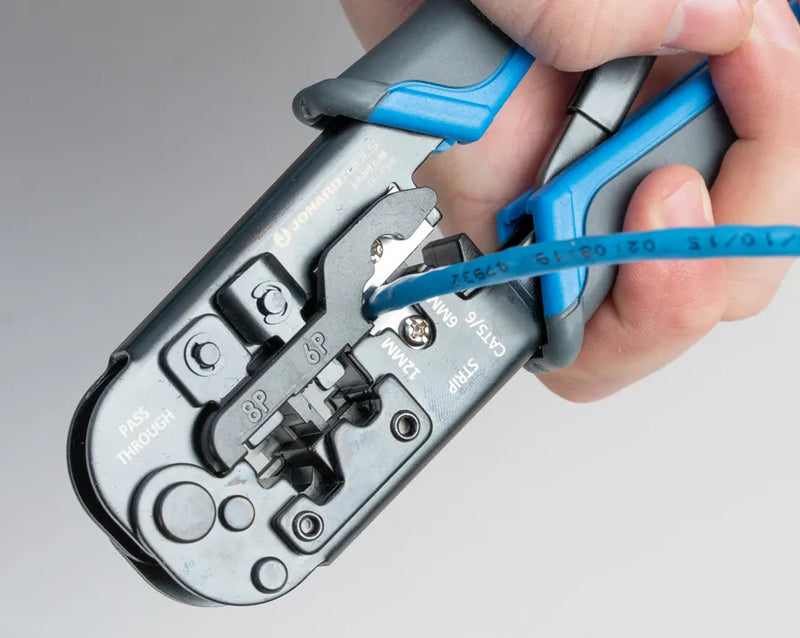

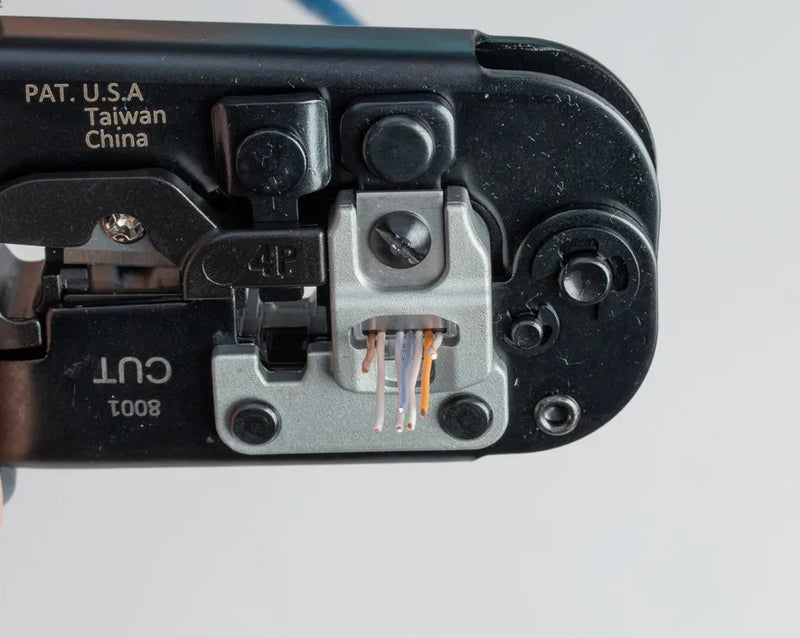

- Cleanly trims the wires flush to the end face of pass-through RJ45 connectors

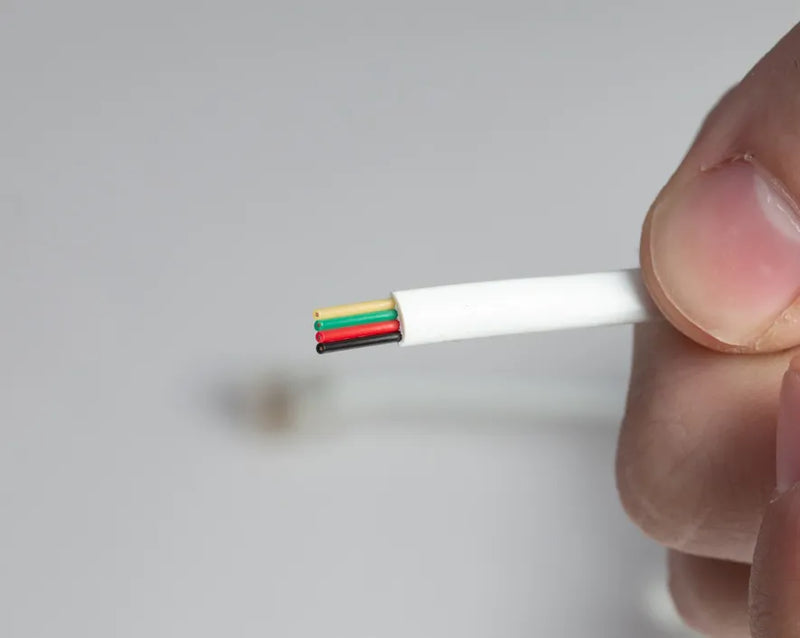

- Intended for use with 22 AWG-28 AWG flat/round, solid/stranded telephone and data cables
- Ratcheted, ultra-stable platform for consistent terminations with low hand force
- Durable steel construction for high durability and long life
- Ergonomically designed dual material cushion grip handles for greater comfort
- The cutting blades are made for heavy-duty use and can perform up to 400 cuts
- Replacement blade set available: UC-4569RB

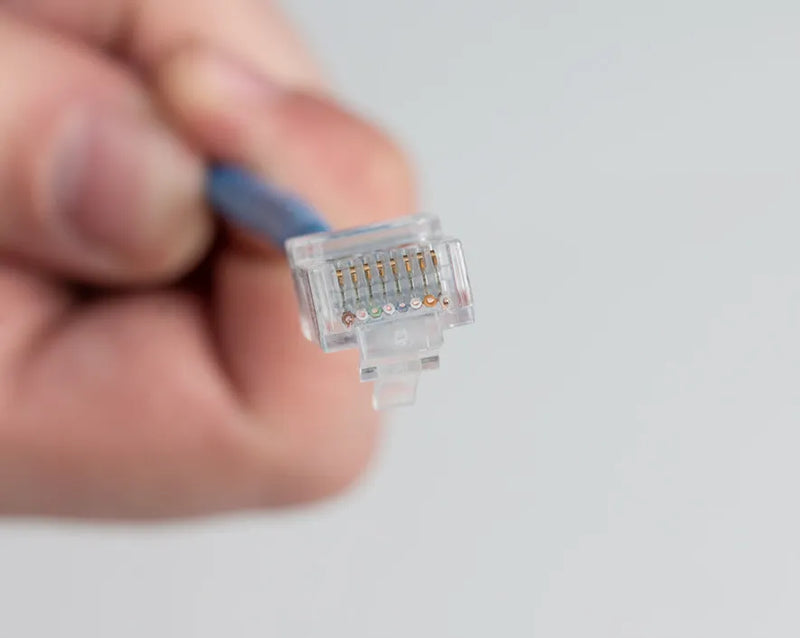

Intended for use with our RJ45 Pass-Through connectors for CAT5 and CAT6 cables: RJ45-5100 and RJ45-6100
DOCUMENTS
SPECIFICATIONS
| Cable Type |

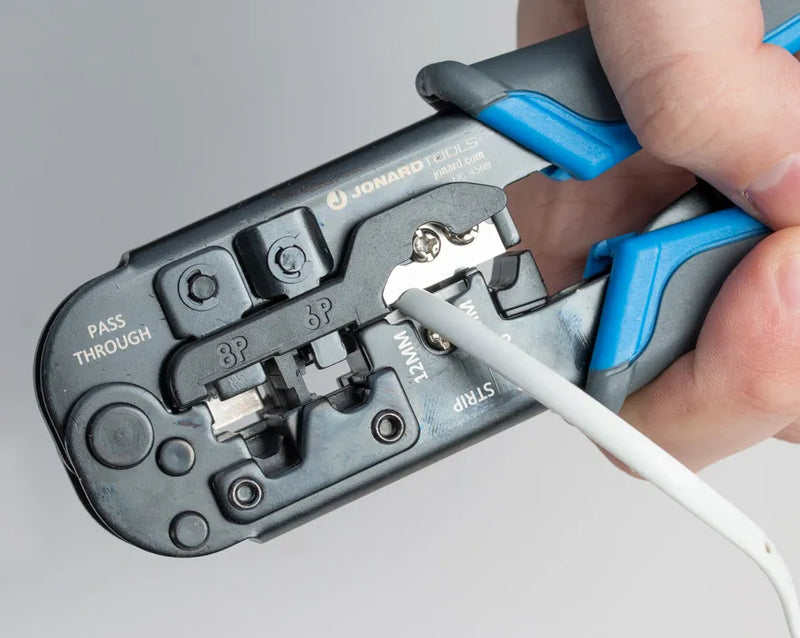

CAT3, CAT5, CAT5e, CAT6 cables, can also cut and strip round STP/UTP/flat phone cables |
|---|---|
| Crimp Type |
Pass-Through |
| Handle |
Dual Material Cushion Grip |
| Dimensions |
7.5” x 2.5” x 7/8” (19.05 cm x 6.35 cm x 2.22 cm) |
| Weight | 0.72 lb (328.69599999999997 g) |
| UPC # | 811490018105 |
Common Questions About the Jonard UC-4569 6-in-1 Pass-Through Crimping Tool
What is the Jonard UC-4569 crimping tool used for?
The Jonard UC-4569 is used to crimp pass-through RJ45 connectors and standard RJ11 and RJ12 modular connectors onto CAT3, CAT5, CAT5e, and CAT6 cables during network installations.
Who is this pass-through crimping tool designed for?

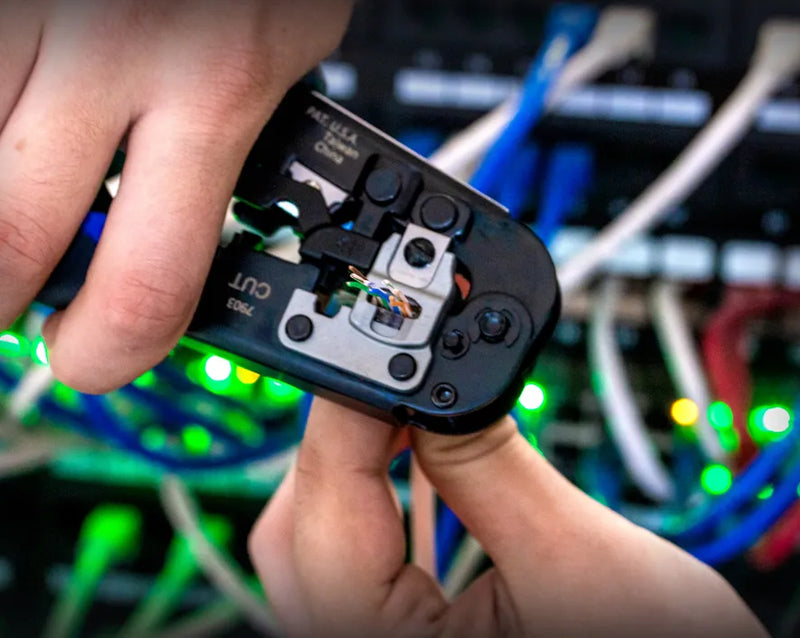

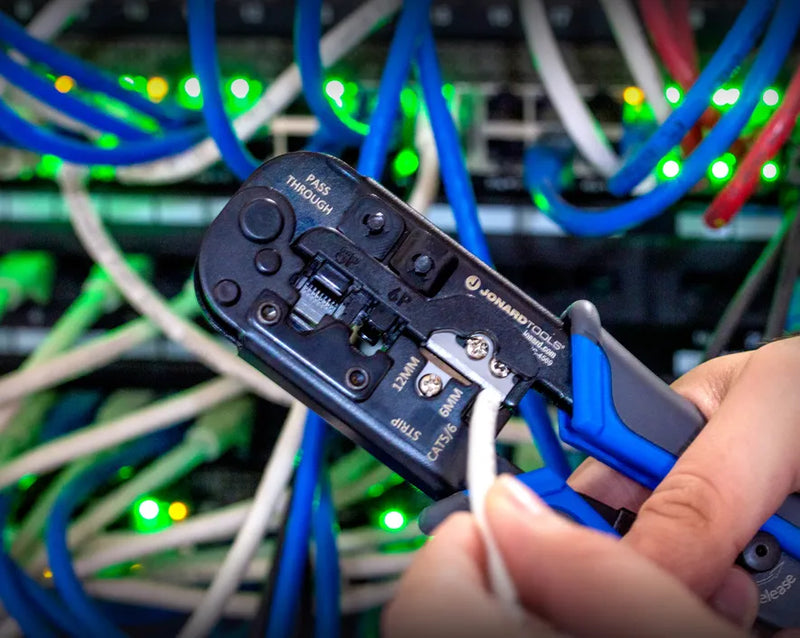

This crimping tool is designed for network installers, telecom technicians, and electricians who regularly terminate pass-through RJ45 connectors and modular plugs.
What makes the UC-4569 different from other crimping tools?
The UC-4569 features pass-through crimping capability with flush wire trimming, a ratcheted mechanism for consistent results, and durable steel construction for long-term professional use.
At a Glance
• 6-in-1 crimping tool for pass-through and standard modular connectors
• Supports RJ45 pass-through, RJ11, and RJ12 connectors
• Flush cuts wires during pass-through RJ45 terminations
• Ratcheted design for consistent, low effort crimps
