JONARD | Mid Span Slit & Ring Tool (5.8mm-12mm) | #MS-426
JONARD TOOLS | PART #MS-426
Mid Span Slit & Ring Tool (5.8mm-12mm)
DESCRIPTION
The PATENTED and AWARD-WINNING MS-426 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in Prysmian ESMF Optical Mini FlexTube® cables (as well as other thick-walled 5.8 to 12 mm diameter jackets, including Corning equivalent cables). Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile. This tool features the following:

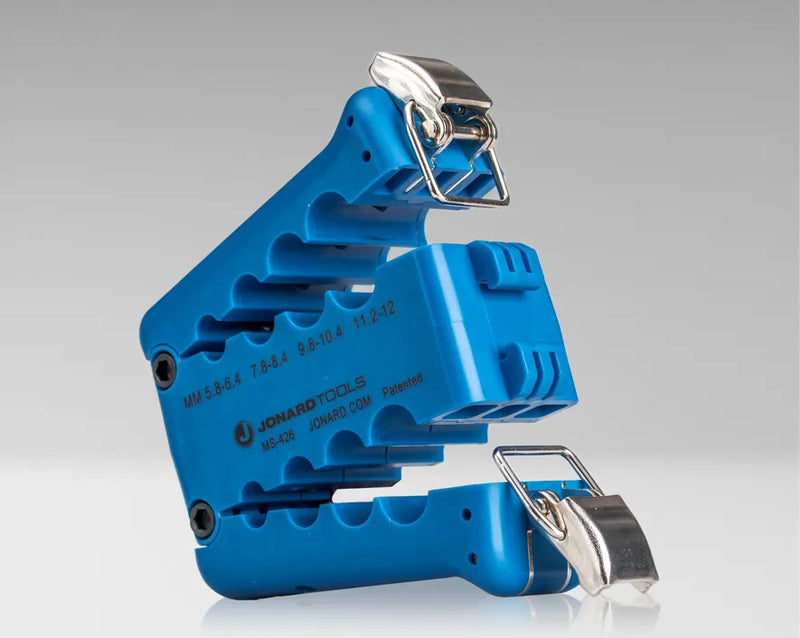

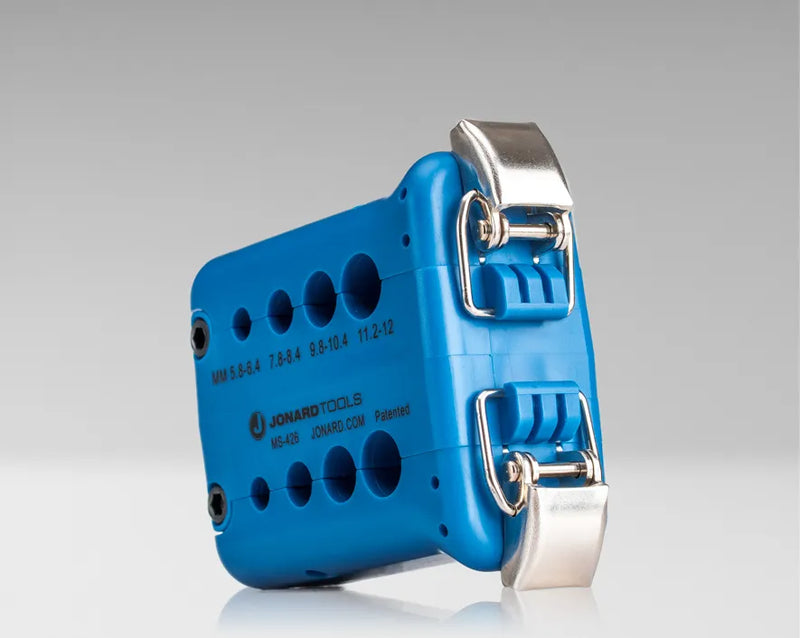

- Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 5.8 mm to 12 mm

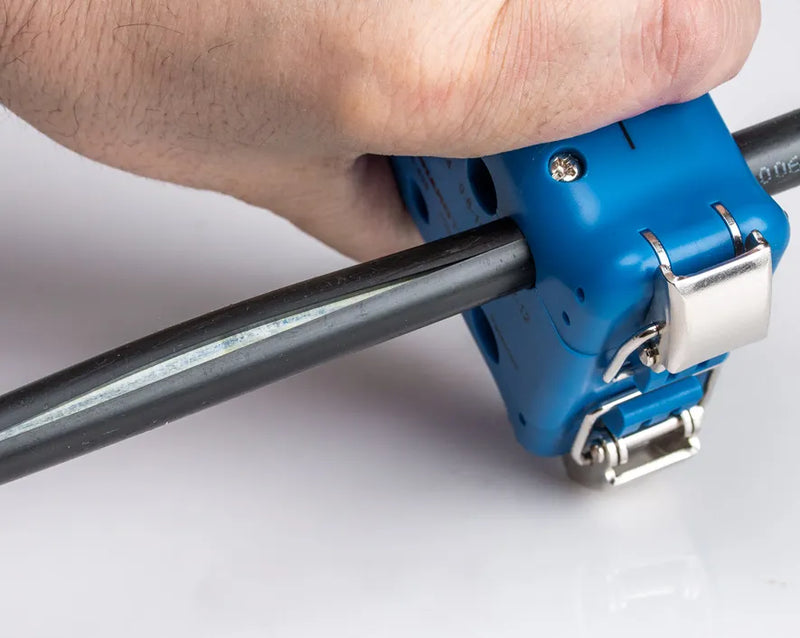

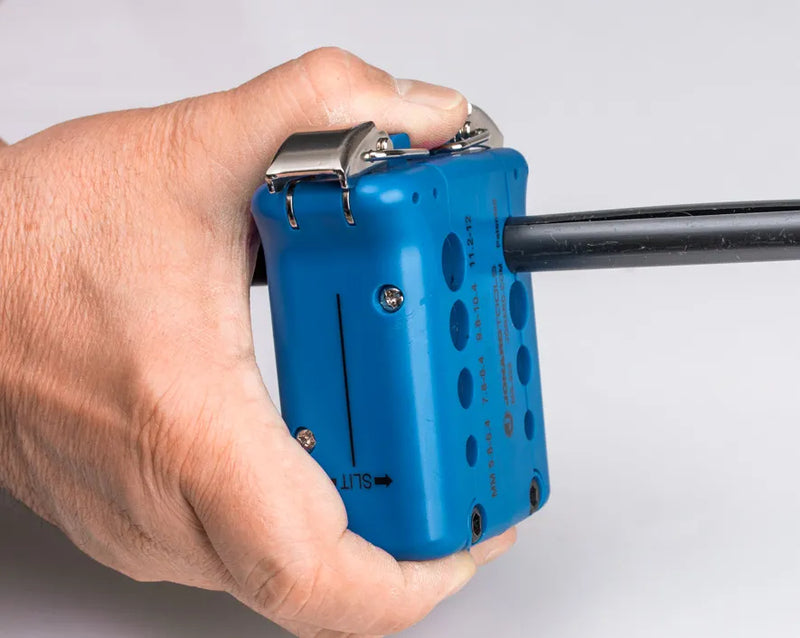

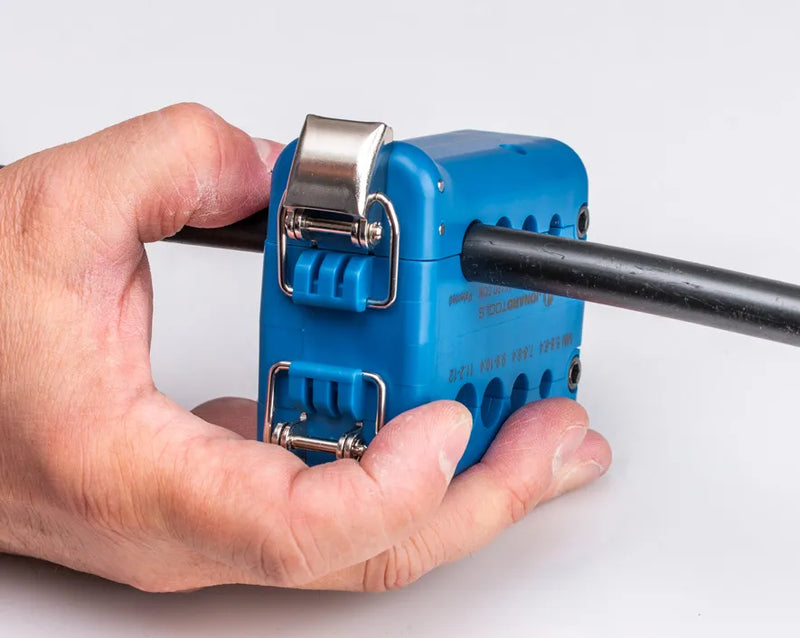

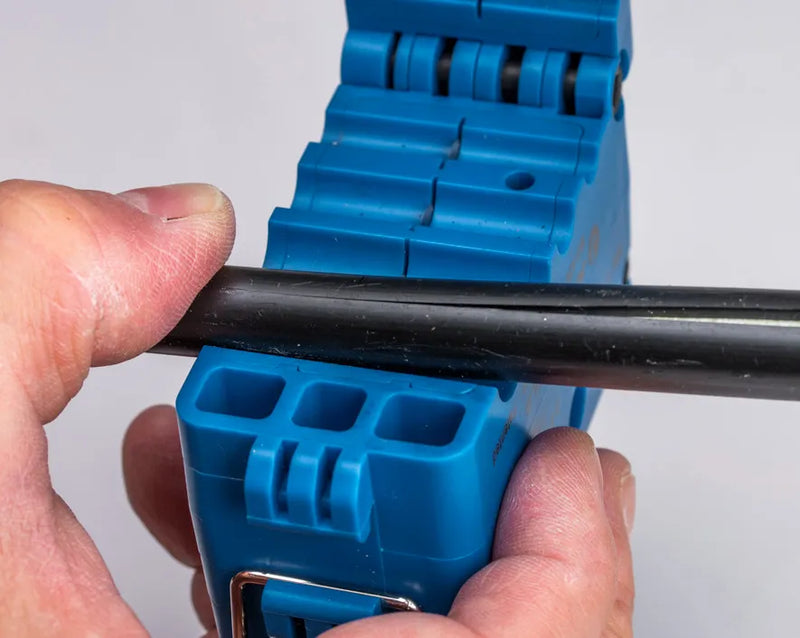

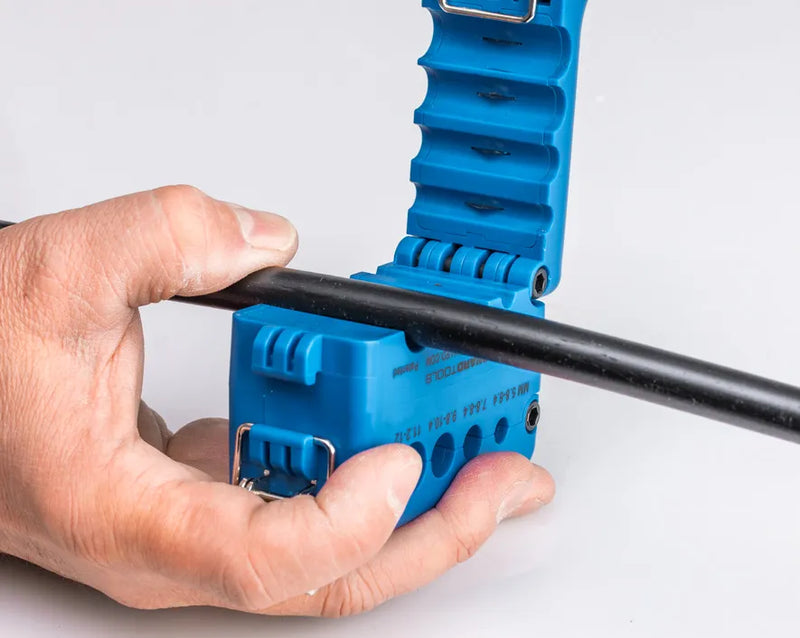

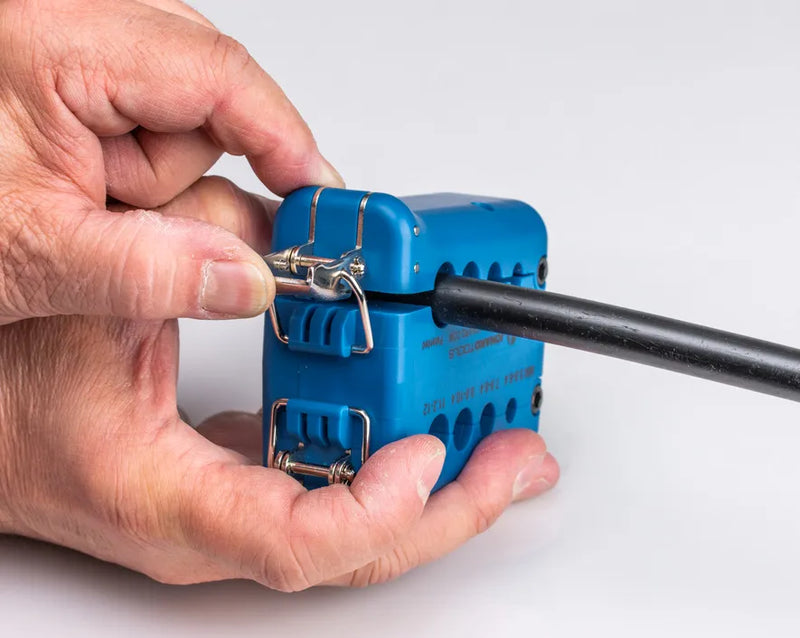

- One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
- Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go

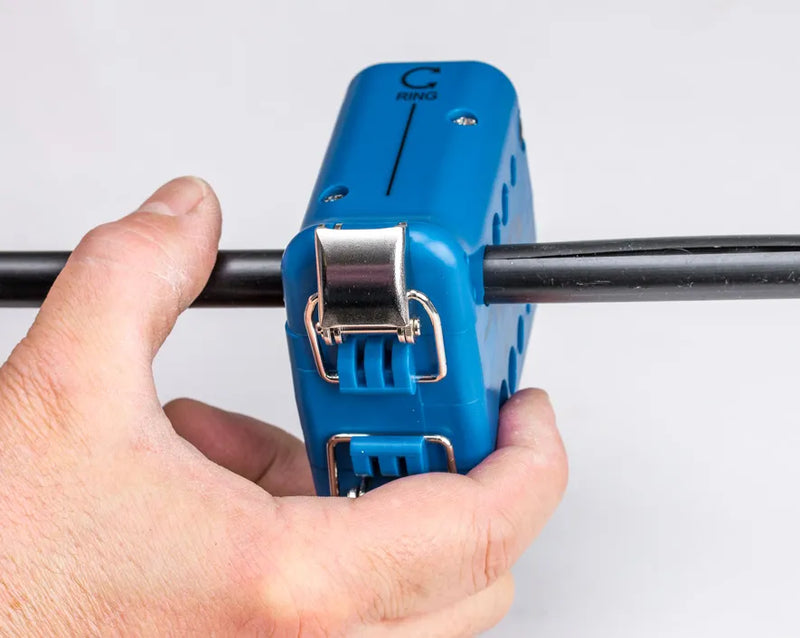

- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for use on Prysmian ESMF Optical Mini FlexTube® cables and other similar style cables, including Corning equivalent cables
- Lifetime Warranty
Groove Sizes: 5.8-6.4 mm | 7.8-8.4 mm | 9.8-10.4 mm | 11.2-12 mm
Data Sheet - Mid Span Slit & Ring Tools
SPECIFICATIONS
| Cut Type |
Slit, Ring |
|---|---|
| Number of Slitting Grooves |
4 |
| Number of Ringing Grooves |
4 |
| Cable Type |
Thick-walled Jackets (up to 2.0 mm thick) |
| Cable Diameter |
5.8 mm-12 mm |
| Dimensions | 3 in x 3 in x 1 in (7.62 cm x 7.62 cm x 2.54 cm) |
| Weight | 0.46 lb (208.84 g) |
| UPC # | 811490019973 |
Common Questions About the MS 426 Mid Span Slit and Ring Tool
What is the MS 426 Mid Span Slit and Ring Tool used for?

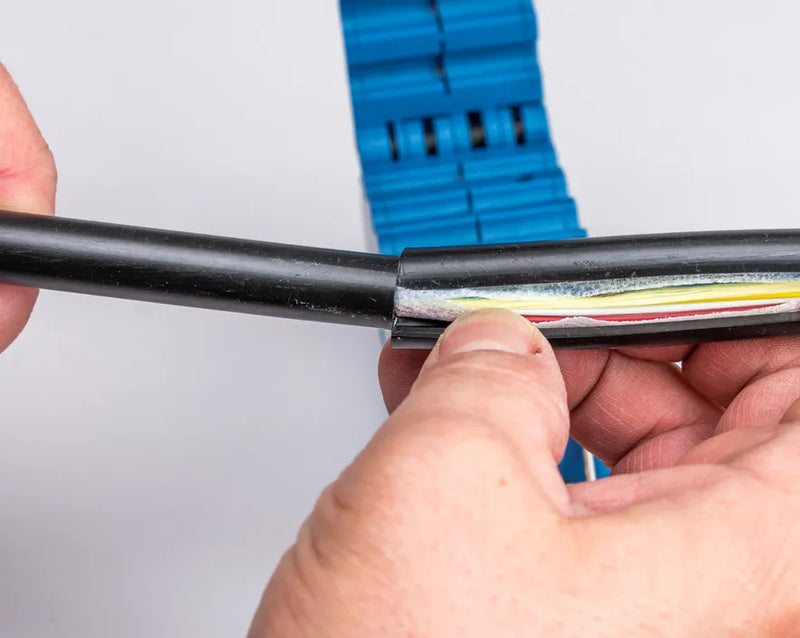

The MS 426 is used to safely slit and ring thick walled fiber optic cable jackets to access fibers during mid span fiber installation and maintenance.
Who is this tool designed for?
This tool is designed for fiber technicians and telecommunications crews working with Prysmian ESMF Optical Mini FlexTube cables and similar 5.8 mm to 12 mm jacketed fiber cables.
What makes the MS 426 different from standard mid span slitting tools?
The MS 426 combines precision slitting and ring cutting in one compact tool, allowing controlled longitudinal and radial cuts without damaging the fiber inside.
At a Glance
• Mid span slit and ring tool for 5.8 mm to 12 mm fiber cable jackets
• Designed for Prysmian ESMF Optical Mini FlexTube and similar cables
• Combines slitting and ring cutting in one lightweight tool
• Compact design with precision grooves for controlled fiber access
