Precision Crimper
DESCRIPTION

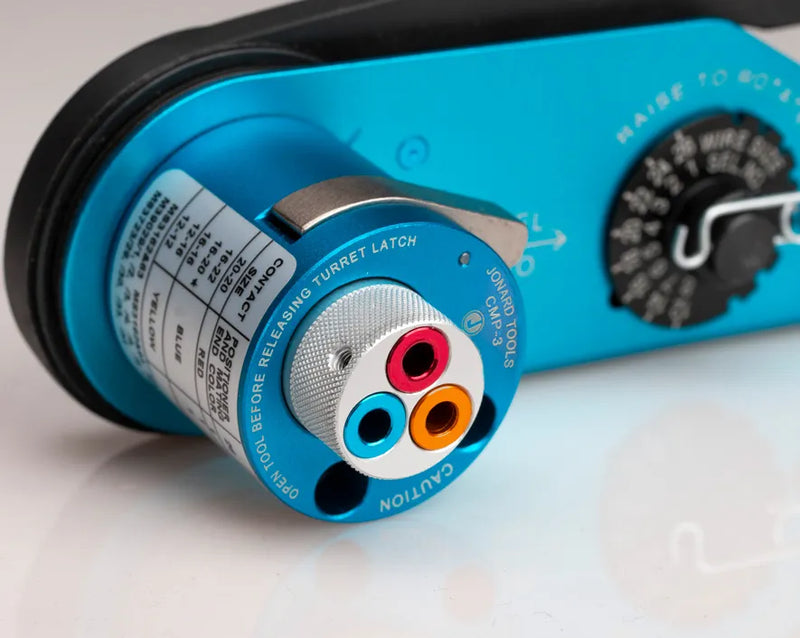

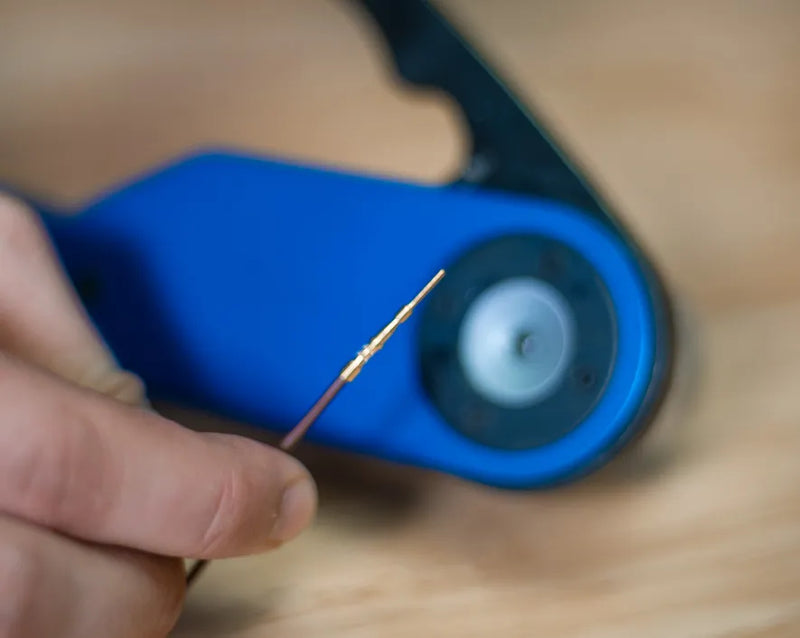

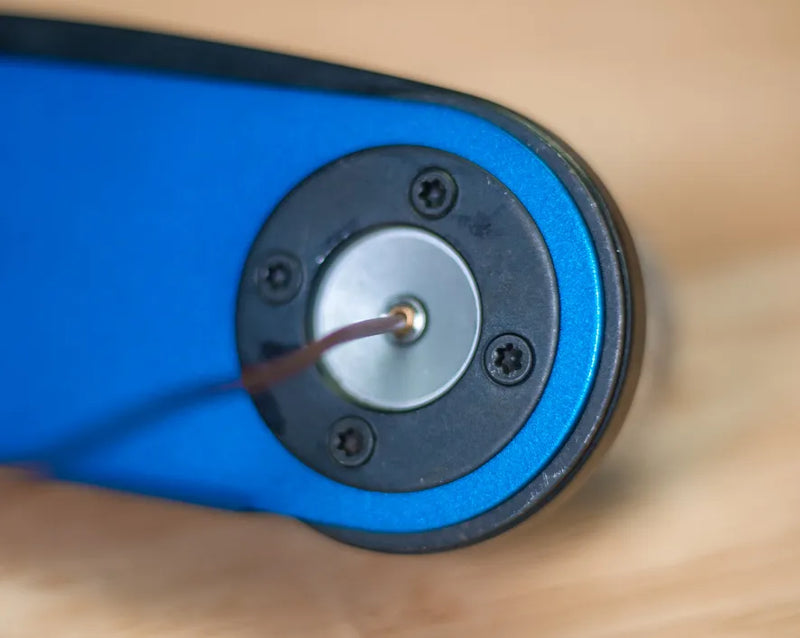

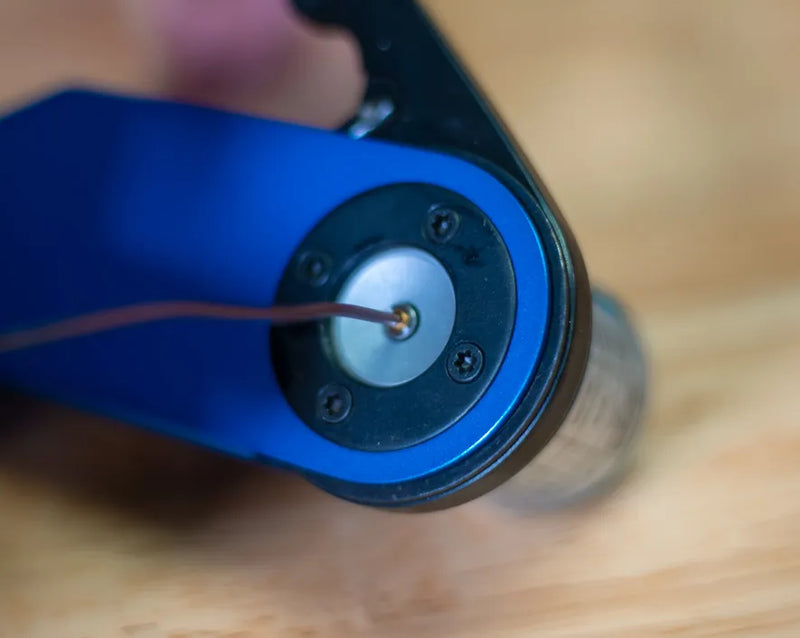

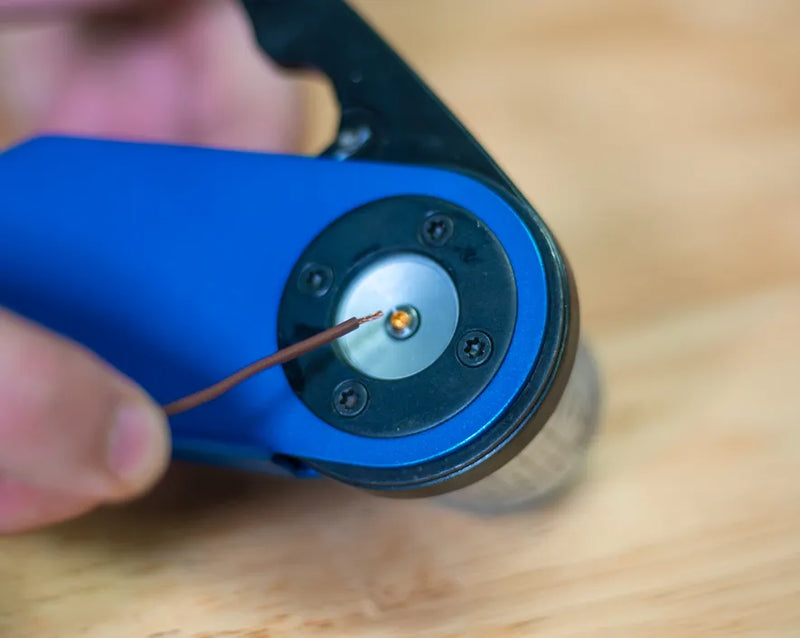

Designed for use with our CMP-3 turret head and most other turret heads, this precision crimping tool is perfect for crimping front release connector contact pins onto 12-26 AWG wire. This crimper features the following.

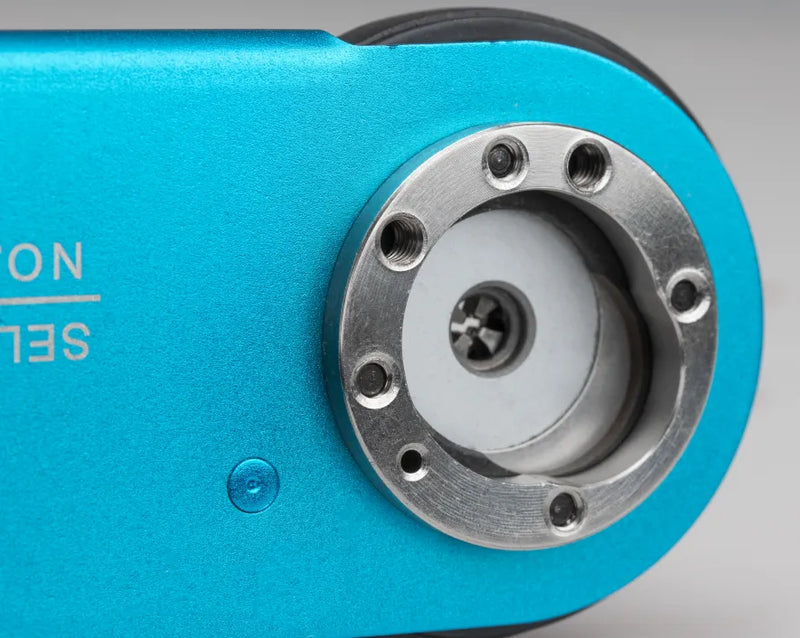

- This tool is compatible with most other turret heads, including our CMP-3 turret head
- Creates 4-indent 8-impression crimps, which assure maximum tensile strength

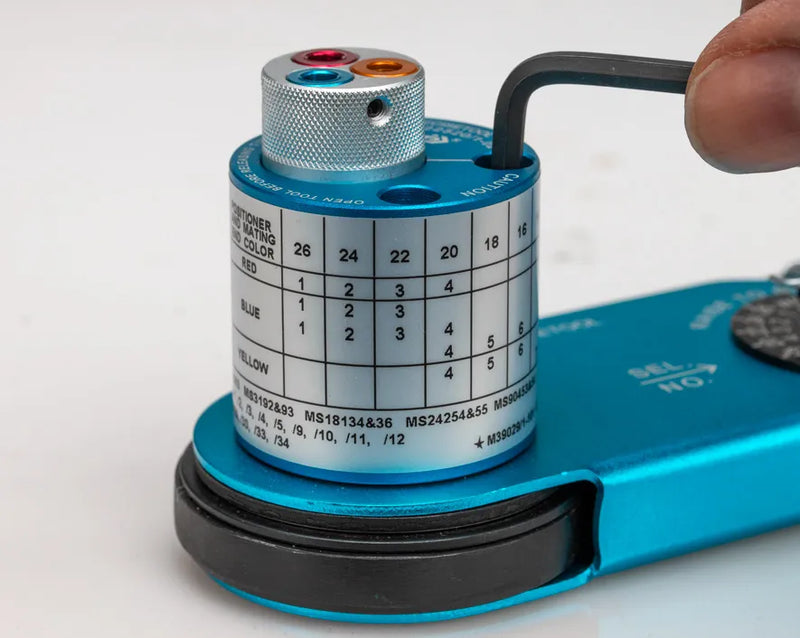

- 8 position selector knob allows you to control the crimp depth with ease
- Smooth precision ratchet ensures the same accurate crimps every time
- Instruction manual included for installation of turrets and crimping instructions
- Rugged steel frame construction with rubber cushion grips for comfort
DOCUMENTS
SPECIFICATIONS
| Wire Gauge |
12 - 26 AWG (2.05 - 0.404 mm) |
|---|---|
| Dimensions |
9.75" x 1" x 2.58" (248 mm x 25.4 mm x 66 mm) |
| Weight | 1.2 lb (544.8 g) |
| UPC # | 811490017979 |
Common Questions About the CMP 1226 Precision Crimper
What is the CMP 1226 Precision Crimper used for?

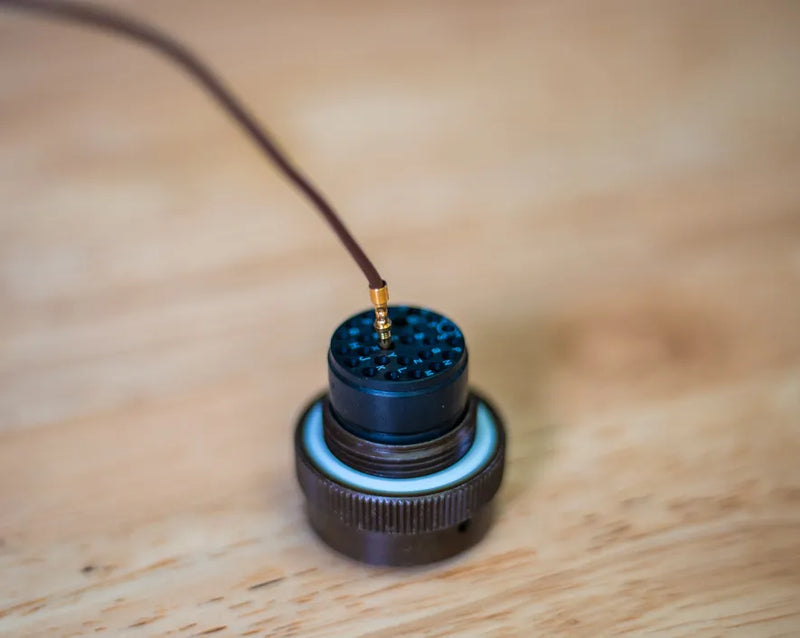

The CMP 1226 is used to crimp front release connector contact pins onto 12–26 AWG wire, compatible with CMP-3 and most other turret heads.
Who is this precision crimper designed for?
This tool is ideal for telecom technicians, electrical installers, and anyone working with front release connectors requiring precise and consistent crimps.
What makes the CMP 1226 different from standard crimpers?
The CMP 1226 features an 8-position selector knob for adjustable crimp depth, a smooth ratchet for uniform crimps, rugged steel frame, rubber cushion grips for comfort, and 4-indent 8-impression crimps for maximum tensile strength.
At a Glance
• Precision crimper for 12–26 AWG wires, compatible with CMP-3 and most turret heads
• 4-indent 8-impression crimp for maximum tensile strength
• 8-position selector knob, smooth ratchet for consistent crimps
• Rugged steel frame with rubber cushion grips for comfort
