JONARD | Mid Span Slit & Ring Tool (8.7 mm-14.6 mm) | #MS-446
JONARD TOOLS | PART #MS-446
Mid Span Slit & Ring Tool (8.7 mm-14.6 mm)
DESCRIPTION

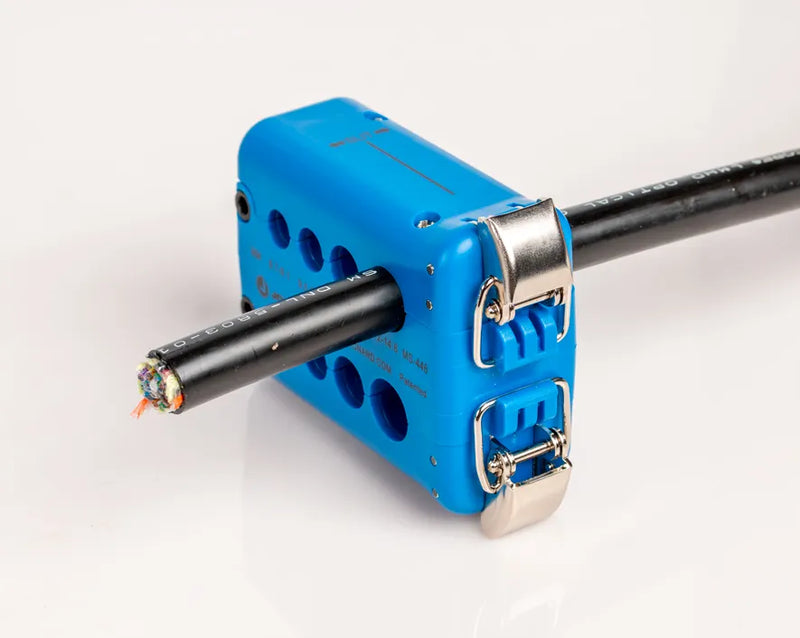

The PATENTED and award-winning MS-446 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables as well as other thick-walled 8.7 to 14.6 mm diameter jackets. This mid span slit and ring tool also features the following

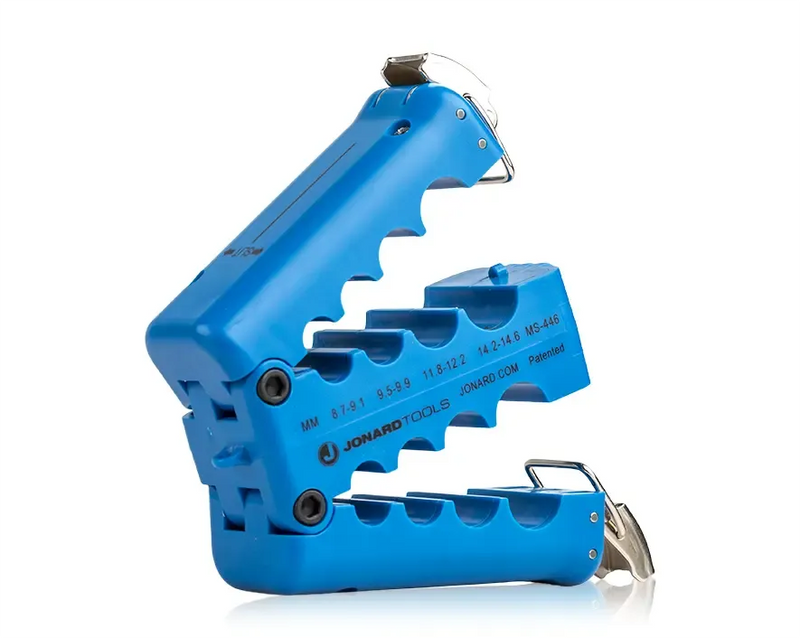

- Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 8.7 mm to 14.6 mm in diameter

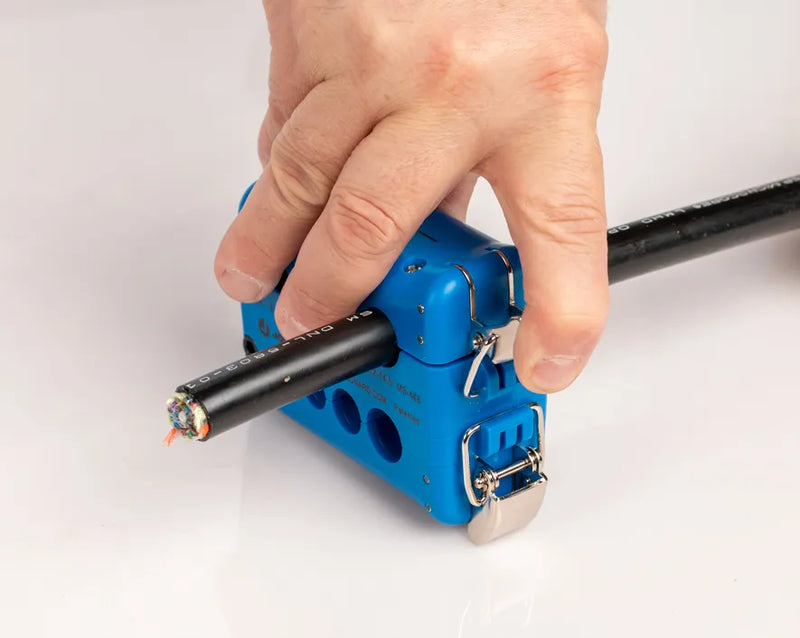

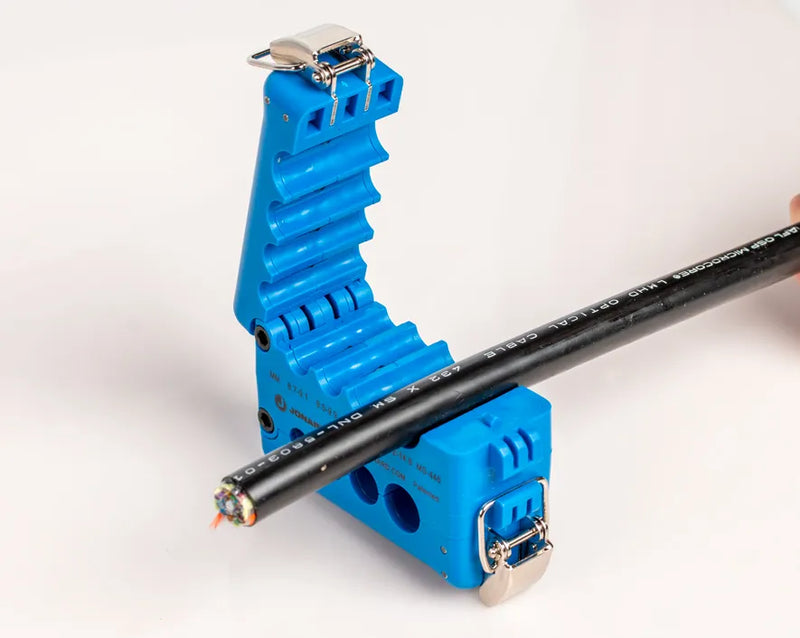

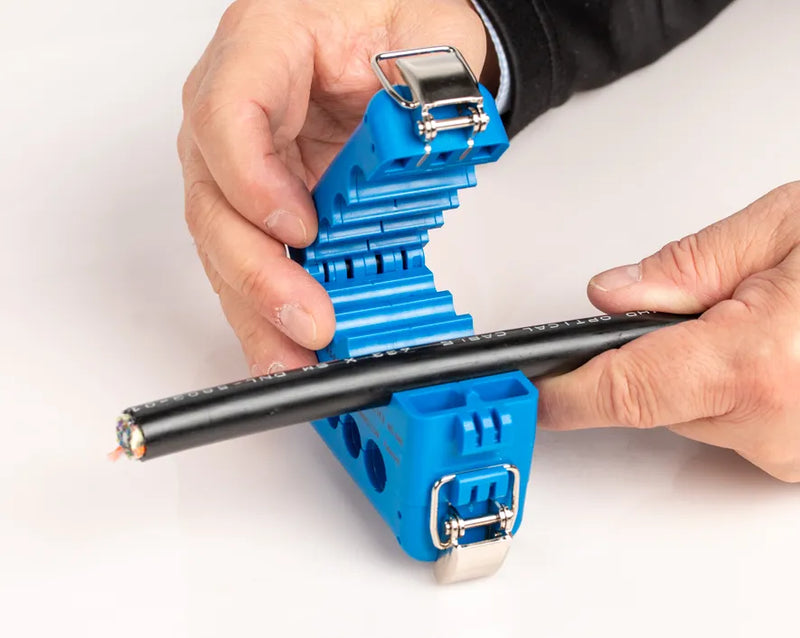

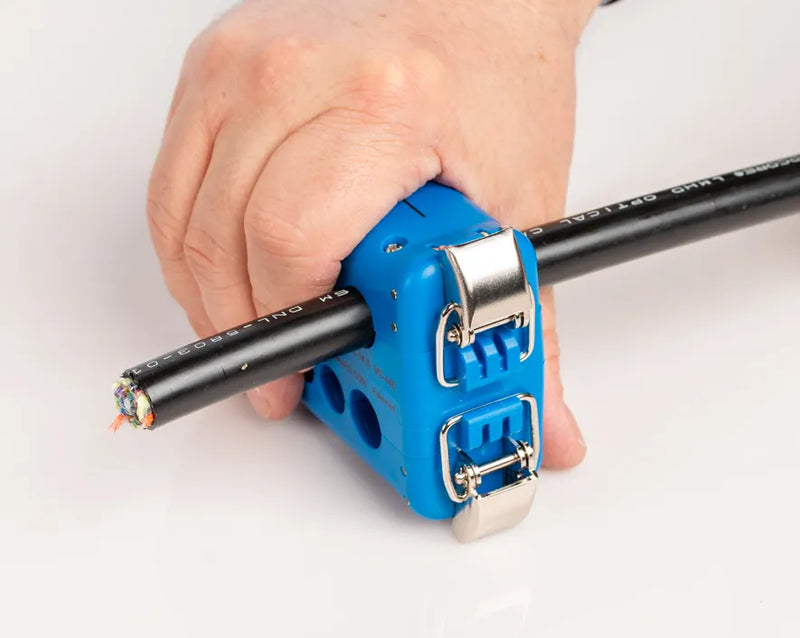

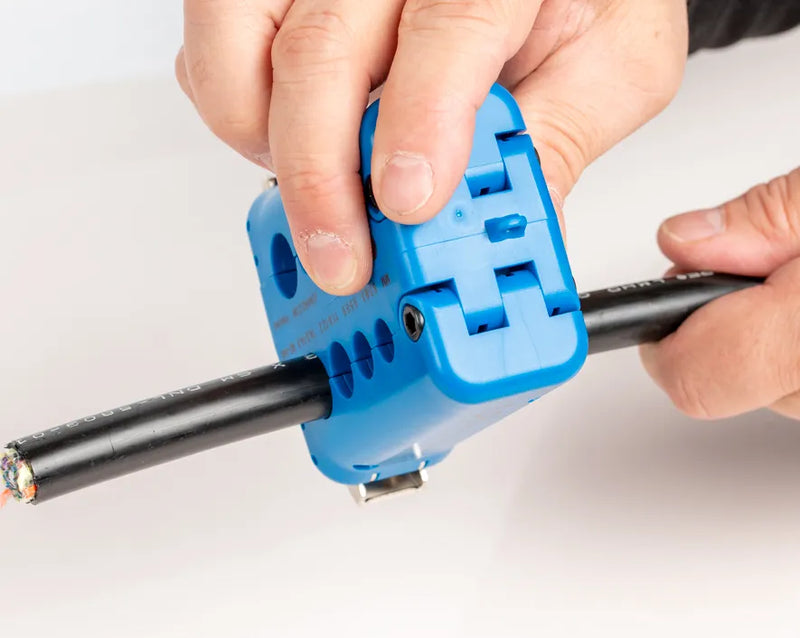

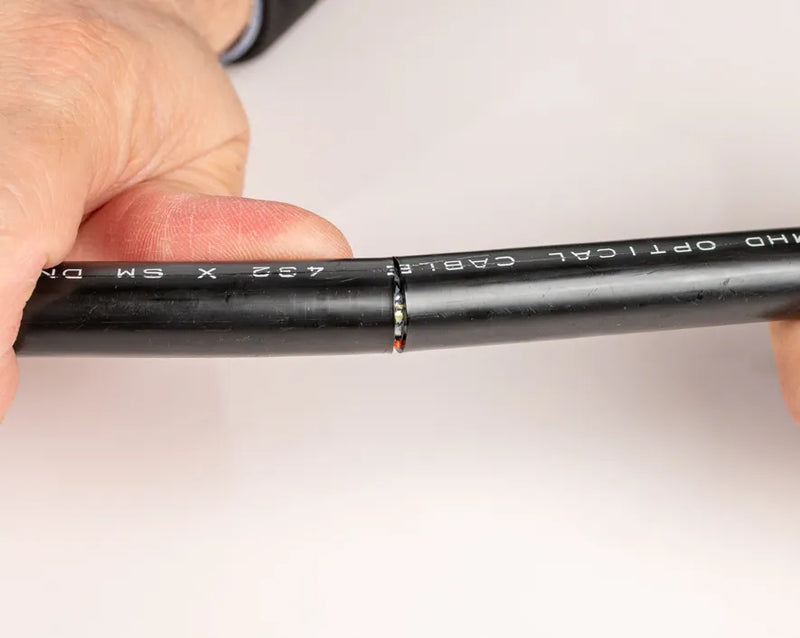

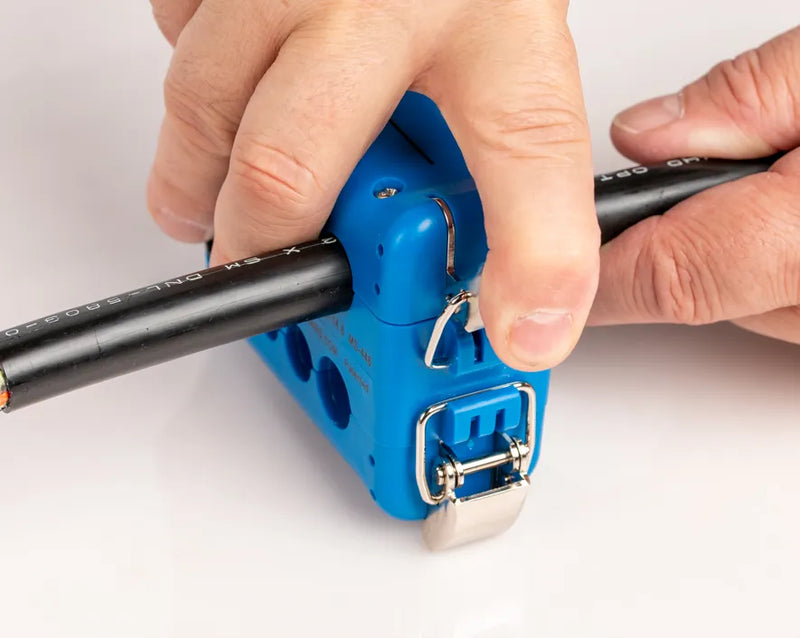

- One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
- Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go

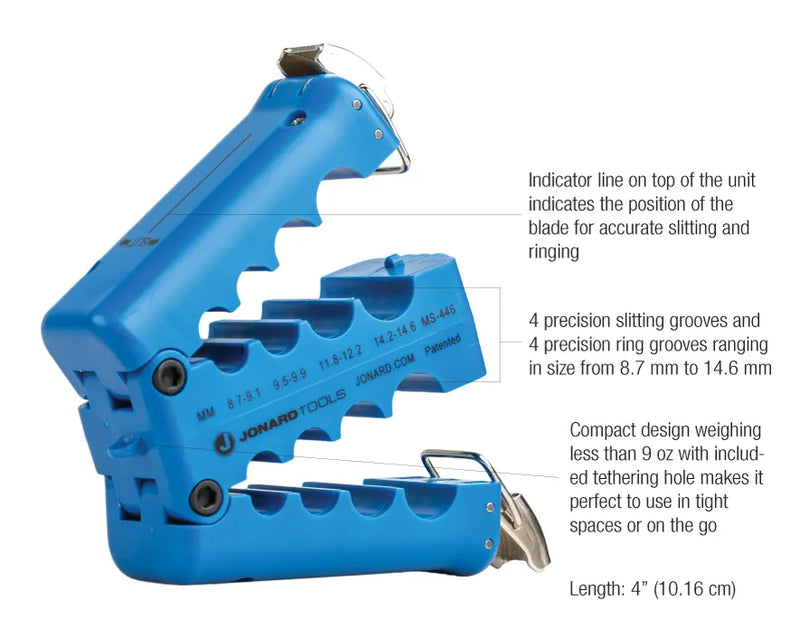

- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for AFL's Heavy Duty OSP MicroCore® (LMHD-Series) cables and other similar style cables
- Replacement blade set available, part number: MS-446RB
- Blades last for 5,000 slits/cuts
- All of our MS Series Mid Span Tools are patented for their unique design and functionality. Our MS-426 won the 2019 Cabling Installation & Maintenance Gold award for innovation and our MS-6 won the same prestigious award in 2018!

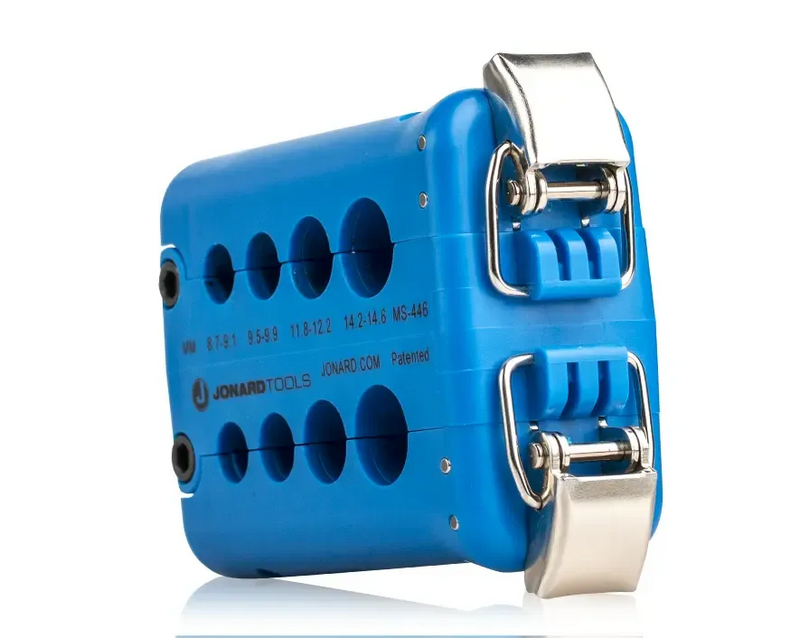

Groove Sizes: 8.7-9.1 mm | 9.5-9.9 mm | 11.8-12.2 mm | 14.2-14.6 mm
Function: Slit & Ring
Cable Diameter: 8.7 mm-14.6 mm
DOCUMENTS
Mid Span Slit & Ring Tool Datasheet
SPECIFICATIONS
| Cut Type |
Slit, Ring |
|---|---|
| Number of Slitting Grooves |
4 |
| Number of Ringing Grooves |
4 |
| Cable Type |
Heavy Duty OSP MicroCore® (LMHD-Series) |
| Cable Diameter |
8.7 mm - 14.6 mm |
| Dimensions |
4" x 1.5" x 3.1" (101 mm x 38 mm x 79 mm) |
| Weight | 0.54 lb (244.252 g) |
| UPC # | 810053350775 |
Common Questions About the Jonard Tools MS 446 Mid Span Slit and Ring Tool
What is the Jonard Tools MS 446 used for?

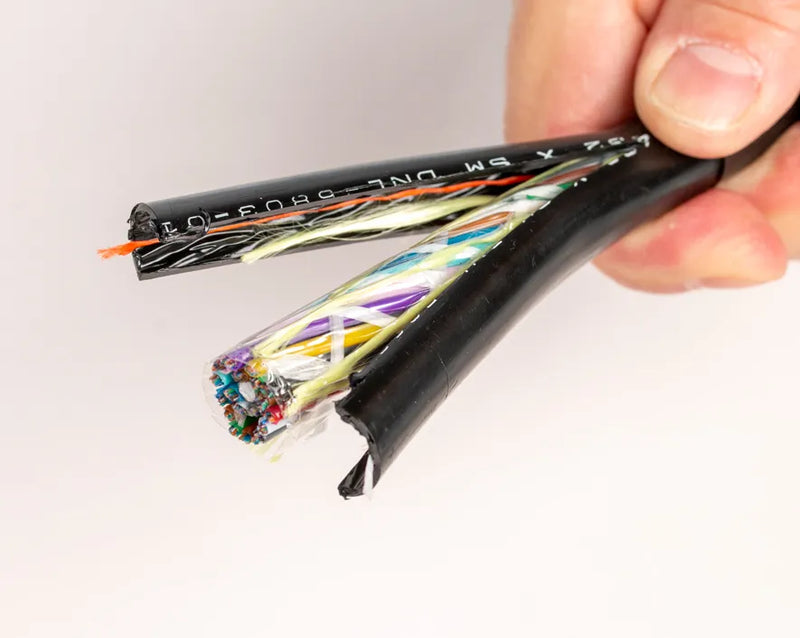

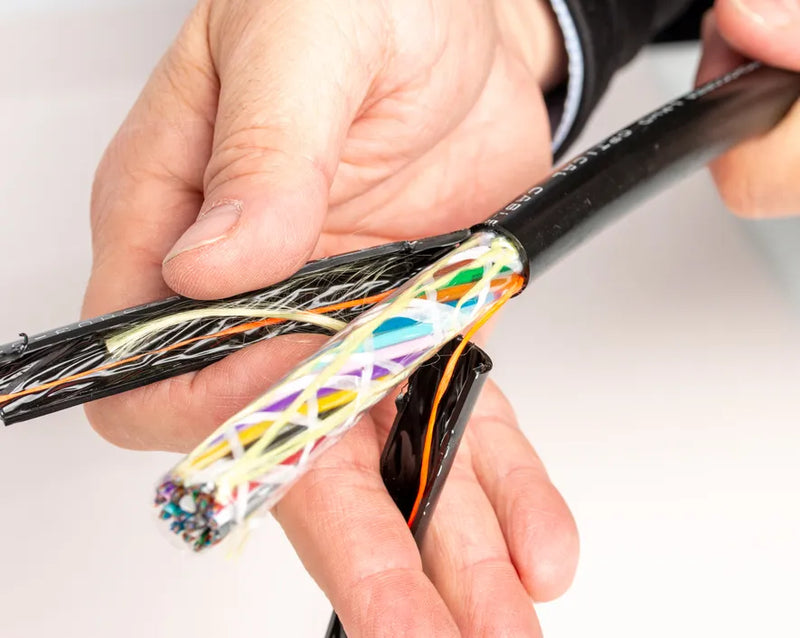

The Jonard Tools MS 446 is used to perform mid span access on fiber optic cables by slitting and ringing thick walled jackets without damaging the internal fibers.
Who is this tool designed for?
This tool is designed for fiber technicians, telecommunications crews, and outside plant professionals working with AFL Heavy Duty OSP MicroCore LMHD Series cables and similar cable constructions.
What makes the MS 446 different from other mid span tools?
The MS 446 is specifically designed for thicker cable jackets and combines precision slitting and ringing grooves in one compact tool, allowing accurate longitudinal and radial cuts across multiple cable diameters.
At a Glance
• Mid span slit and ring tool for thick walled fiber optic cables
• Designed for AFL Heavy Duty OSP MicroCore LMHD Series cables
• Supports cable diameters from 8.7 mm to 14.6 mm
• Compact and lightweight for field and aerial applications
