JONARD | Fiber Slit & Ring Tool for EZ | #EZSR-23
JONARD TOOLS | PART #EZSR-23
Fiber Slit & Ring Tool for EZ
DESCRIPTION

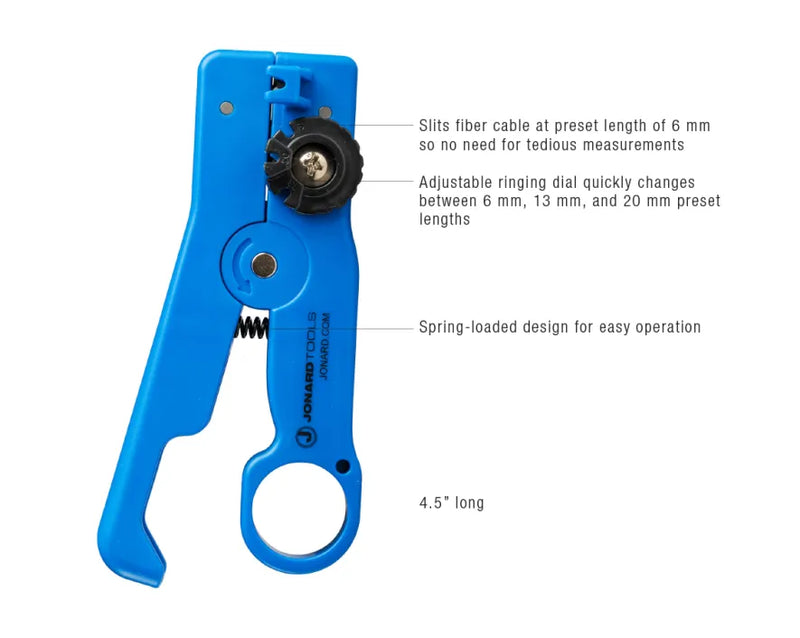

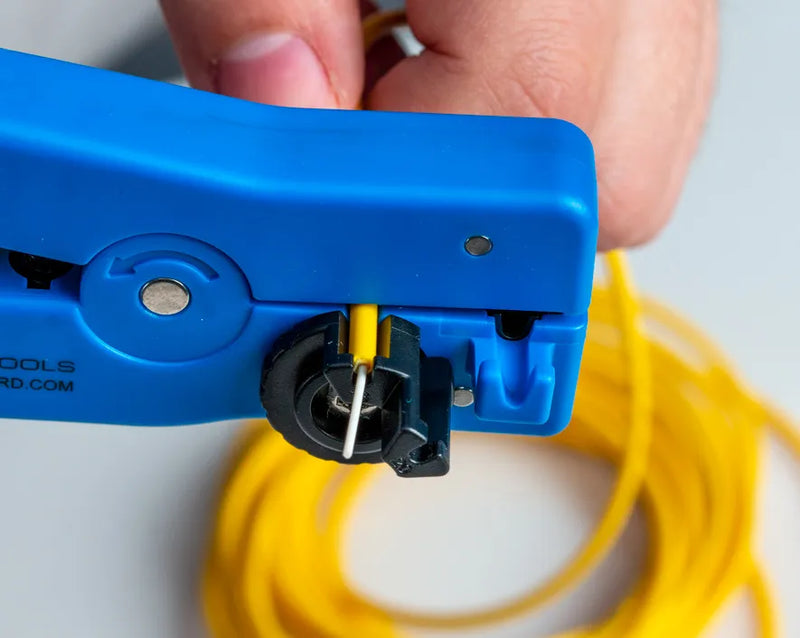

The EZSR-23 Fiber Slit & Ring Tool has been specially designed to prepare 2 mm and 3 mm fiber optic cables for connecting with Fitel EZ!Fuse™ SC & LC Splice-On Connectors. This tool saves time and makes the connecting process extremely easy by having a ringing dial and slitting channel with preset lengths. This slit and ring tool also features the following

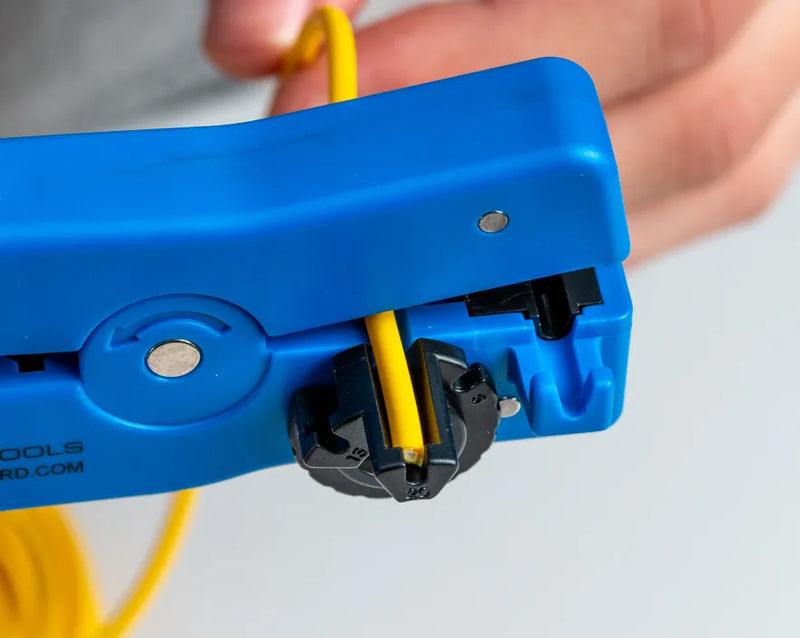

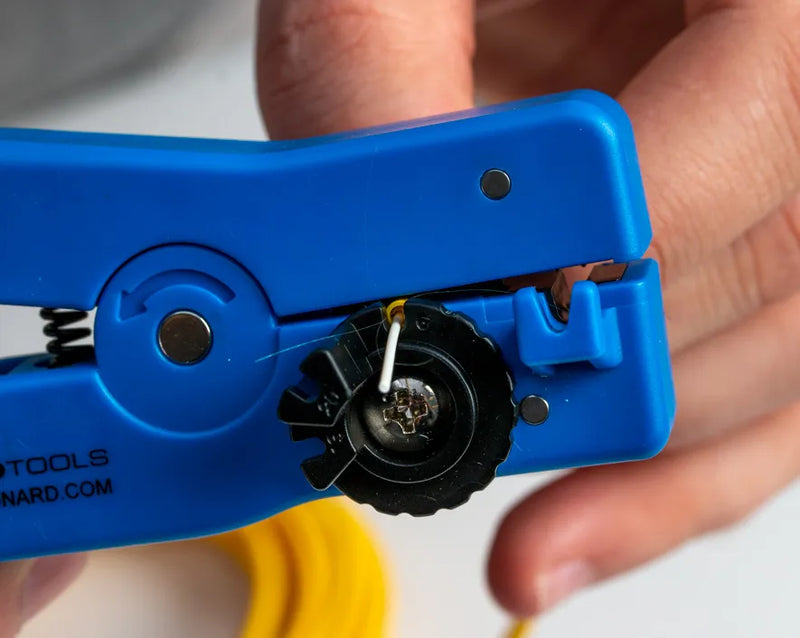

- Adjustable ringing dial quickly changes between 6 mm, 13 mm, and 20 mm preset lengths

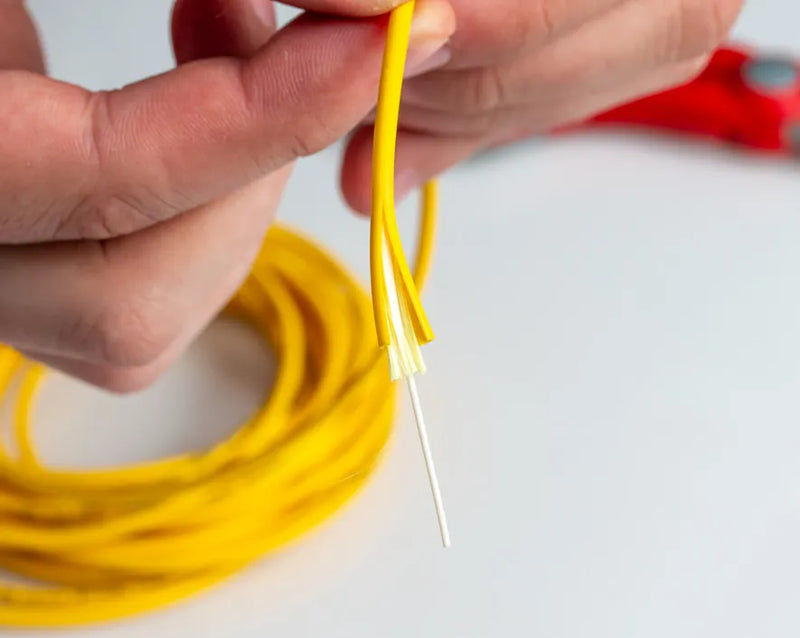

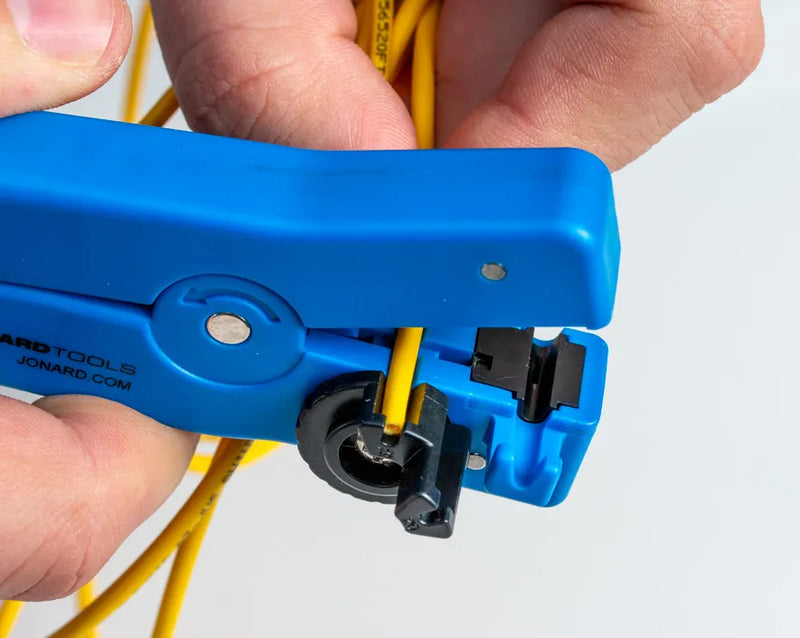

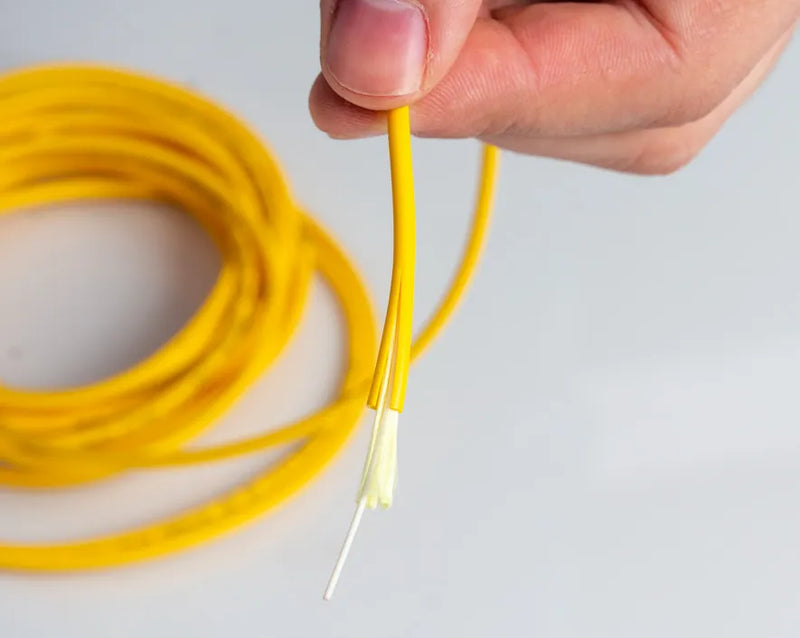

- Slits fiber cable at preset length of 6 mm so no need for tedious measurements

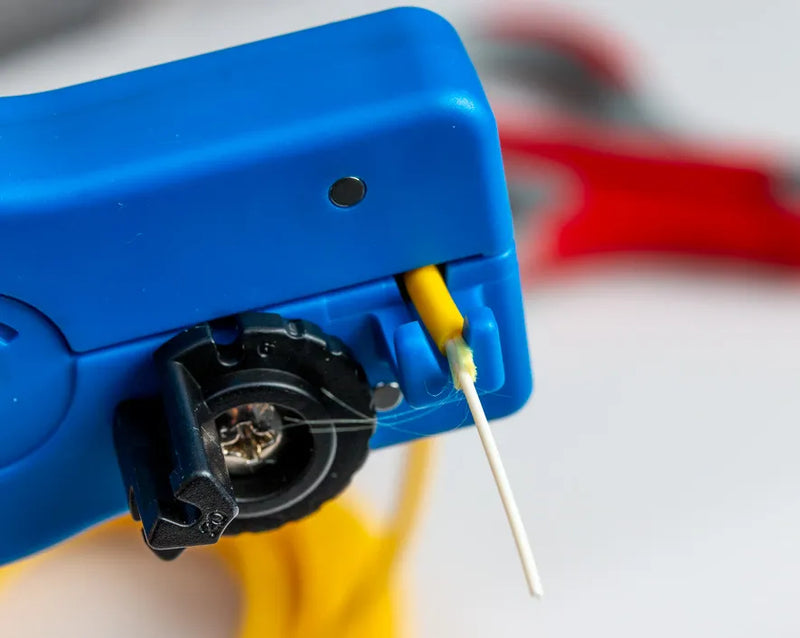

- 23 mm groove verifies bare fiber length before placing it in a fiber holder

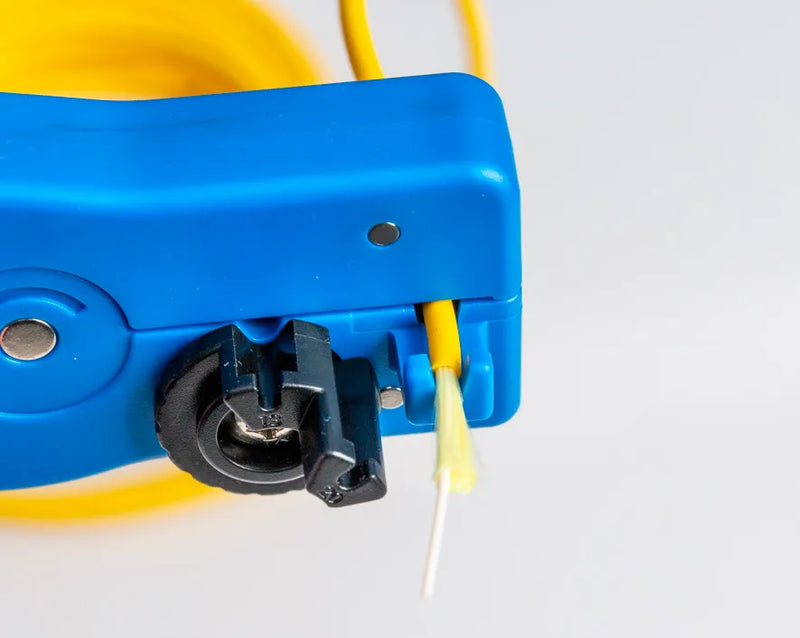

- 7 mm marking verifies the length of the exposed fiber after placing in a fiber holder
- Spring-loaded design for easy operation
DOCUMENTS
EZSR-23 Fiber Slit & Ring Tool Datasheet
EZSR-23 Fiber Slit & Ring Tool Manual
SPECIFICATIONS
| Connector Type |
Fitel EZ!Fuse™ SC & LC Splice-On Connectors |
|---|---|
| Cable Type |
Fiber Optic |
| Material |
ABS |
| Overall Length |
4.50" (114.3 mm) |
| Dimensions | 4.45 in x 2.05 in x 1.22 in (11.3 cm x 5.2 cm x 3.1 cm) |
| Weight | 0.1 lb (46.308 g) |
| UPC # | 811490018679 |
Common Questions About the Fiber Slit and Ring Tool
What is the Fiber Slit and Ring Tool used for?
The Fiber Slit and Ring Tool is used to slit and ring 2 mm and 3 mm fiber optic cables at preset lengths when preparing fibers for EZ splice on connectors.
Who is this fiber slit and ring tool designed for?
This tool is designed for fiber optic technicians and installers using Fitel EZ fuse SC and LC splice on connectors during fiber termination.
What makes this slit and ring tool different from standard fiber prep tools?
This tool features preset slit and ring lengths, a spring loaded design, and built in length verification marks to speed up fiber preparation and reduce measurement errors.
At a Glance
• Prepares 2 mm and 3 mm fiber optic cables
• Preset slit and ring lengths for fast fiber prep
• Designed for EZ splice on SC and LC connectors
• Spring loaded design for easy, consistent operation
