JONARD | Insertion And Extraction Tool | #AR-910672
JONARD TOOLS | PART #AR-910672
Ā Insertion And Extraction Tool
DESCRIPTION
Compatible with nearly all connectors conforming to M81969/1-02, this tool is perfect for inserting and extracting size 20 front release contacts made by most manufacturers. This insertion tool features the following:
- Probes constructed from brass to prevent damage to contacts

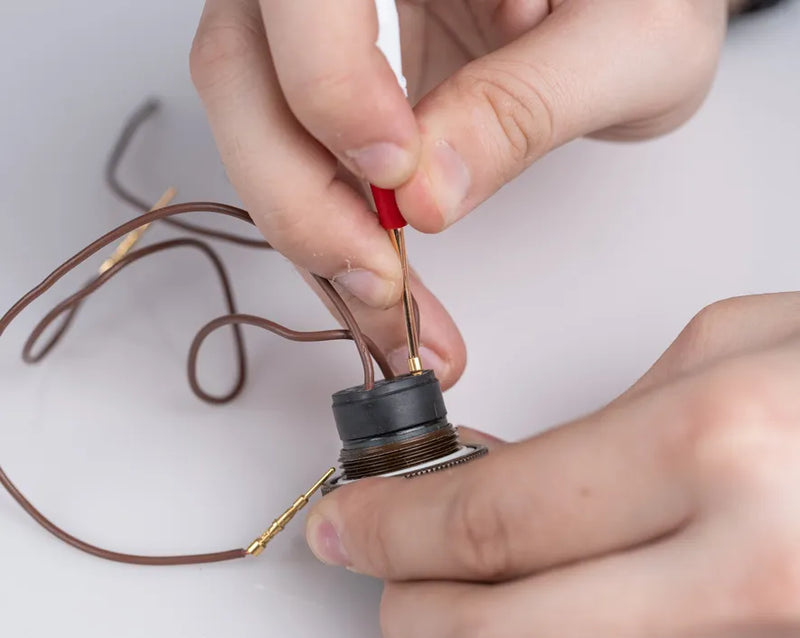

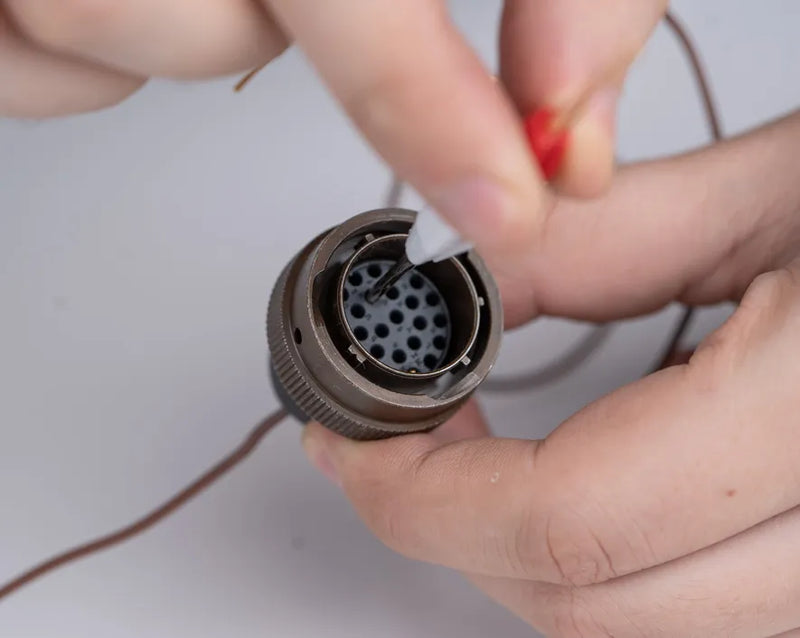

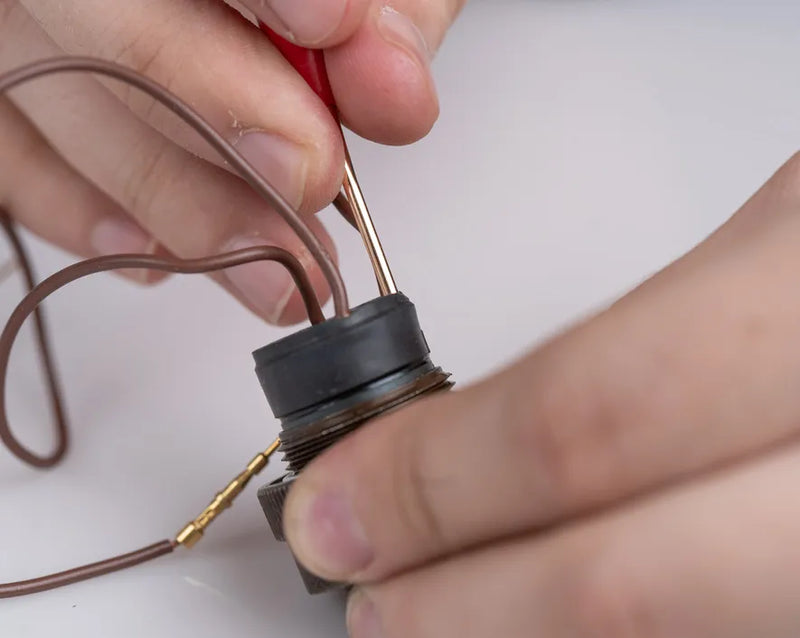

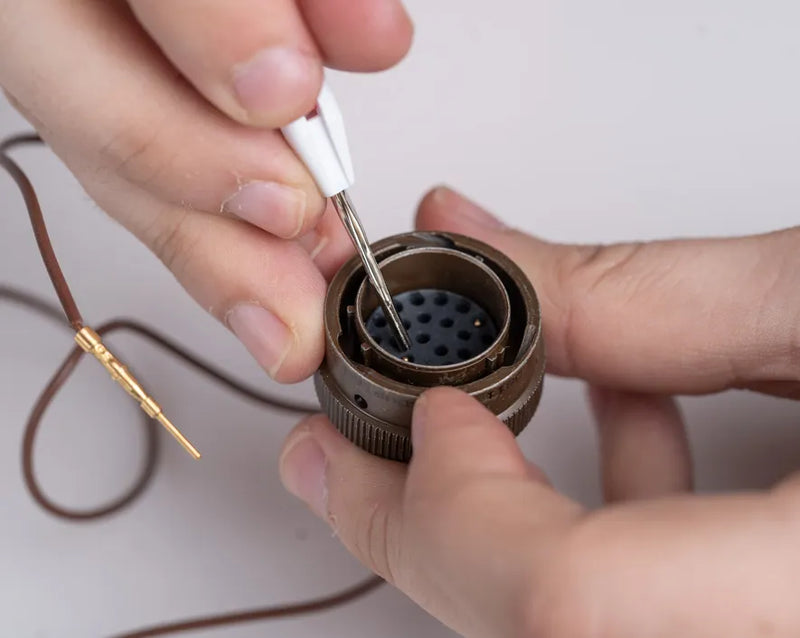

- Housing made from color-coded ABS: Red side is for insertion and white side is for extraction
- For use on TE Connectivity Amplimite series HDP-20 plugs and pins, including the following:
- 215712-1 Plug 15 POS Crimp SnapĀ
- 215711-1 Plug 9 POS Crimp SnapĀ
- 1218266-1 Pin 18 AWG Gold CrimpĀ
- 194081-1 Pin 1.04 mm without Louver BandĀ
- 205089-2 D-Sub Pin 20-24 AWG Crimp
Common Questions About the AR 910672 Insertion and Extraction Tool
What is the AR 910672 Insertion and Extraction Tool used for?
The AR 910672 is used to insert and extract size 20 front release contacts in connectors conforming to M81969/1-02.
Who is this insertion tool designed for?
This tool is ideal for telecom technicians, electronics assemblers, and field professionals working with TE Connectivity Amplimite HDP-20 plugs and pins.
What makes the AR 910672 different from standard insertion/extraction tools?
The tool features brass probes to prevent contact damage, a color-coded ABS housing for insertion (red) and extraction (white), and compatibility with multiple TE Connectivity plugs and pins for precision handling.
At a Glance
ā¢ Insertion and extraction tool for size 20 front release contacts
ā¢ Brass probes prevent damage to connectors
ā¢ Color-coded ABS housing: red for insertion, white for extraction
ā¢ Compatible with TE Connectivity Amplimite HDP-20 plugs and pins
