JONARD | Dual Compression Tool - Short and Long Style F Connectors | #CTF-230
JONARD TOOLS | PART #CTF-230
Dual Compression Tool - Short and Long Style F Connectors
DESCRIPTION

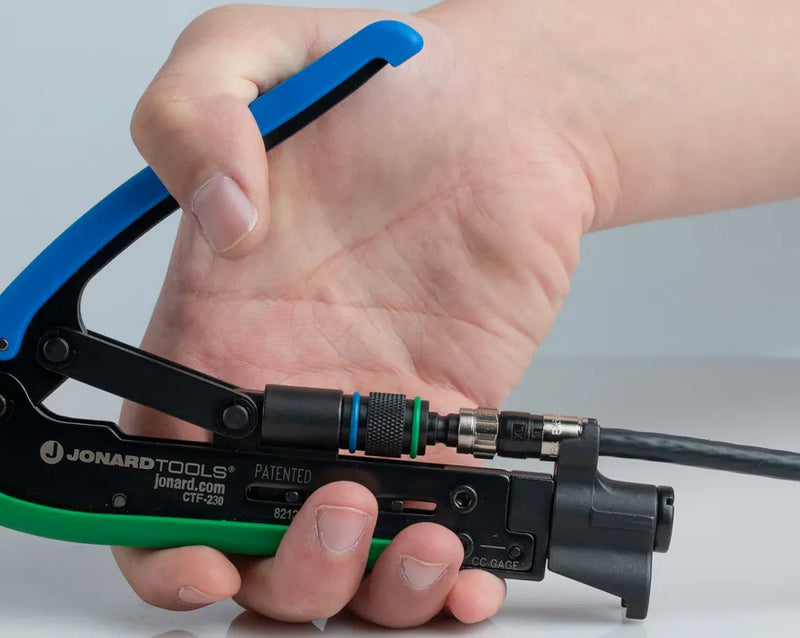

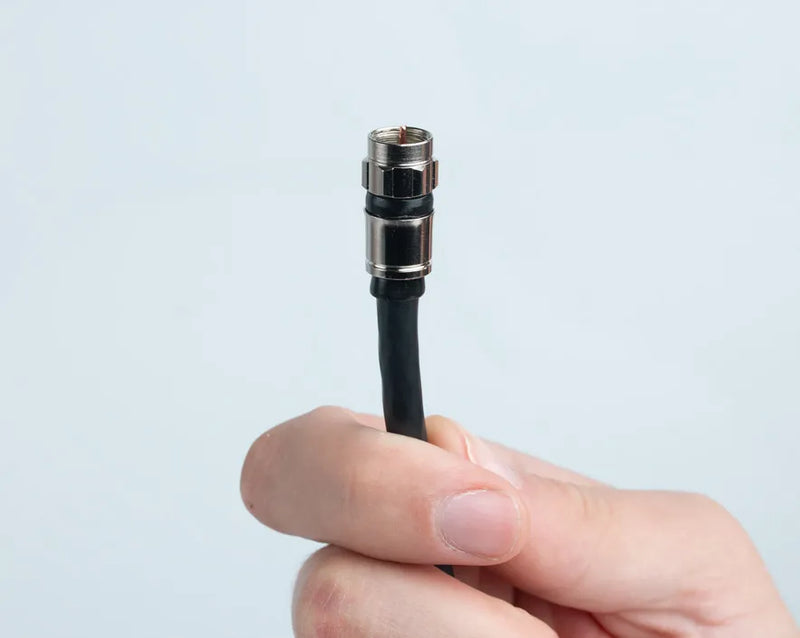

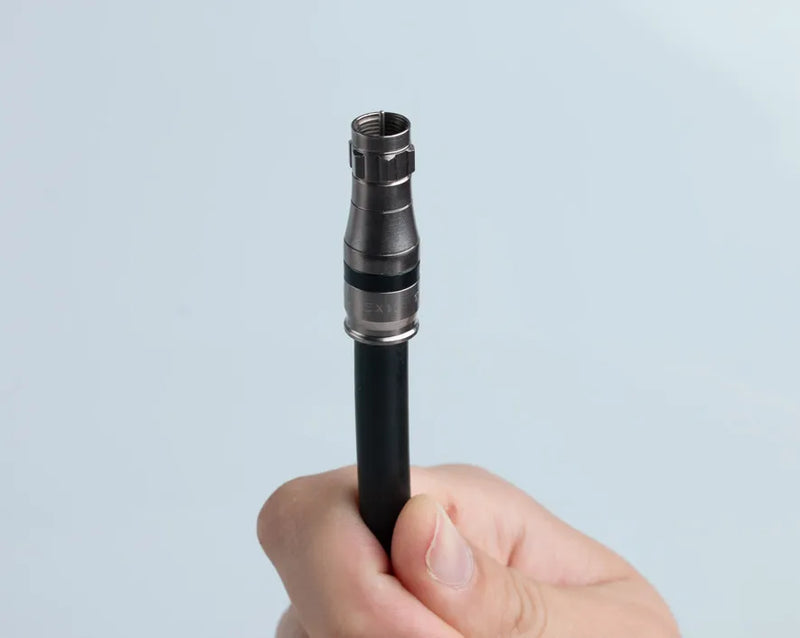

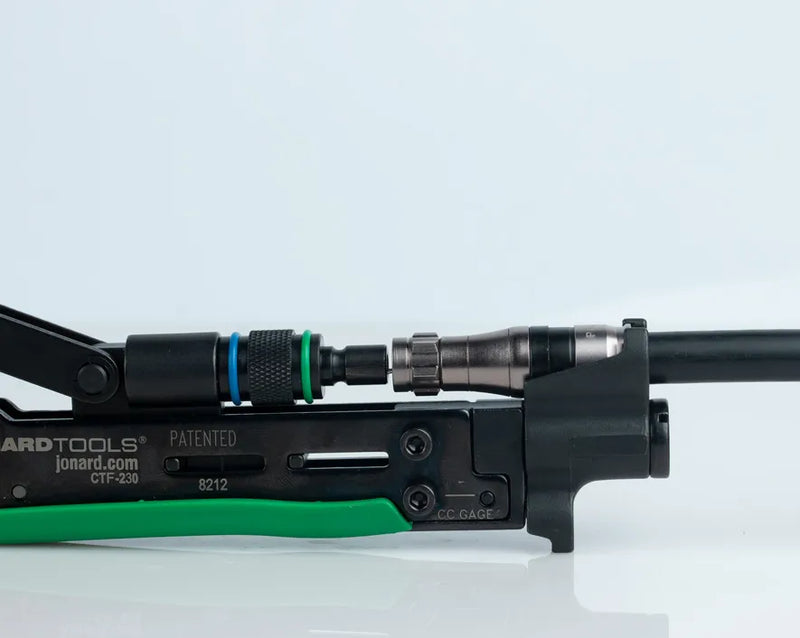

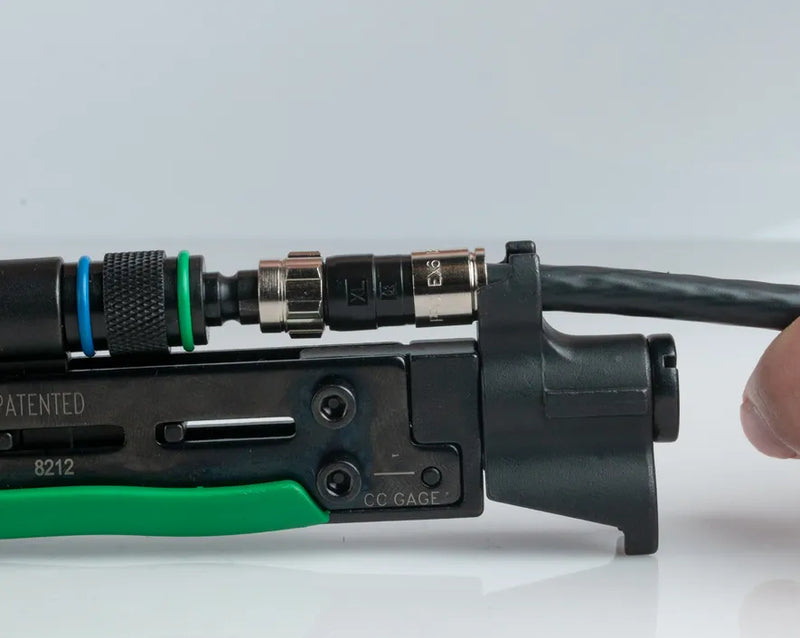

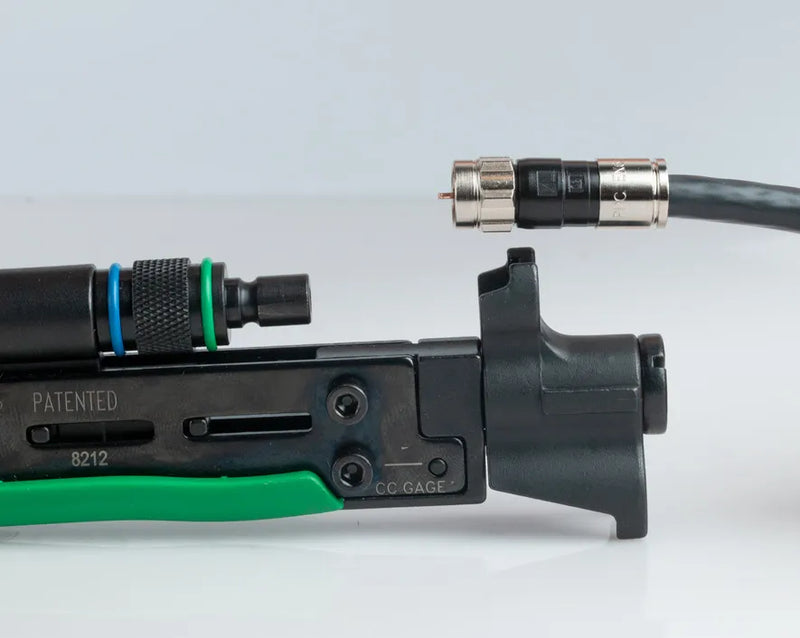

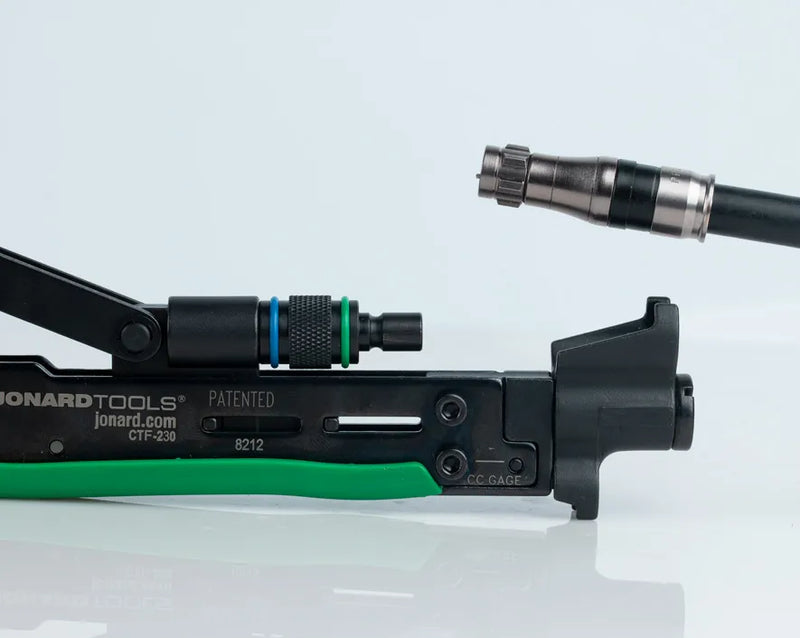

The Jonard Tools Dual Short and Long Compression Tool is designed for use on both short and long style F connectors, such as the PPC EX6 and PPC EX6XL connectors as well as most RG11 connectors. The green side of the plunger is for short style PPC EX6 connectors and the blue side is for long style EX6XL connectors. The tool is ideal for installing CATV network cables and features the following.

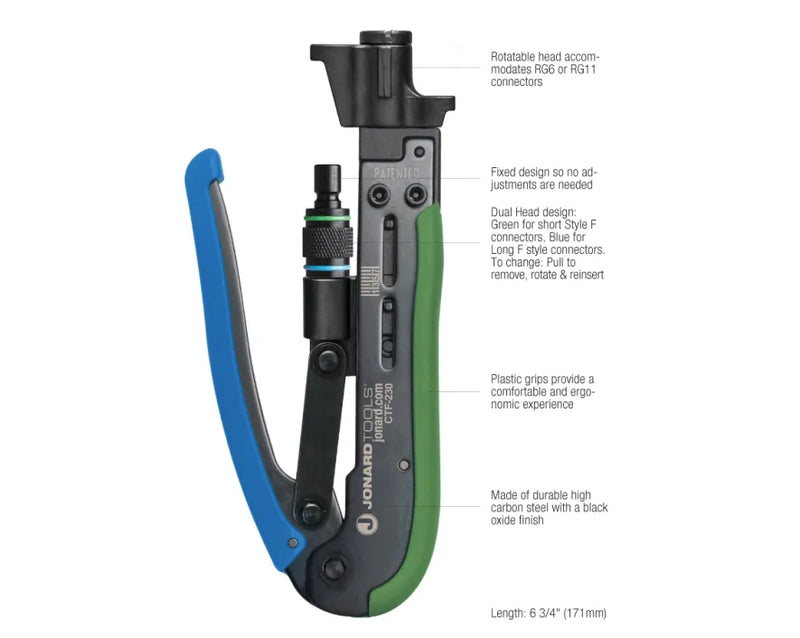

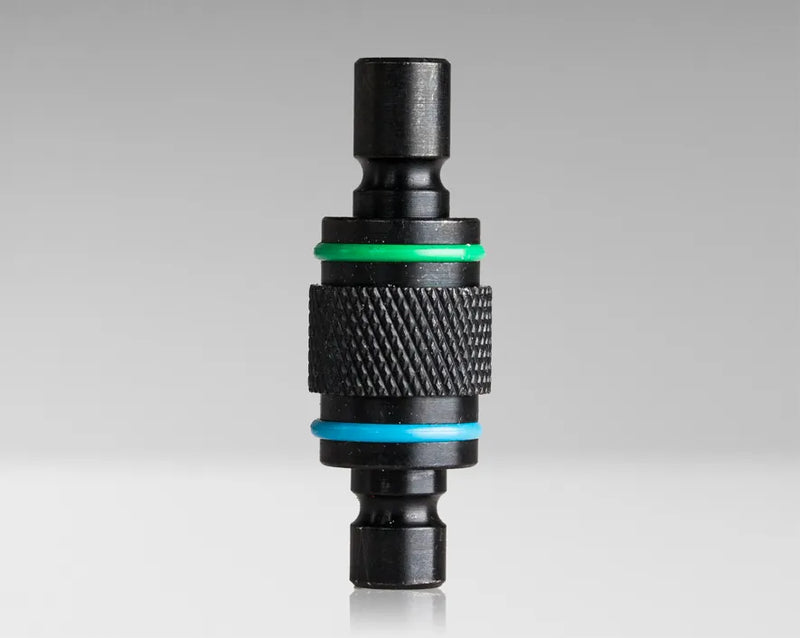

- Dual Head design: Green for short Style F connectors, Blue for Long F style connectors. To change: Pull to remove, rotate and reinsert
- Rotatable head to choose from RG11 or RG6 connectors
- Made of durable high carbon steel with a black oxide finish

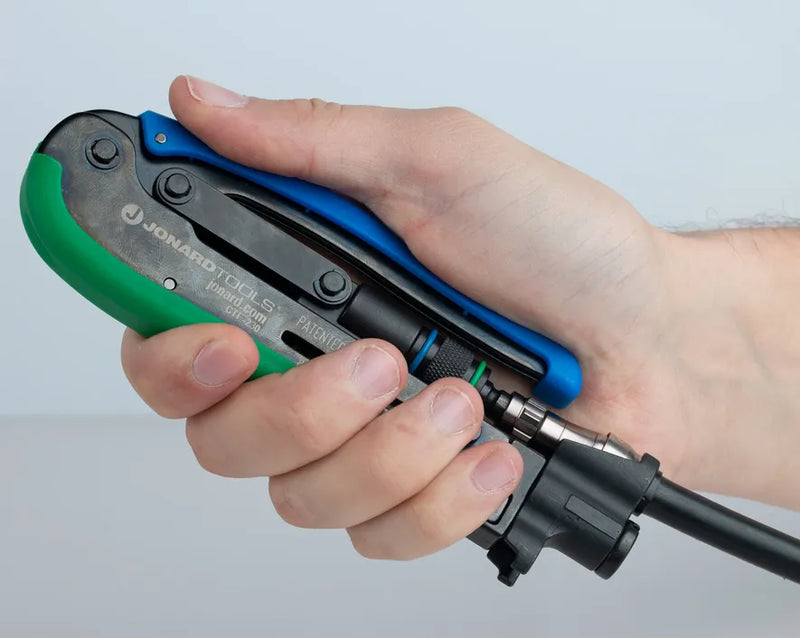

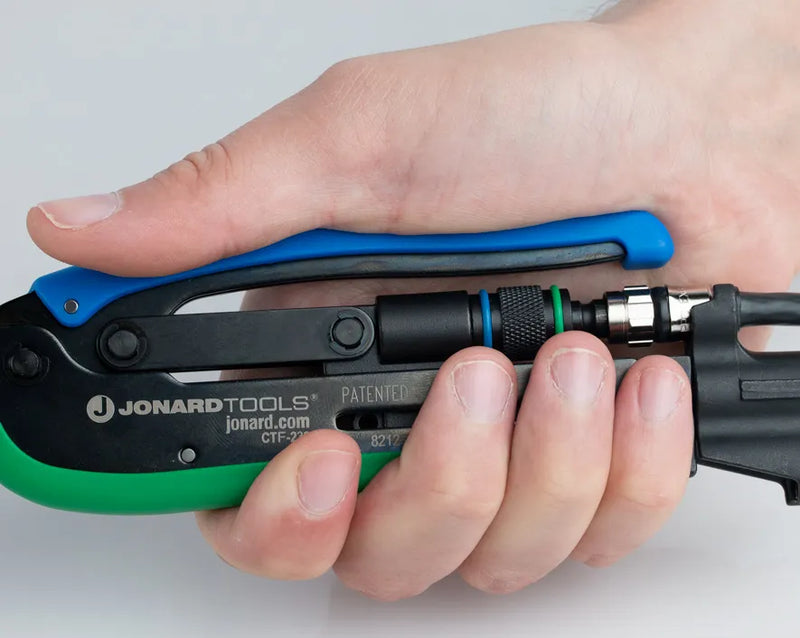

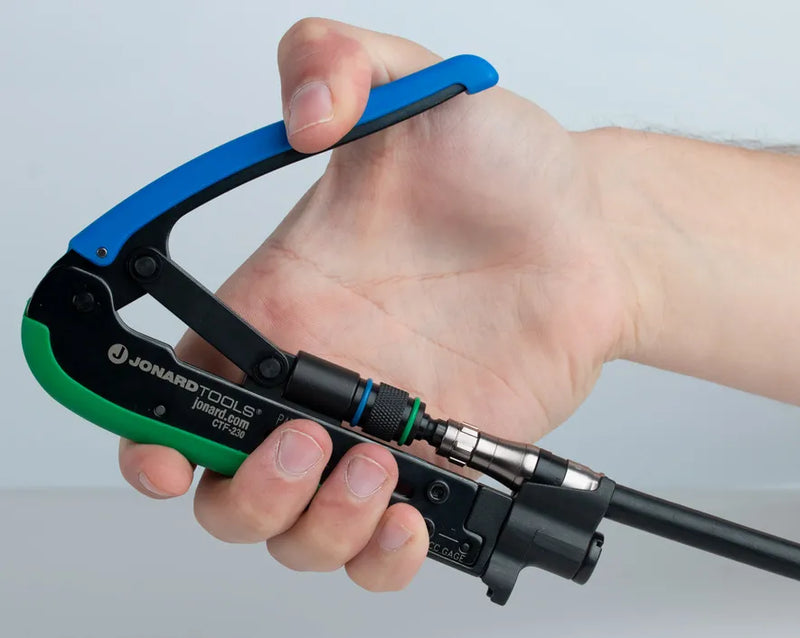

- Plastic grips provide a comfortable and ergonomic experience
- Fixed design so no adjustments are needed
Compatible Connectors:
- PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS, EX6IEC
- Digicon: DS6, DS59, DS59Q, DS11, DS7
- Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B
- Cablecon: CX3-F596, CX3-IECF, CX3-IECM, FM-RG11-CX3, FM-RG7-CX3, F-CX3
- Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH
- ATX Networks: 9-MPF-CQ
Plus many other brands and styles of short and long F connectors!
Model: F Short & F Long
DOCUMENTS
SPECIFICATIONS
| Connector Type |
F Short, F Long |
|---|---|
| Material |
Carbon Steel |
| Length | 6(15.24cm) |
| Weight | 0.97 lb (439.018 g) |
| UPC # | 811490016996 |
Common Questions About the CTF 230 Dual Compression Tool Short and Long Style F Connectors
What is the CTF 230 Dual Compression Tool used for?
The CTF 230 is used to install both short and long style F connectors, such as PPC EX6 and EX6XL, as well as most RG11 connectors.
Who is this compression tool designed for?
This tool is ideal for cable installers, telecom technicians, and field professionals working with short and long F connectors from PPC, Digicon, Belden, Cablecon, Corning Gilbert UltraEase, ATX Networks, and other compatible brands.
What makes the CTF 230 different from standard compression tools?
The CTF 230 features dual heads (green for short, blue for long), a rotatable head for RG6 or RG11 connectors, durable high carbon steel construction with black oxide finish, ergonomic plastic grips, and a fixed design requiring no adjustments.
At a Glance
• Dual compression tool for short and long style F connectors
• Green head for short F connectors, blue head for long F connectors
• Rotatable head accommodates RG6 and RG11 connectors
• High carbon steel construction with black oxide finish, ergonomic grips
