JONARD | Diagonal General Use Pliers | #DIAGB5
JONARD TOOLS | PART #DIAGB5

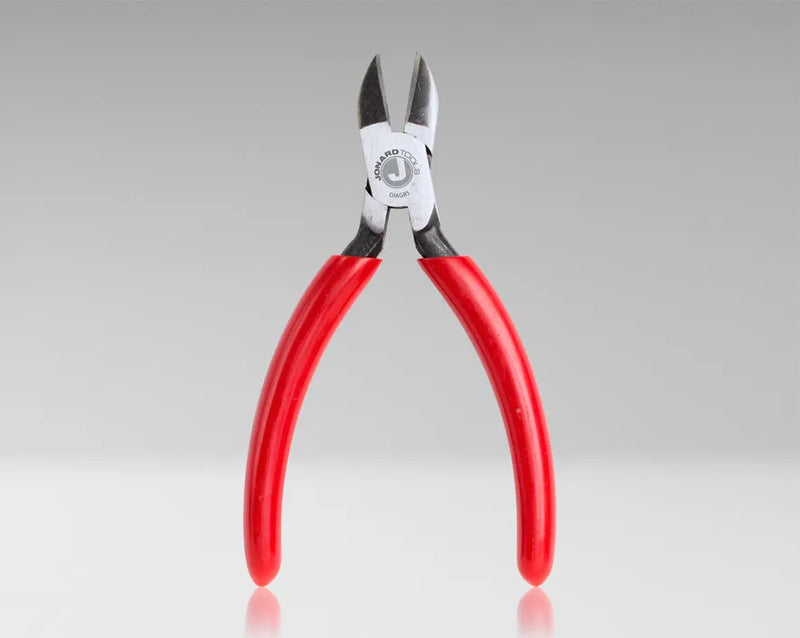

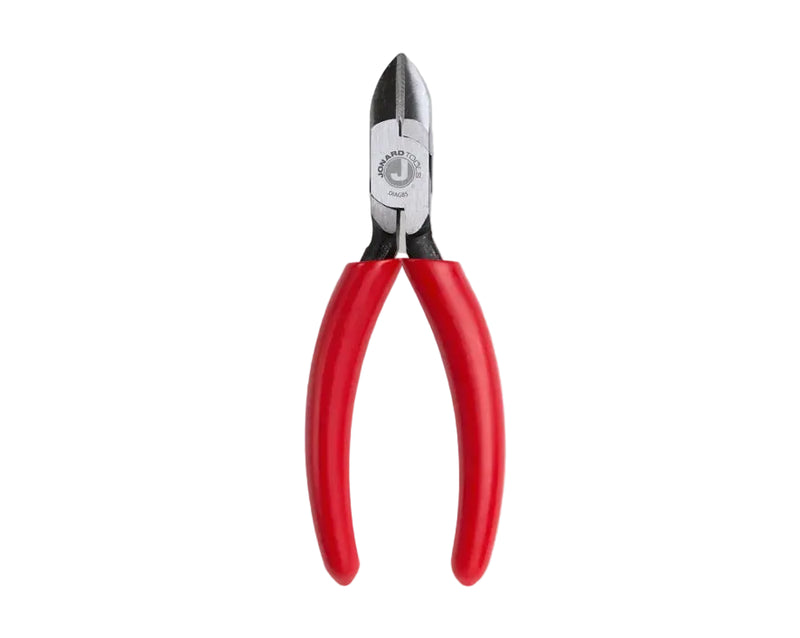

Diagonal General Use Pliers
DESCRIPTION

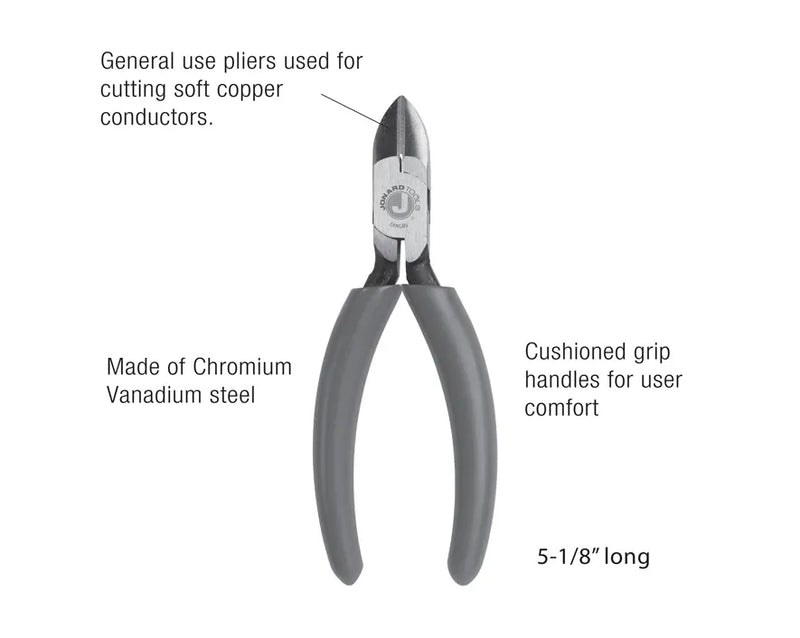

Jonard’s diagonal cutting pliers are made of polished chrome vanadium steel and are heat-treated for maximum strength and durability. These diagonal cutting pliers feature the following.

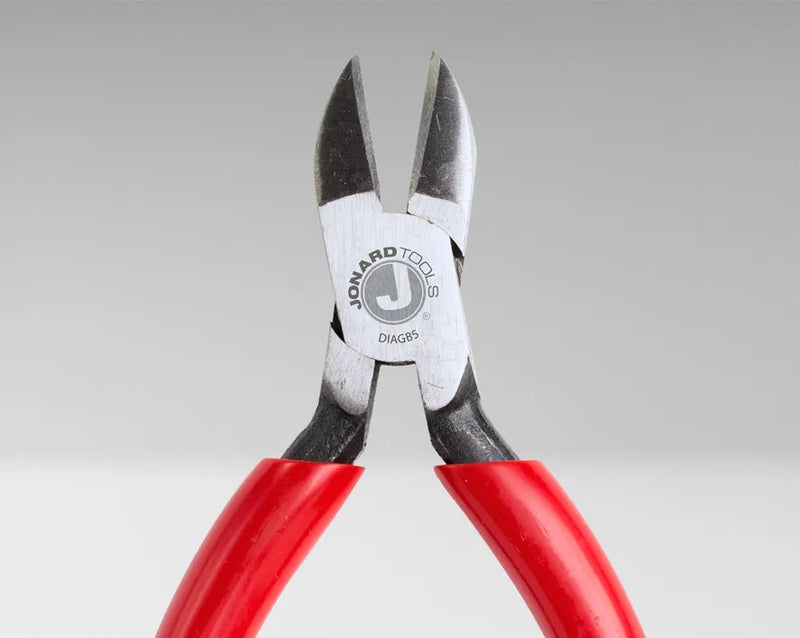

- Induction-hardened cutting edge to provide a clean cut every time
- Ergonomically designed handle with dipped plastic grip for greater comfort and torque
- This product complies with ASME B107.11 and ISO 5749 standards
Overall Length: 5 1/8" (130 mm)
DOCUMENTS
DIAGB5 Diagonal General Use Pliers Datasheet
SPECIFICATIONS
| Cut Type |
Diagonal |
|---|---|
| Jaw Length |
3/4" (19.05mm) |
| Jaw Thickness |
11/32" (8.73mm) |
| Jaw Width |
1/2" (12.70mm) |
| Material |
Chrome Vanadium Steel |
| Standards |
ASME B107.11 and ISO 5749 |
| Length | 5(12.7cm) |
| Weight | 0.18 lb (81.72 g) |
| UPC # | 811490012028 |
Common Questions About the DIAGB5 Diagonal General Use Pliers
What are the DIAGB5 Diagonal General Use Pliers used for?
The DIAGB5 pliers are used for cutting wire and general-purpose diagonal cutting applications.
Who are these diagonal pliers designed for?
These pliers are ideal for electricians, technicians, and field installers who need a durable, precision diagonal cutting tool.
What makes the DIAGB5 different from standard diagonal pliers?
The DIAGB5 features induction-hardened cutting edges, an ergonomic dipped handle for comfort and torque, polished chrome vanadium steel construction, and meets ASME B107.11 and ISO 5749 standards.
At a Glance
• General-use diagonal cutting pliers
• Induction-hardened cutting edge for clean cuts
• Ergonomic dipped handle for comfort and torque
• Chrome vanadium steel, compliant with ASME B107.11 and ISO 5749
