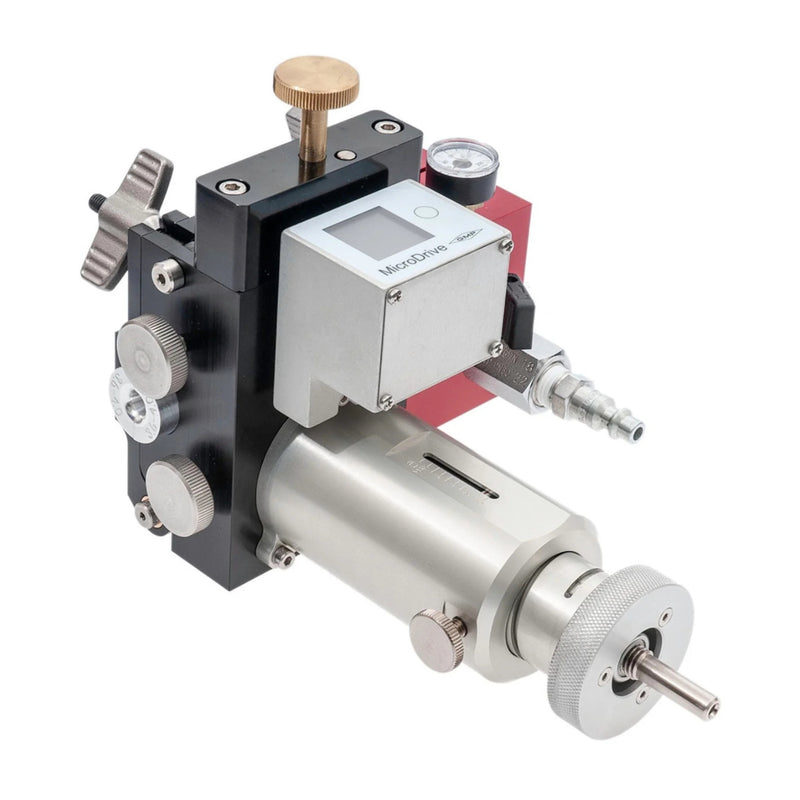

MicroDrive Cable Blower (89850)
IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE
Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please include the following information for faster processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
- MicroDrive Configurations (see below):
DESCRIPTION
Built with simplicity and reliability in mind, this blower is driven by an off-the-shelf battery-powered drill. Coupled with the driven roller is a precision clutch that you can dial in your custom torque settings. The MicroDrive offers battery-powered cable speed and distance counter along with a family of useful accessories. performance, portability, and ease of use.
- Placing Optical Fiber with the MicroDrive is safe and easy
- Built with simplicity and reliability in mind
- Blower is driven by an off-the-shelf battery powered drill
- Coupled with the drive roller is a precision clutch, which allows you to dial in your custom torque settings
- Offers a battery powered cable speed and distance counter
- A family of useful accessories are also available

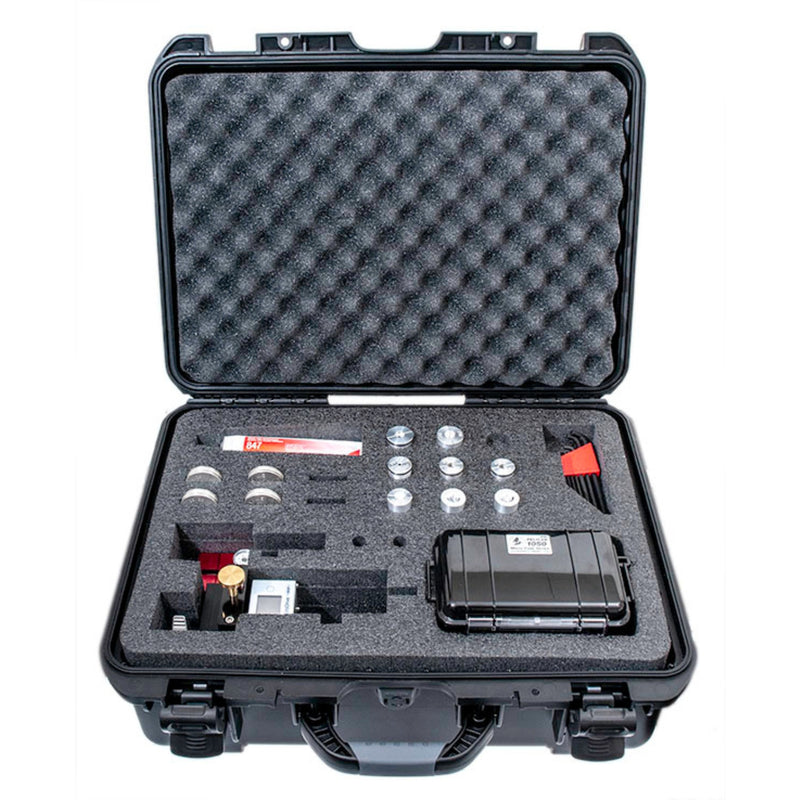

WHAT'S INCLUDED WITH YOUR MICRODRIVE
- MicroDrive Cable Blowing Machine
- (2) 9V Lithium Batteries
- Infeed Guide, Cable Seal Guide, Cable Seals and Drive Wheels for single cable size your choice
- Tube Clamps and Seals for single tube size your choice
- Toolkit
- Heavy duty storage case
- Quick Start Guide
SPECIFICATIONS
| Cable Diameter: 2.1-6.0mm |
| Tube Size (Outside Dia): 7.0, 8.0, 8.5, 10.0, 12.0, 12.7, 14.0, 18mm |
| Cable Speed (Adjustable): 0-300 ft/min (0-90 m/min) |
| Max Air Pressure: 220 psi. (15 bar) |
| Power Requirement: Variable Speed Drill with adjustable torque |
| Width: 9.7 in. (248mm) |
| Length: 5.6 in. (143mm) |
| Height: 6.6 in. (169mm) |
| Weight: Approx. 6 lbs (3.1Kgs Approx.) |
Common Questions About the GMP MicroDrive Cable Blower
What is the GMP MicroDrive Cable Blower?
The GMP MicroDrive Cable Blower is a compact, drill driven fiber blowing machine designed for safe and controlled installation of small diameter fiber optic cable.
What is the GMP MicroDrive Cable Blower used for?
It is used to install fiber optic cable into microduct and small duct systems where portability, precise torque control, and battery powered operation are preferred.
Who is the GMP MicroDrive Cable Blower designed for?
This blower is designed for fiber technicians, telecommunications contractors, and crews performing short run or access network fiber installations.
What makes the GMP MicroDrive Cable Blower different from other cable blowers?
The MicroDrive uses an off the shelf battery powered drill with a precision adjustable clutch, allowing custom torque control, along with a battery powered cable speed and distance counter for controlled fiber placement.
At a Glance
• Drill driven micro cable blower
• Adjustable precision clutch for torque control
• Battery powered speed and distance counter
• Designed for small diameter fiber installations
• Lightweight and portable design with storage case
