GMP | Hurricane Max Fiber Cable Blowing Machine | #GMP90054

by GMP
Original price $33,499.34 - Original price $33,499.34
Original price
$33,499.34
$33,499.34 - $33,499.34
Current price $33,499.34
GMP | PART #GMP90054

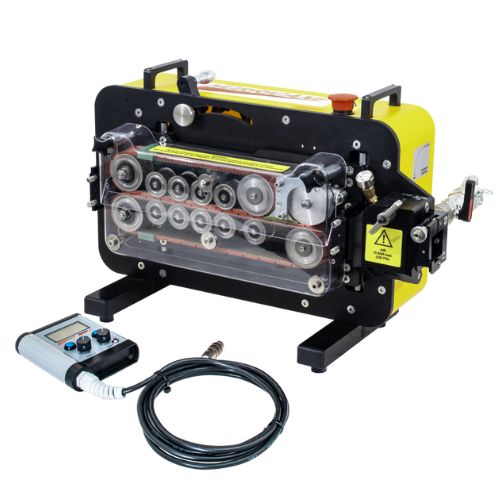

Hurricane Max Fiber Cable Blowing Machine (90054)

IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE

Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.

PHONE: 812-501-5043 EMAIL: orders@destinysolutions.us

When emailing, please include the following information for faster processing:

  • First & Last Name:
  • Company Name (if applicable):
  • Shipping Address:
  • Part Name:
  • Part Number:
  • Configurations (see below):

DESCRIPTION

The Hurricane has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed and advanced data logging.

Single-person operation with safe, easy-to-operate ergonomic controls combines low maintenance and high reliability to form the machine’s key features.

  • Dual Digital servo motor drive system
  • Digital cable speed and length monitoring
  • Advanced data logging system measures speed, force, distance, GPS location and environmental conditions (Android tablet included)
  • Auto stop facility when air stone fitted

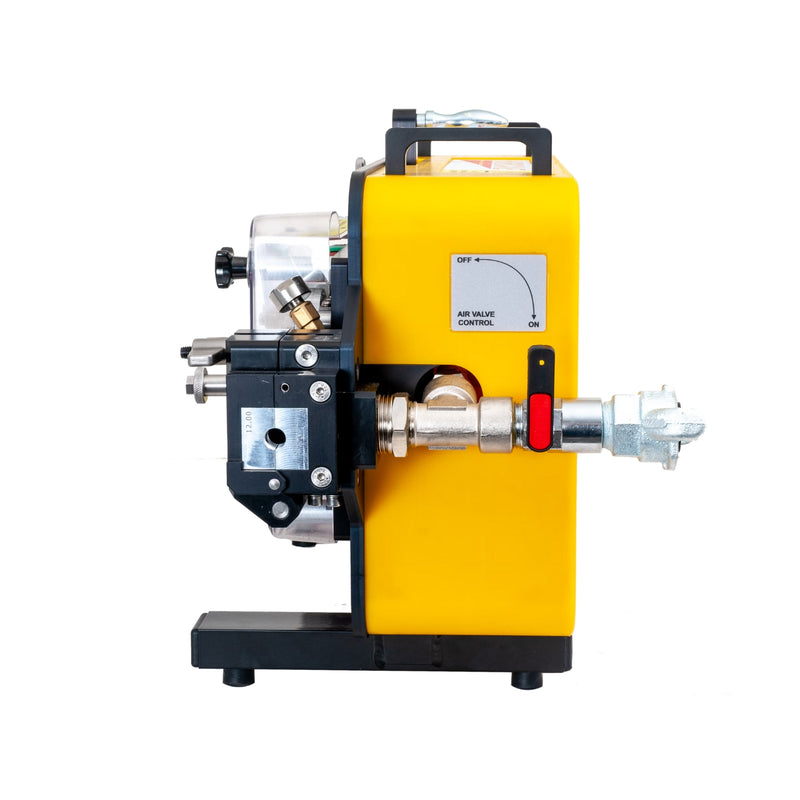

  • Integral air valve and pressure gauge
  • Allows forward and reverse operation
  • Installs an Industry-leading range of cables with one machine
  • Easy cable threading
  • Now, Flat Drop Ready

HURRICANE CONFIGURATIONS

WHAT'S INCLUDED WITH YOUR HURRICANE MAX

  • Hurricane Cable Blowing Machine
  • Remote Control
  • Android Tablet for data logging
  • Included every tube and cable size available at time of configuration
  • Toolkit

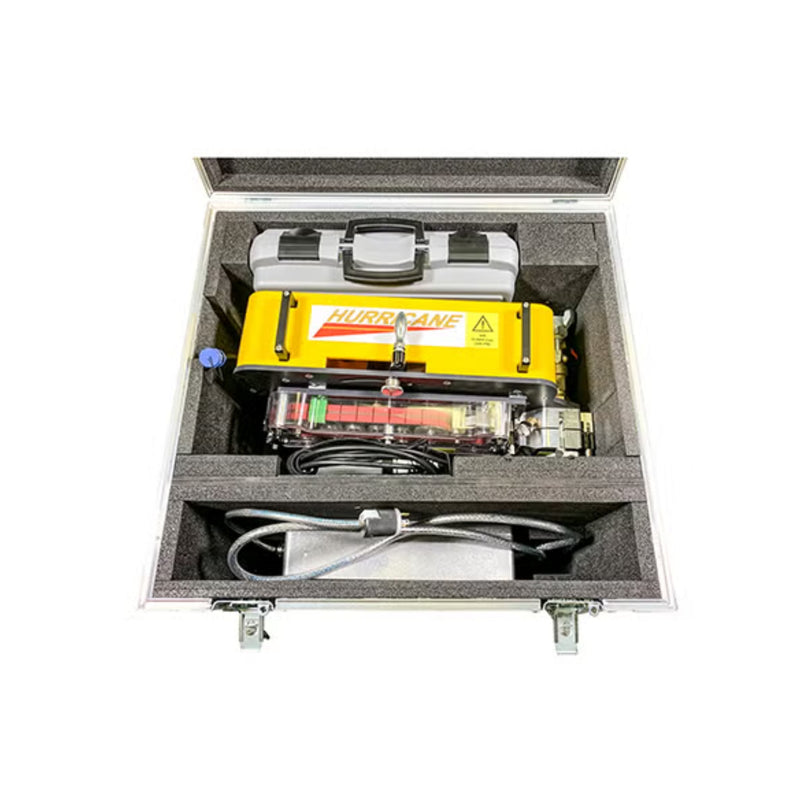

  • Travel Case for Hurricane and acessories
  • Manual

SPECIFICATIONS

OPERATING CAPACITIES   DIMENSIONS
Pushing Force: 0-95 lbs. (0-422N)   Weight: 53 lbs. (24kg)
Pushing Speed: 0-279 ft/min (85m/min)   Weight with case and power supply: 113.5 lbs. (51.5kg)
Cable Size: .10-.55" (2.5-14mm) O.D.   Dimensions (ht x length x width): 13 7/8" x 21 7/8" x 12"
352mm x 556mm x 305mm
Sub – Duct Size: .20-.98" SDR (5-25mm) O.D.
Micro - 5-25mm OD
SDR - .5 inch OD


PNEUMATIC SYSTEM   POWER REQUIREMENTS
Air Hose Bore (min):   90-264VAC 50/60 Hz
Operating Pressure: 220 psi (15 bar) Max
Flow: The air supply should be filtered, cooled, and dry



DOCUMENTS
