GMP | AirStream Cable Blowing Machine PLUS | #GMP89321
AirStream Cable Blowing Machine PLUS (89321)
IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE
Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.Ā
PHONE:Ā 812-501-5043Ā |Ā EMAIL:Ā orders@destinysolutions.us
When emailing, please include the following information for faster processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
DESCRIPTION

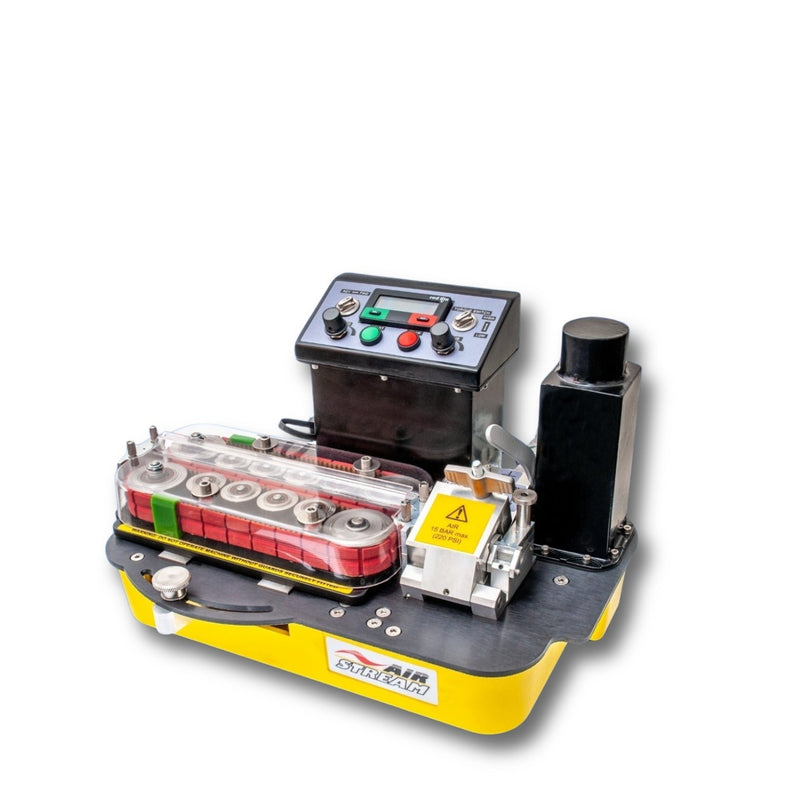

The Air Stream fiber blowing machine is designed to maximize protection for micro cables with a compliant double drive concept. Backed by the latest technology in servo controls, it provides precise control of torque and speed for smooth blowing fiber operations.
As a high-performance fiber optic blower, the Air Stream ensures reliable and efficient cable blowing while maintaining cable integrity. This precision-built GMP blower is a dependable blowing machine for professional fiber installation projects.
FEATURES
- Automatic Cable centralizing
- Synchronous high grip profiled compliant drive belts
- Tabletop design with ergonomic controls for ease of operation
- Forward and reverse Variable torque and speed controls
- Digital servo motor drive system
- Single person operation
- Digital cable speed and length monitoring
- Flat Drop compatible
- Auto stop facility when air stone fitted
- Integral air valve and pressure gauge
- Easy cable threading
- Polycarbonate safety guarding
- Lightweight and compact
- Low maintenance
- Travel case
SPECIFICATIONS
- Cable Diameter:Ā 2.5 to 11mm
- Tube Size (Outside Dia):Ā 5 to 18mm
- Cable Speed (Adjustable):Ā 0-260 ft/min (0-80m/min)
- Air Pressure:Ā 145-215 psi (10-15 Bar)
- Power Requirement:Ā 110/220 Volt AC
- Width:Ā 11.8 in. (300mm)
- Length:Ā 18 in. (460mm)
- Height:Ā 10.6 in. (270mm)
WHAT'S INCLUDED WITH YOUR AIRSTREAM PLUS
- AirSteam Cable Blowing Machine
- Tube Collet and clamp assembly for (3) of the most popular tube sizes
- Cable Guide assembly for (3) of the most popular cable sizes
- Cable seal collet assembly for (3) of the most popular cable sizes
- Toolkit
- Travel Case
- Manual
