GMP | Accelair 3 Fiber Cable Blowing Machine | #GMP89601
Accelair 3 Cable Blowing Machine (89601)
IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE
Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please include the following information for faster processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
- Configurations (see below):
DESCRIPTION
Designed to suit the smaller end of fiber range.

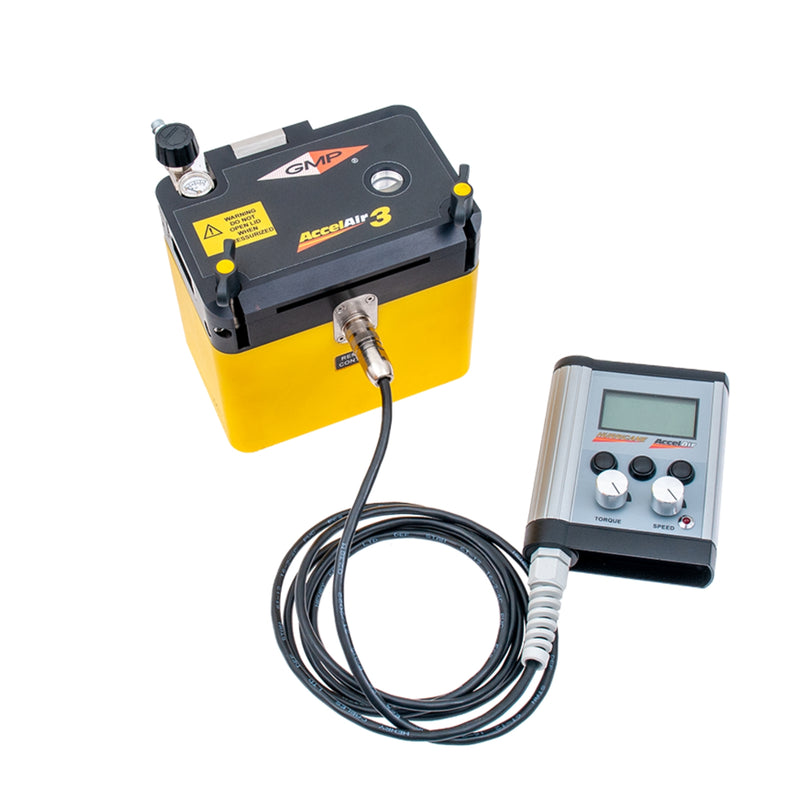

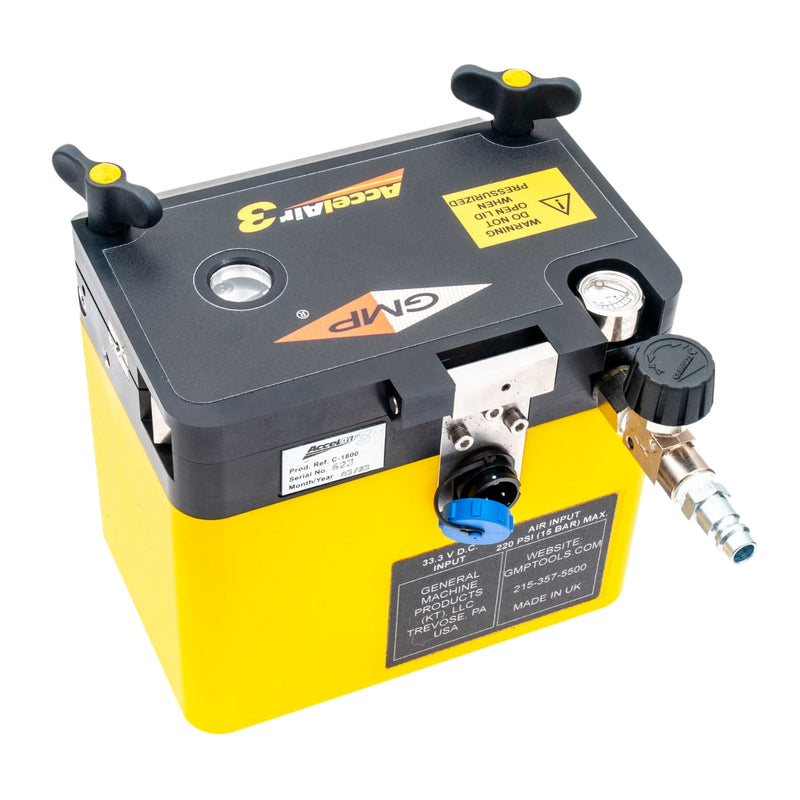

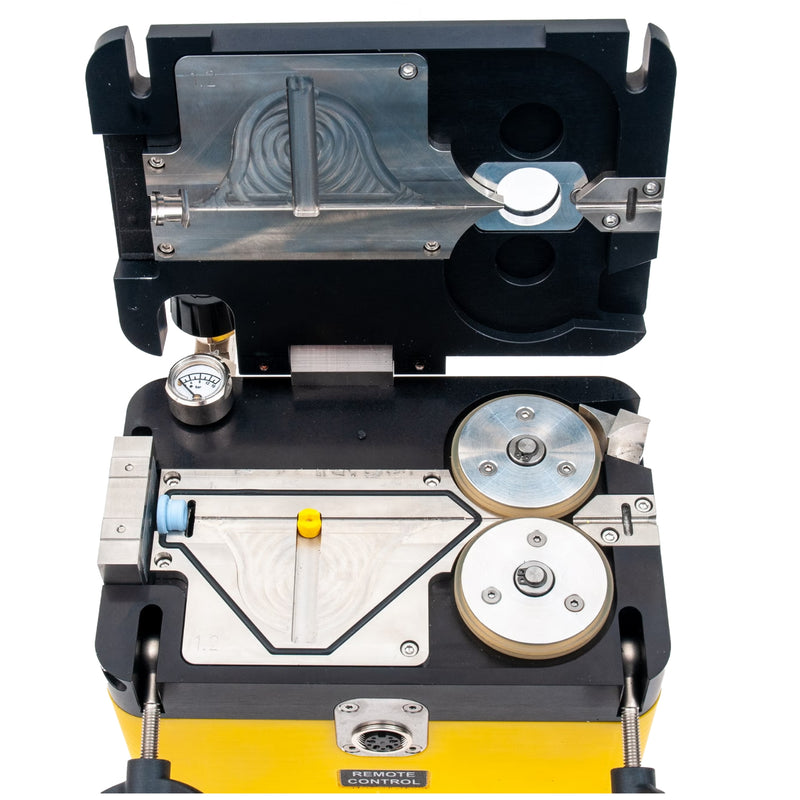

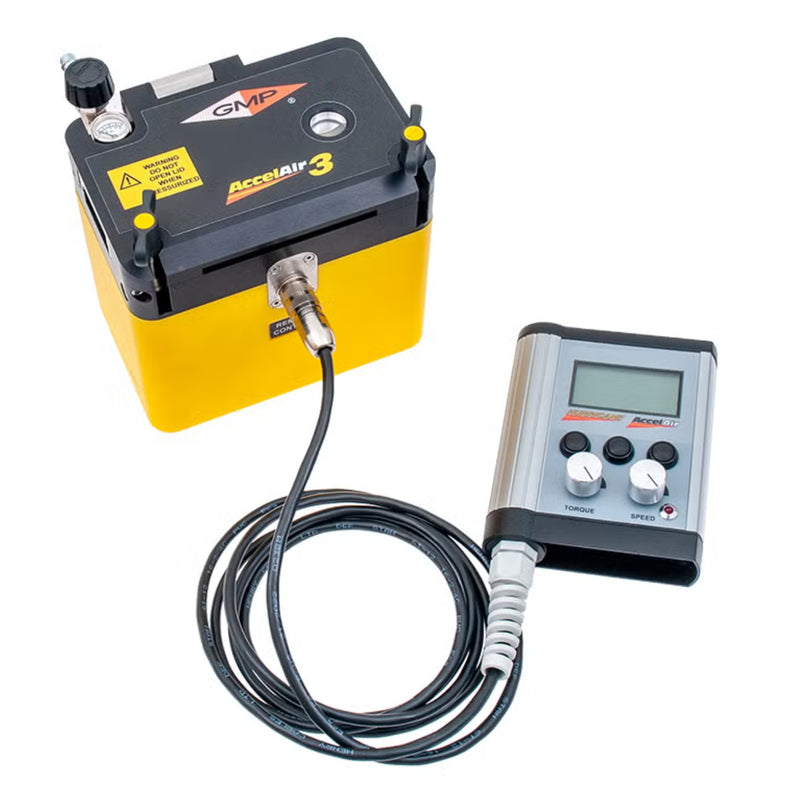

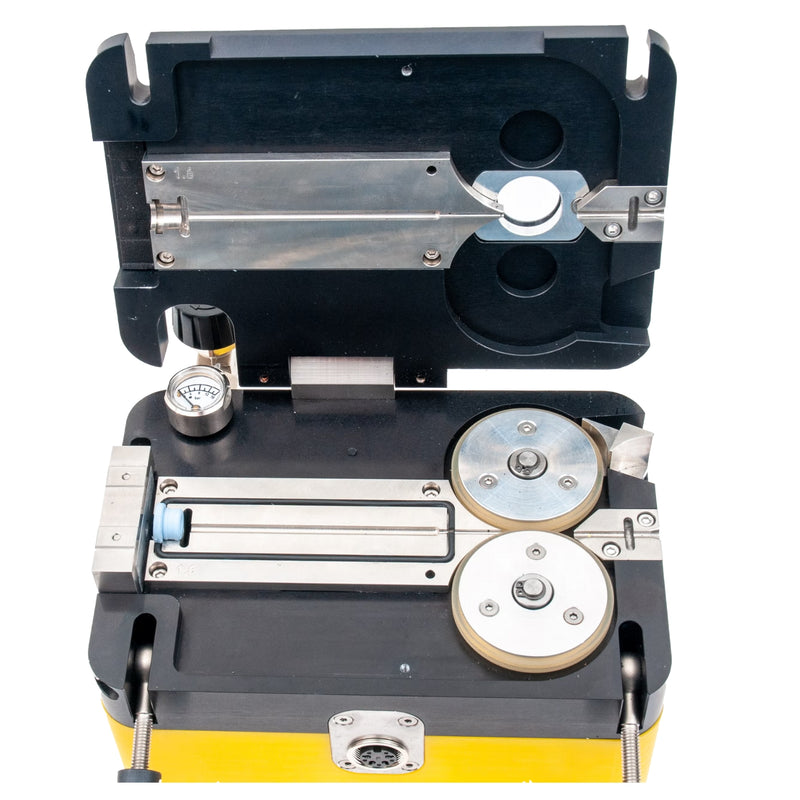

A compact integrated fiber-blowing machine, the AccelAir 3 benefits from full automation and fiber management. Its sophisticated fiber protection is designed to ensure that the blown fiber’s mechanical and optical integrity is maintained. The machine is self-contained and only requires a single electrical supply and compressed air to operate.
FEATURES
-
Installs cable diameters of 0.8–1.6 mm with buckle protection and 1.7–5 mm without buckle protection
-
Accommodates microduct sizes of 3–12 mm
-
Powered directly by the supplied 120/240v to 30V universal power supply
-
Lightweight, durable construction with precision machined parts
-
Single person operation for fast and efficient fiber blowing
-
Digital cable speed and length monitoring
-
Integral air valve and pressure gauge
-
Low maintenance design
-
Durable carrying case included
WHAT'S INCLUDED WITH YOUR WHISPER
- AccelAir 3 Fiber Blower / Cable Blowing Machine

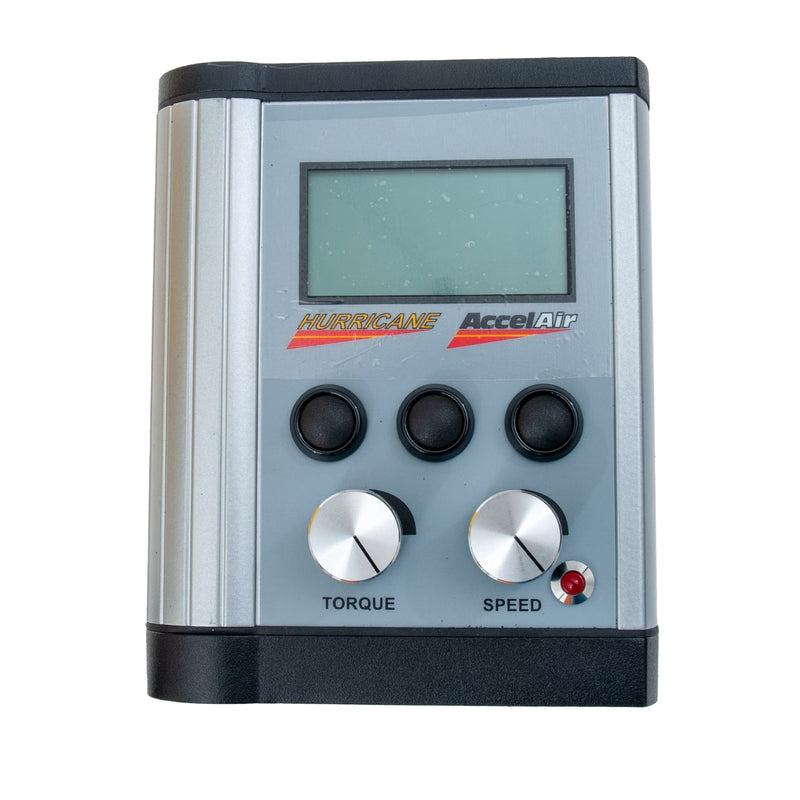

- Remote Control
- Buckle (w/5 shuttles) or blowing plate for (1) cable size of your choice
- Infeed guide for cable size of your choice
- Tube clamp and 5 seals for (1) tube size of your choice
- Toolkit

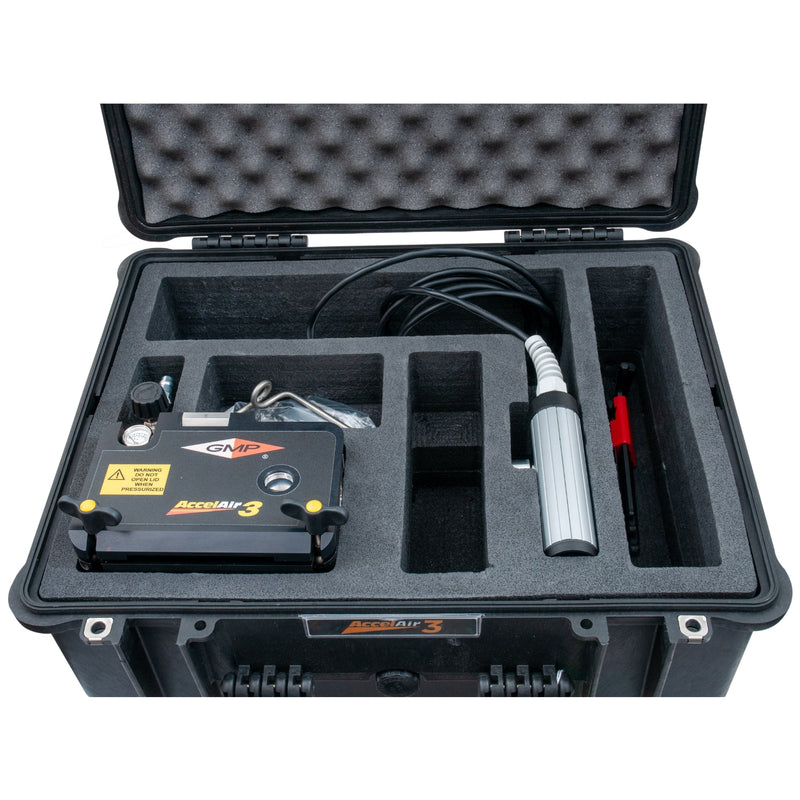

- Heavy-duty weatherproof case
- Manual
SPECIFICATIONS
- Cable Diameter: .8 to 5 mm
- Tube Size (Outside Dia): 3 to 12mm
- Cable Speed (Adjustable): 0-328 ft/min (0-100m/min) without buckle detection, 0-164 ft/min (0-50 m/min) with buckle detection
- Max Air Pressure: 220 psi (15 Bar) 8.5 cfm (.24 m/min)
- Power Requirement: 120/220v power supply or optional 24v battery pack
- Width: 7.2 in. (184 mm)
- Length: 6.5 in. (166 mm)
- Height: 8.5 in. (216mm)
- Weight: 6.6 lbs (3 kgs)
DOCUMENTS
Common Questions About the AccelAir 3 Cable Blowing Machine
What is the AccelAir 3 Cable Blowing Machine?
The AccelAir 3 Cable Blowing Machine is a compact, fully automated fiber blowing system designed for small diameter fiber and microduct installations.
What is the AccelAir 3 used for?
It is used to install small diameter fiber optic cables into microduct systems where precise control, fiber protection, and single person operation are required.
Who is the AccelAir 3 Cable Blowing Machine designed for?
This machine is designed for fiber technicians, telecommunications crews, and contractors performing microduct fiber installations in access networks, buildings, and short run applications.
What makes the AccelAir 3 different from larger cable blowing machines?
The AccelAir 3 is lightweight, self contained, and fully automated, offering advanced fiber protection, digital speed and length monitoring, and easy setup for efficient small scale fiber installations.
At a Glance
• Compact fiber blowing machine for small diameter cable
• Supports microduct sizes from 3 to 12 mm
• Designed for single person operation
• Digital monitoring for cable speed and length
• Lightweight design with durable carrying case
