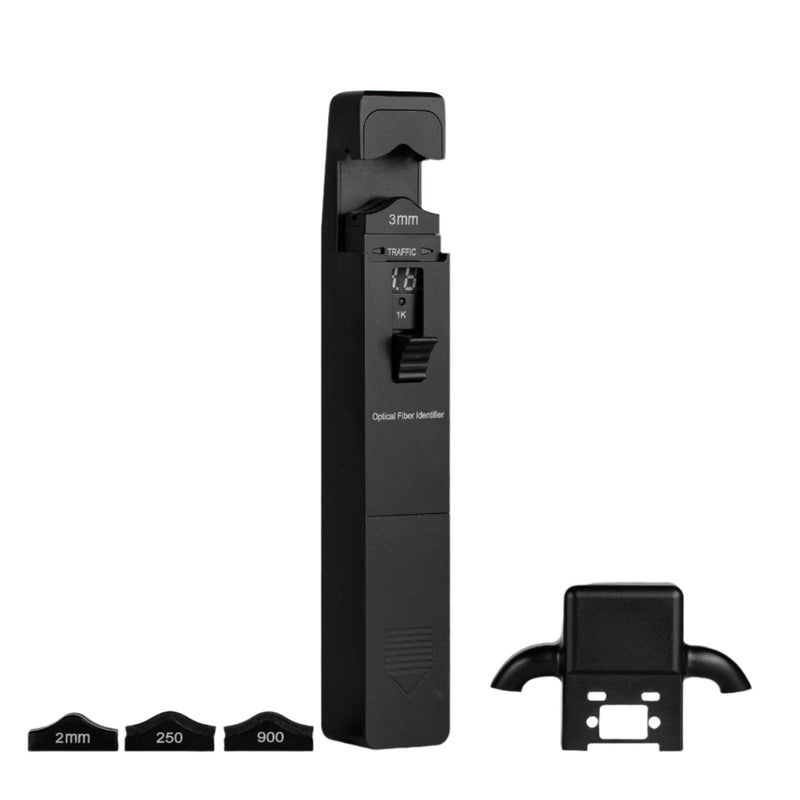

JONARD | Optical Fiber Identifier | #OFI-50

by Jonard
Sale Sale
Original price $559.95
Original price $559.95 - Original price $559.95
Original price $559.95
Current price $531.95
$531.95 - $531.95
Current price $531.95


Designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber, this fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network. This fiber identifier also features the following:

  • Easy-to-use one key operation
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning.
  • The display shows you the relative core power clearly
  • Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables
  • Included sunshade protects the fiber optic cable from interference to provide more accurate readings
  • Durable metal housing provides long life and durability
  • LED indicator lets you know when the battery is running low

Kit Includes:

  • Fiber Identifier
  • 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters
  • Sunshade
  • (1) 9V Battery
  • Carrying pouch


OFI-50 Optical Fiber Identifier Datasheet

OFI-50 Optical Fiber Identifier Instruction Manual


Identified Wavelength Range

800-1700 nm

Identified Signal Type

CW, 270Hz±5%,1kHz±5%,2kHz±5%

Detector Type

Ø1mm InGaAs 2pcs

Adapter Type

Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0

Signal Direction

Left & Right LED

Signal Direction Test Range

-46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)

Signal Frequency Display

270 Hz, 1 kHz, 2 kHz

Insertion Loss

0.8 dB (1310nm), 2.5 dB (1550nm)

Battery Type


Weight 0 lb (0 g)
UPC # 811490010901
