JONARD | Hardline Coring & Stripping Tool .875" |#HSC-875
JONARD TOOLS | PART #HSC-875

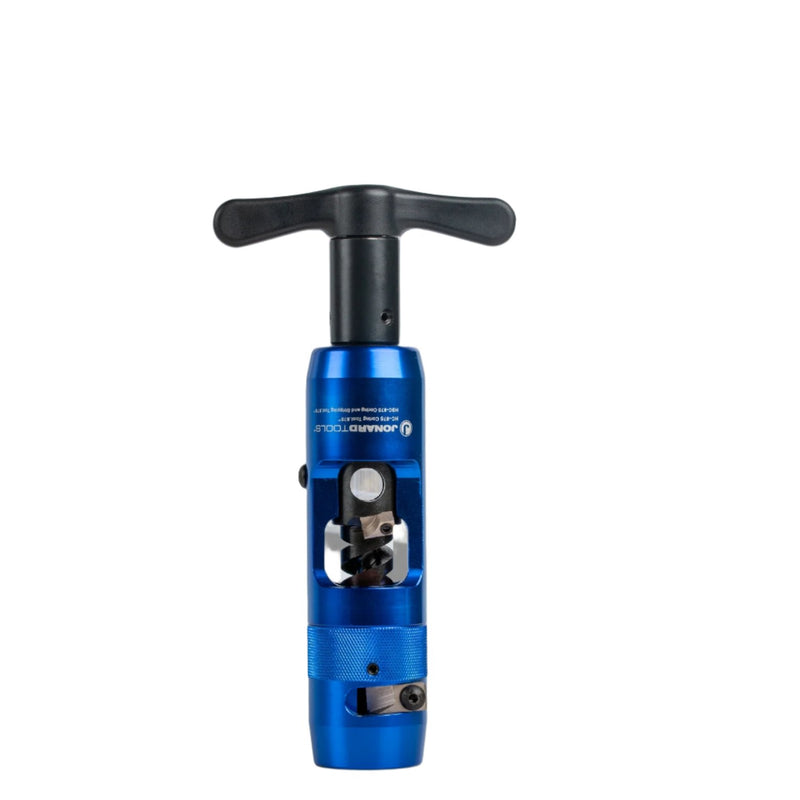

Hardline Coring & Stripping Tool .875"
DESCRIPTION
The HSC-875 hardline coring and stripping tool is designed to core and strip 875 Series COAX Cables (7/8”), such as the Times Fiber T10 and Commscope P3 cables. This coring and stripping tool features the following
- Performs both coring and stripping all in one tool, stripper can be easily removed to help deal with flooded cables
- Heavy duty aluminum body with stripping and coring blades made of high carbon steel and heat treated for long life
- T handle is a ratcheting handle for increased comfort and faster coring and the tool can perform both coring and stripping simultaneously, T handle can also be removed allowing the user to attach a drill to make coring even easier
- Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
- Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings
- The tool bevels the outer conductor, chamfers the center conductor, and opens to a center conductor length of 1”
- Center conductor length is adjustable from 1/2" to 1 1/4"
- Total core and strip length is 3.50”
- The coring bit, coring blade, and jacket stripping blade are made from hardened steel for long life
- Includes hex keys for replacing stripping blades and removing the T handle and an instruction manual
Cable Size: .875" (22.23 mm)
DOCUMENTS
Hardline Coring & Stripping Tool Datasheet
SPECIFICATIONS
| Cable Size |
7/8" (.875" or 22.23 mm) |
|---|---|
| Material |
Aluminum |
| Dimensions | 4.33 in x 1.84 in x 8.25 in (11 cm x 4.67 cm x 20.96 cm) |
| Weight | 1.54 lb (699.16 g) |
| UPC # | 810053350614 |
Common Questions About the Jonard Tools HSC 875 Hardline Coring and Stripping Tool
What is the Jonard Tools HSC 875 used for?
The Jonard Tools HSC 875 is used to core and strip 7/8 inch hardline coaxial cables for connector preparation during installation and maintenance.
Who is this tool designed for?
This tool is designed for cable, broadband, and telecommunications technicians working with aerial or underground hardline coax cables in residential, commercial, and industrial environments.
What makes the HSC 875 different from other hardline tools?
The HSC 875 combines coring and stripping in one tool, features a removable ratcheting T handle, and allows optional drill attachment for faster, more efficient hardline cable preparation.
At a Glance
• Hardline coring and stripping tool for 7/8 inch coax cable
• Designed for Times Fiber T10 and CommScope P3 cables
• Performs coring and stripping in a single tool
• Adjustable center conductor length for precise prep
