COPPERHEAD | ViperMag Pipe and Cable Locator | #VIP-MAG

COPPERHEAD | PART #VIP-MAG

ViperMag Pipe and Cable Locator

DESCRIPTION

A combination utility locator and ferrous metal detector designed to locate buried pipes and cables and to detect buried ferrous metal objects such as valve box covers and buried tanks. The one-watt transmitter applies a locate frequency by direct connection or induction. Optional induction clamps can be used to clamp around a line and induce the locate signal onto it.

Metal Detector – Advanced filtering rejects materials such as bottle caps and aluminum cans and zeros in on only ferrous materials. Manual gain control allows it to be controlled and work closely to large metal objects such as automobiles and chain link fences while still detecting targets underground. Will locate through asphalt, concrete and in temporary conditions such as snow.

FEATURES & BENEFITS

•  Active locating frequencies (512 Hz, 8.19 kHz, 83 kHz)
• Passive power locating (60 Hz)
• Conductive or inductive locating
• Ferrous metal detection with advanced filtering and magnetic north/south indicator
• Simple four-button control keypad
• Push-button depth estimation
• High contrast quick responsive display
• Rugged and lightweight ABS plastic and carbon fiber construction
• Optional fault find mode (8 kHz)

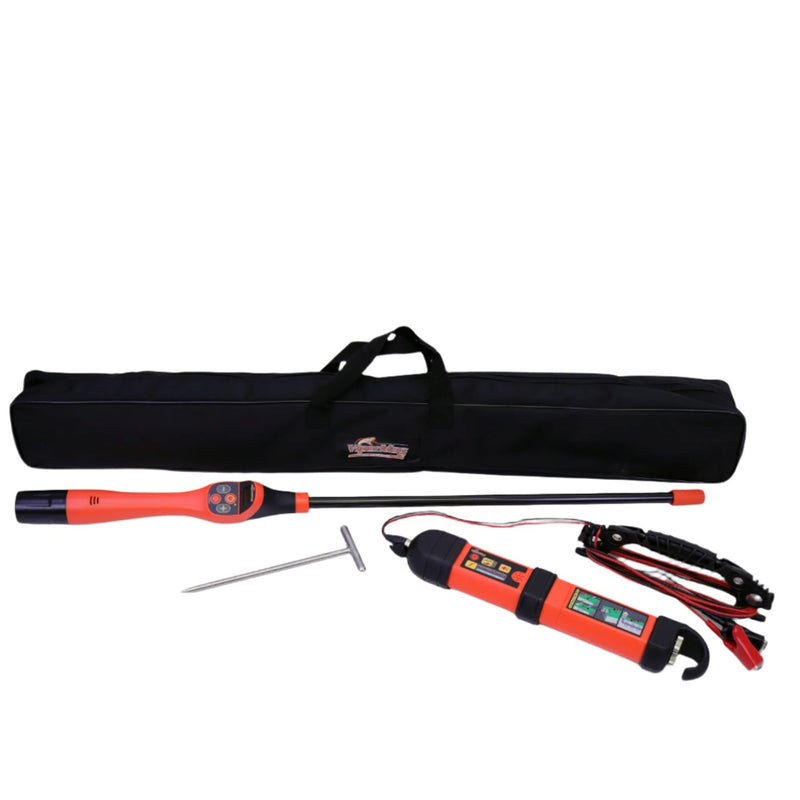

INCLUDES

• receiver
• transmitter
• direct connection cables
• ground stake
• soft sided case
• alkaline batteries
• user guide

Common Questions About the ViperMag Pipe and Cable Locator

What is the ViperMag pipe and cable locator used for

The ViperMag pipe and cable locator is used to locate buried pipes, cables, and ferrous metal objects such as valve box covers and underground tanks.

Can the ViperMag locate both utilities and metal objects

Yes. The ViperMag functions as both a utility locator and a ferrous metal detector, allowing users to locate energized or non energized lines as well as buried iron and steel objects.

How does the ViperMag reduce interference from unwanted metal

The advanced filtering system rejects non ferrous materials like aluminum cans and bottle caps, focusing detection on ferrous metals only.

What locating methods does the ViperMag support

The ViperMag supports direct connection locating, inductive locating, passive power locating at 60 hertz, and optional fault finding mode.

How the ViperMag Supports Underground Locating

The ViperMag pipe and cable locator is designed to deliver accurate underground locating in a wide range of environments. Its combination of active and passive locating modes, ferrous metal detection, and depth estimation helps crews locate utilities and buried metal with confidence, even through asphalt, concrete, or snow.

At a Glance

• Pipe and cable locator with built in ferrous metal detection
• Active and passive locating frequencies
• Rejects non ferrous debris for accurate metal detection
• Push button depth estimation
• Rugged lightweight construction for field use
