GMP | Accelair 3 Fiber Cable Blowing Machine | #GMP89601
Accelair 3 Cable Blowing Machine (89601)
IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE
Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please include the following information for faster processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
- Configurations (see below):
DESCRIPTION
Designed to suit the smaller end of fiber range.

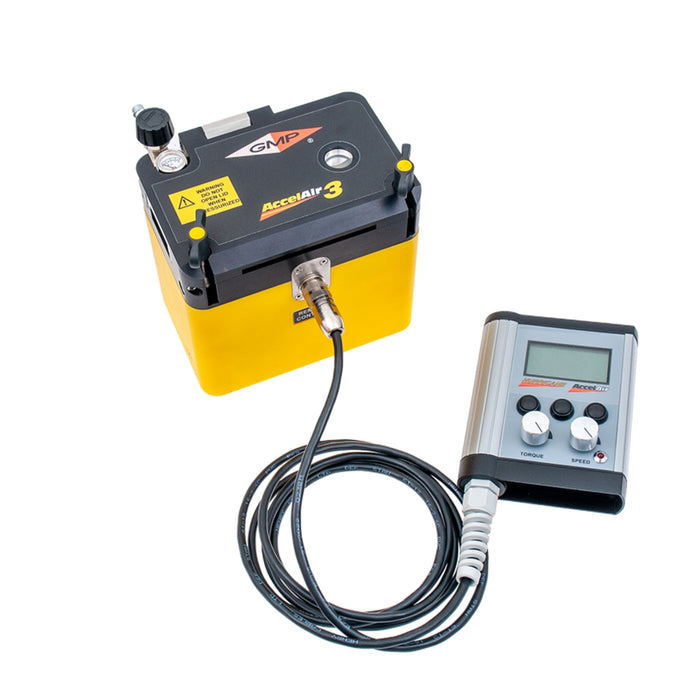

A compact integrated fiber-blowing machine, the AccelAir 3 benefits from full automation and fiber management. Its sophisticated fiber protection is designed to ensure that the blown fiber’s mechanical and optical integrity is maintained. The machine is self-contained and only requires a single electrical supply and compressed air to operate.
FEATURES
-
Installs cable diameters of 0.8–1.6 mm with buckle protection and 1.7–5 mm without buckle protection
-
Accommodates microduct sizes of 3–12 mm
-
Powered directly by the supplied 120/240v to 30V universal power supply
-
Lightweight, durable construction with precision machined parts
-
Single person operation for fast and efficient fiber blowing
-
Digital cable speed and length monitoring
-
Integral air valve and pressure gauge
-
Low maintenance design
-
Durable carrying case included
WHAT'S INCLUDED WITH YOUR WHISPER
- AccelAir 3 Fiber Blower / Cable Blowing Machine
- Remote Control
- Buckle (w/5 shuttles) or blowing plate for (1) cable size of your choice
- Infeed guide for cable size of your choice
- Tube clamp and 5 seals for (1) tube size of your choice
- Toolkit
- Heavy-duty weatherproof case
- Manual
SPECIFICATIONS
- Cable Diameter: .8 to 5 mm
- Tube Size (Outside Dia): 3 to 12mm
- Cable Speed (Adjustable): 0-328 ft/min (0-100m/min) without buckle detection, 0-164 ft/min (0-50 m/min) with buckle detection
- Max Air Pressure: 220 psi (15 Bar) 8.5 cfm (.24 m/min)
- Power Requirement: 120/220v power supply or optional 24v battery pack
- Width: 7.2 in. (184 mm)
- Length: 6.5 in. (166 mm)
- Height: 8.5 in. (216mm)
- Weight: 6.6 lbs (3 kgs)
