Ground Fault Locator | #GFL3000

ARMADA | Ground Fault Locator | #GFL3000

by Armada
$1,199.00 - $1,199.00
$1,199.00
$1,199.00 - $1,199.00
$1,199.00

ARMADA TECHNOLOGIES | PART #GFL3000

Ground Fault Locator

DESCRIPTION

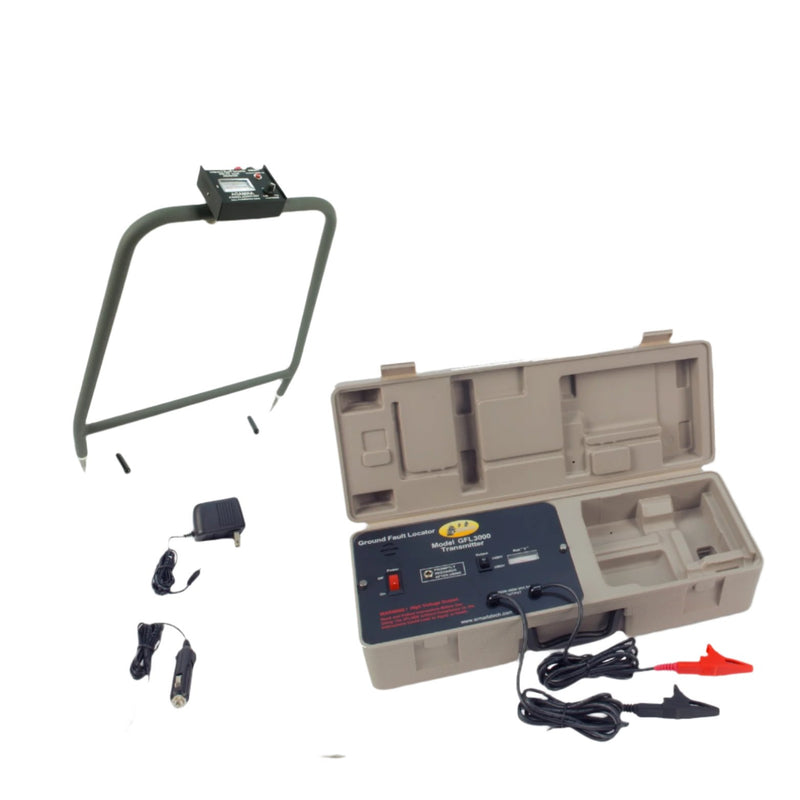

The GFL3000™ is designed to pinpoint nicks or cuts in underground cables or wires where voltage is leaking to ground.  The GFL3000™ transmits a powerful pulsed charge that is detected by the receiver at the top of the A-Frame. The receiver has an analog meter that kicks in the direction of ground faults. Following these kicks will quickly lead you to the exact location where electrical voltage is being lost to ground.

Fantastic Value

The GFL3000™ is a low cost ground fault locator with features previously unavailable at this price point. It has dual power capability, which allows the user to select the resistance level of the fault they wish to pursue, along with easy to read battery condition indicators. In addition, the transmitter features a 12 volt rechargeable battery with both wall and car chargers included.  All of this comes in a durable, custom molded case.

Specifications:

  • Transmitter Battery – 12 V Rechargeable (Included)
  • Receiver Battery – 9 V Alkaline NEDA (Not Included)
  • Power Output – 2400 or 3400 VDC – Selectable
  • Voltage Protection – 240 VAC/400 VDC
  • Transmitter Weight – 9 lbs
  • A-Frame Weight – 4 lbs
  • Warranty – 12 Months

Ground Fault Locator Operating Instructions

Common Questions About the GFL3000 Ground Fault Locator

What is the GFL3000 ground fault locator used for

The GFL3000 ground fault locator is used to pinpoint underground cable or wire faults where electrical voltage is leaking to ground due to cuts, nicks, or insulation damage.

How does the GFL3000 locate ground faults

The GFL3000 transmits a pulsed electrical charge that is detected by the A frame receiver. The analog meter indicates the direction of the fault, guiding the user directly to the location of voltage loss.

What types of cables can the GFL3000 be used on

The GFL3000 is commonly used on underground electrical, irrigation, telecom, and low voltage wiring where ground faults need to be precisely located.

What makes the GFL3000 a cost effective ground fault locator

The GFL3000 offers selectable output power levels, dual power capability, and rechargeable battery operation, providing advanced fault locating features at a lower price point.

How the GFL3000 Supports Underground Fault Detection

The GFL3000 ground fault locator is designed to simplify the process of finding underground faults without unnecessary excavation. Its directional A frame receiver and selectable power output help technicians quickly and accurately locate the exact point where voltage is escaping to ground.

At a Glance

• Ground fault locator for underground cable and wire faults
• Pinpoints voltage leakage caused by cuts or insulation damage
• A frame receiver with analog directional meter
• Selectable power output with rechargeable transmitter
• Durable case for field use
