Graphical TDR & Cable Fault Finder
DESCRIPTION

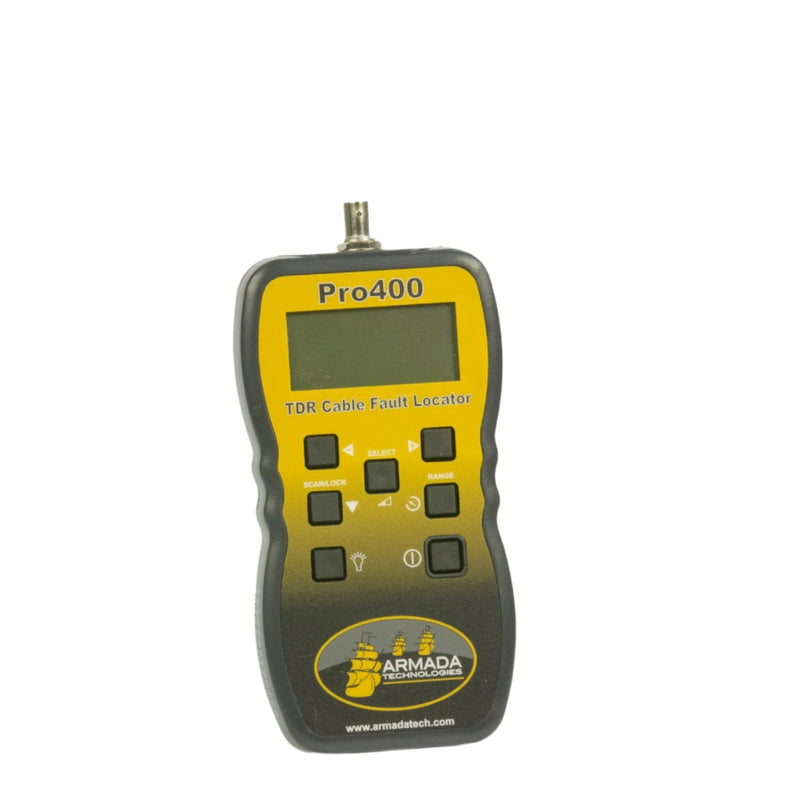

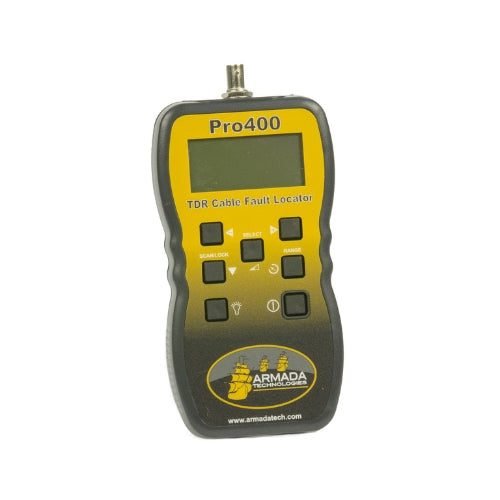

The Pro400™ Graphical TDR is a great tool for locating faults in metallic cables with 2 conductors. Twisted pair, coax, LAN cabling, etc. are simple to test for distances to shorts, opens, etc. By connecting the leads to the cable to test, a graphical display quickly and easily shows faults and events on that cable. In addition, the Pro400™ transmits a standard analog tracing tone for use with common tone probes to find the termination point of a cable.
Features of the Pro400™ include backlit display, auto-off, calibration of VOP from 20 to 99%, 4 cable impedance level options, a virtually zero dead zone, and IP54 water/dust protection. The Pro400™ is truly a big bang for the buck.
HIGHLIGHTS
- Identifies Cable Lengths and Faults up to 3,000 feet.
- Operates with 50, 75, or 100 ohm Cables.
- Adjustable display range and gain.
- Transmits Tracing Tone.
- Small (2 Foot) ‘Dead Zone’.
- Compact and Lightweight (less than 1 pound).
- Weather and Dust Tight to IP54 Standard.
- Backlit LCD Display with 3-Minute Automatic Off.

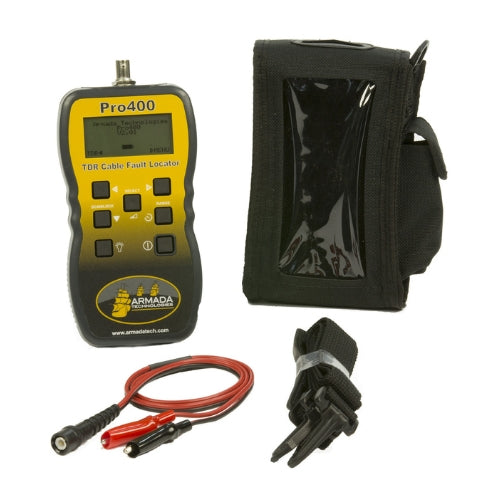

INCLUDES
- Warranty: 12 Months from date of purchase
- TDR unit,
- Test Leads
- Carrying Case,
- Four (4) ‘AA’ Batteries
- Manual
Handheld Graphical TDR Cable Fault Finder Operating Instructions
Common Questions About the Pro400 Graphical TDR and Cable Fault Finder
What is the Pro400 Graphical TDR used for
The Pro400 Graphical TDR is used to locate faults, measure cable length, and identify opens or shorts in metallic cables such as twisted pair, coax, and LAN cabling.
What types of cables can the Pro400 test
The Pro400 operates with 50, 75, and 100 ohm metallic cables, making it suitable for telecom, data, and coaxial cable testing applications.
How far can the Pro400 locate cable faults
The Pro400 can identify cable lengths and faults up to 3,000 feet, allowing technicians to quickly pinpoint issues without cutting or disconnecting cables.
Does the Pro400 work with tone probes
Yes. The Pro400 transmits a standard analog tracing tone that can be used with common tone probes to help locate the termination point of a cable.
How the Pro400 Supports Cable Testing and Troubleshooting
The Pro400 Graphical TDR is designed to simplify cable troubleshooting in the field. Its graphical display provides a clear visual of cable events, while adjustable gain and display range help technicians accurately locate faults even in challenging environments.
At a Glance
• Graphical TDR for locating faults in metallic cables
• Tests twisted pair, coax, and LAN cabling
• Identifies faults and cable lengths up to 3,000 feet
• Transmits tracing tone for use with tone probes
• Compact, lightweight design with IP54 water and dust protection
