ARMADA | Advanced Tone & Filter Probe Kit | #PRO220K

ARMADA TECHNOLOGIES | PART #PRO220K

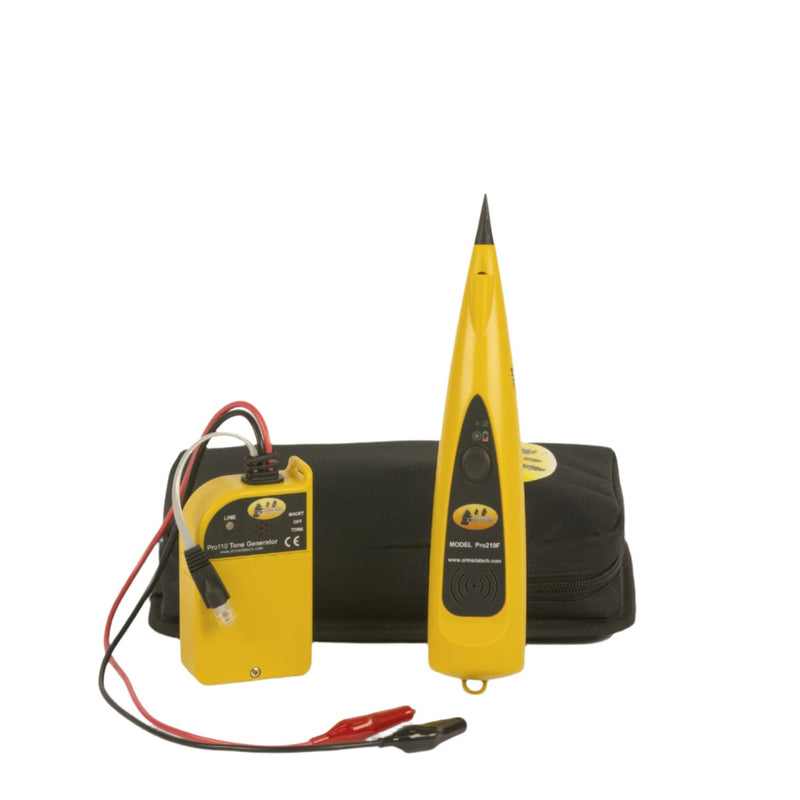

Advanced Tone and Filter Probe Kit

DESCRIPTION

The Pro220K™ Advanced AC Filtered Tone and Probe kit is designed to help contractors easily identify the termination point of any wire. The Pro220K™ Advanced Tone and Probe Kit pinpoints where a particular wire or cable terminates at the far end of the cable.

Cutting edge technology including:

• LED Probe Headlight for Dark Areas.
• AC Noise Rejection Filter to Greatly Reduce Buzzing and Humming from Electrical Sources.
• Metal/Plastic Combination Tip to Give Maximum Response but Still Protect Sensitive Hardware.
• AA Battery Power Lasts for 250+ Hours of Operation.

How Does the Pro220K™ Advanced AC Filtered Tone and Probe Kit Work?

• The tone generator Model Pro110™ is connected to a wire at one end using the attached alligator clips or RJ11 plug and activated.
• The tone probe Model Pro210F™ Advanced Filter Tone Probe is then taken to the other end of the wire, activated and used to locate the beep-beep-beep signal of the Pro110™.
• The wire making the loudest signal is the one connected to the tone generator, and therefore that particular wire’s termination point is identified.

Pro220K Advanced Tone and Probe Kit Operating Instructions

Common Questions About the Pro220K Advanced Tone and Filter Probe Kit

What is the Pro220K tone and probe kit used for

The Pro220K advanced tone and probe kit is used to identify, trace, and locate the termination point of wires and cables in electrical, telecom, and low voltage systems.

How does the Pro220K locate wire termination points

The Pro220K sends a tone signal through the wire using the tone generator. The probe is then used at the far end to detect the strongest signal, identifying the correct wire and its termination point.

What makes the Pro220K different from basic tone and probe kits

The Pro220K includes AC noise rejection filtering to reduce buzzing and electrical interference, making it easier to locate signals in noisy environments.

Does the Pro220K include features for dark or tight spaces

Yes. The probe includes an LED headlight and a combination metal and plastic tip to improve visibility and sensitivity while protecting sensitive components.

How the Pro220K Supports Wire Identification and Troubleshooting

The Pro220K advanced tone and filter probe kit is designed to simplify wire tracing and identification. Its AC noise filtering, long battery life, and high sensitivity probe help contractors accurately locate cable terminations without unnecessary guesswork.

At a Glance

• Advanced tone and probe kit for wire identification
• Locates cable termination points accurately
• AC noise filtering reduces interference
• High sensitivity probe with LED headlight
• Long battery life using common AA batteries
