DESCRIPTION

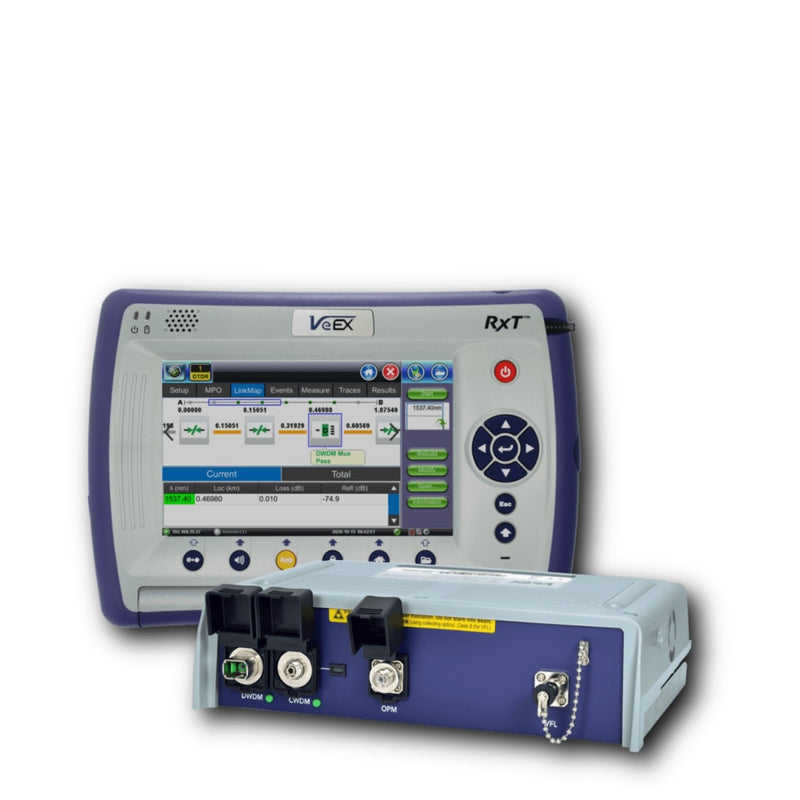

The new RXT-4113+ is our latest generation xWDM OTDR module. Users can now select CWDM, DWDM, combo CWDM+DWDM or DWDM+Legacy optical configurations. Advanced hardware and powerful software supports the testing of both xWDM, Grey optics and single stage PON network architectures. Precise wavelength tuning, 3 cm resolution and up to 500,000 data points offers unprecedented network characterization.

SOFTWARE

• Advanced software architecture supports multiple test applications
• VeExpress™ Cloud or Enterprise versions to maintain instrument firmware and manage test options or inventory
• EZ Remote software for flexible remote control and software upgrade
• Fiberizer® Desktop+ PC software for advanced trace analysis and report generation
• Fiberizer Cloud trace analysis and data management
• VeSion® R-server compatibility for centralized work force management and test results repository
• Optional fiber inspection scope (USB) with single or multi-fiber (MPO/MTP®) support

HARDWARE

• High resolution, 7” full color TFT touch-screen viewable in any lighting condition
• Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth®, or 3G/LTE for back office applications
• Intelligent fan operation with built-in temperature sensor
• Interchangeable Li-ion battery pack for extended test time
• USB-A Interface for USB flash drives, USB wireless dongles and fiber inspection probe connection
• Optional built-in GPS module for Geotagging OTDR traces

OPTICAL

• CWDM wavelengths per ITU-T G.694.2 (8, 10, or 18 channels)
• DWDM wavelengths per ITU-T G.694.1 (C-band, 1529.55 to 1563.86 nm, Channel #s 17-60) in 50, 100 or 200 GHz steps
• Optional extended channel 14-62 available
• TEC laser stabilization for hot and cold weather conditions
• Built-in DWDM wavelength locker with ±2.5 GHz stability
• Legacy wavelengths include 1310, 1550 and 1625 live testing
• Sampling resolution up to 500,000 points
• Event dead zone <0.85 m, attenuation dead zone <3.5 m
• High dynamic range for long haul fibers and testing through xWDM Mux/demux
• Telcordia GR-196 and SR-4731.sor file formats
• Optional V-Scout mode – Smart Link Mapping using intuitive icons derived from multiple test acquisitions
• Optional CWDM/DWDM/Legacy Light Source via OTDR port
• Optional broadband Optical Power Meter
• Optional VFL 650 nm light source
• Built-in G.657A2 launch fiber to characterize OTDR connections and short fiber spans
• Fixed connector or universal 2.5 mm optical interface with inter-changeable optical adaptors (SC/FC/LC)

RXT-4113+ xWDM OTDR Series Modules Datasheet

SPECIFICATIONS
